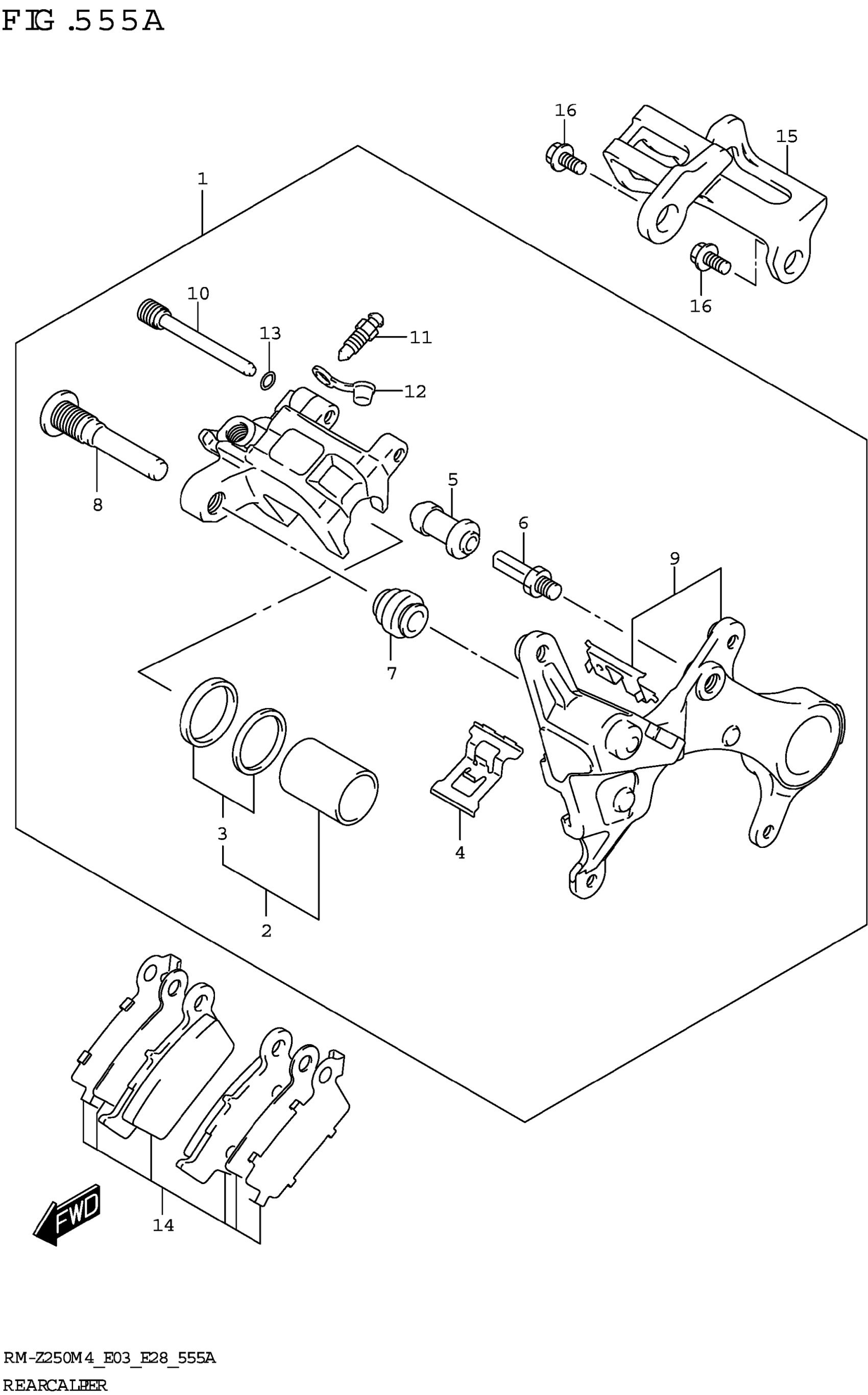

Suzuki RM-Z250M4 (2024) REAR CALIPER Diagram

#

Description
Price

1

CALIPER ASSY,RR

69100-28H01-999

$500.10

2

.PISTON SET

69100-14820

$38.97

3

..SEAL SET,PISTON

69100-21840

$15.35

4

.SPRING,PAD

69315-35G00

$13.40

5

.BOOT

59386-13A00

$7.28

6

.PIN

59382-14500

$8.43

7

.BOOT

59303-14500

$5.06

8

.PIN,BOLT

59305-36E00

$17.14

9

.BRACKET,RR CALIPER

69350-28H00

$183.23

10

.PIN,HANGER

69345-37F00

$23.37

11

.BLEEDER

59121-01A00

$7.99

12

.CAP,BLEEDER

59122-01A00

$3.97

13

.RING,STOPPER

59145-37F00

$6.30

14

PAD & SHIM SET

69100-28820

$70.05

15

GUARD,RR CALIPER

69725-37F11

$26.62

16

BOLT (6X12)

09116-06197

$2.80
