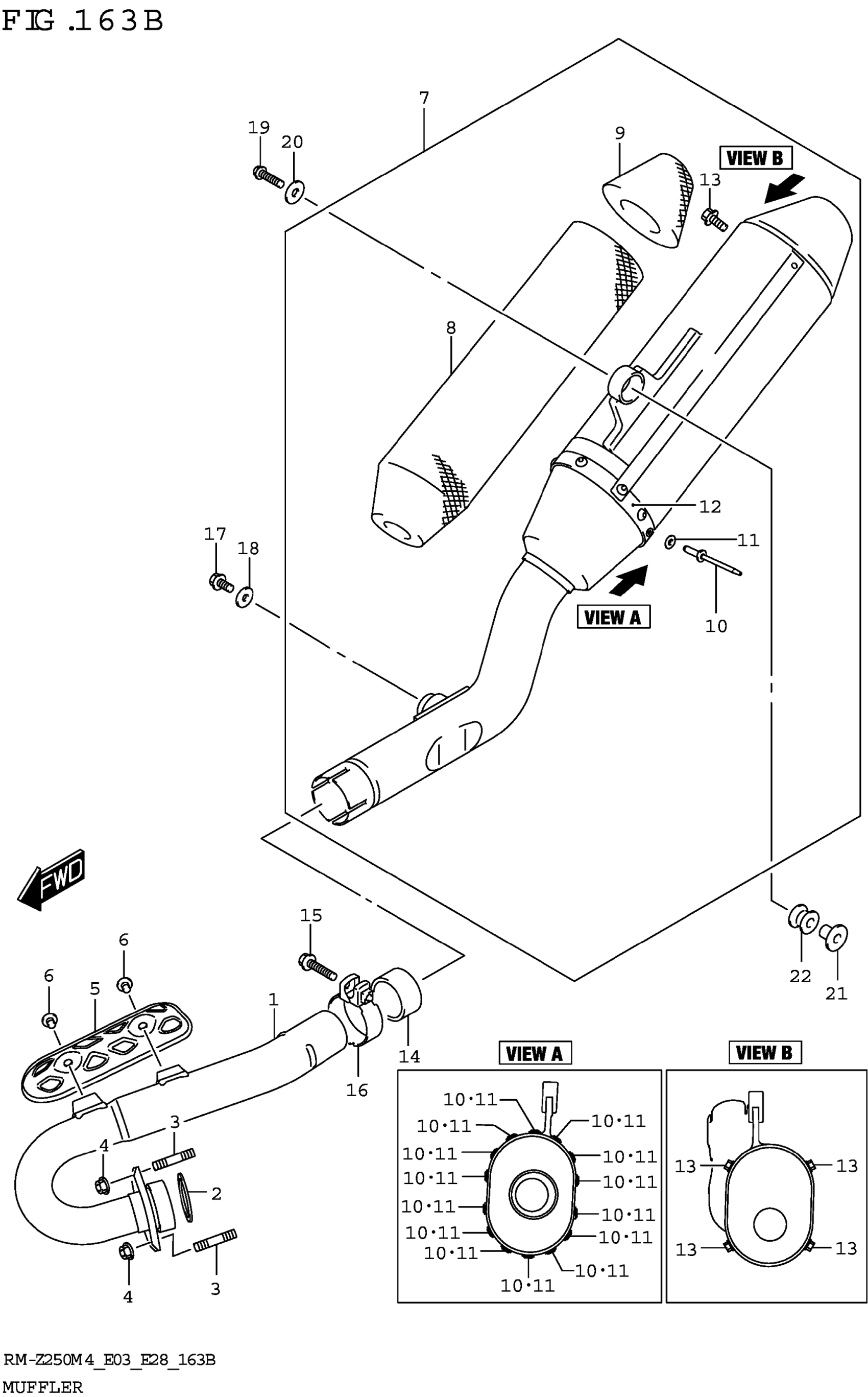

Suzuki RM-Z250M4 (2024) MUFFLER Diagram

#

Description
Price

1

PIPE,EXHAUST

14150-46K00

$284.90

2

.GASKET,EXHAUST PIPE

14181-49H00

$10.98

3

BOLT,STUD

01421-0816A

$1.78

4

NUT

09159-08144

$14.80

5

COVER,EXHAUST PIPE

14186-49H10

$49.42

6

BOLT (6X8)

09139-06178

$4.72

7

BODY,MUFFLER

14310-46K10

$895.68

8

.SILENCER,MUF

14351-46K00

$262.98

9

.GLASS WOOL,MUF TAIL

14355-49H00

$25.25

10

.RIVET,MUFFLER

14454-28H00

Unavailable

11

.WASHER

14456-28H00

$1.70

12

.BAND,FR

14781-35G10

$8.40

13

BOLT

01547-0612A

$2.03

14

CONNECTOR,MUF

14771-42F10

$23.13

15

BOLT (8X35)

09103-08391

$2.50

16

CLAMP,CONNECTOR

14459-28H00

$36.80

17

BOLT (8X20)

09103-08426

$4.60

18

WASHER (8X20X1)

09160-08103

$3.48

19

BOLT (8X35)

09103-08391

$2.50

20

WASHER (8.5X26X1.6)

09160-08151

$1.99

21

SPACER (8.6X12X18.5)

09180-08157

$7.12

22

CUSHION

09320-12043

$7.98
