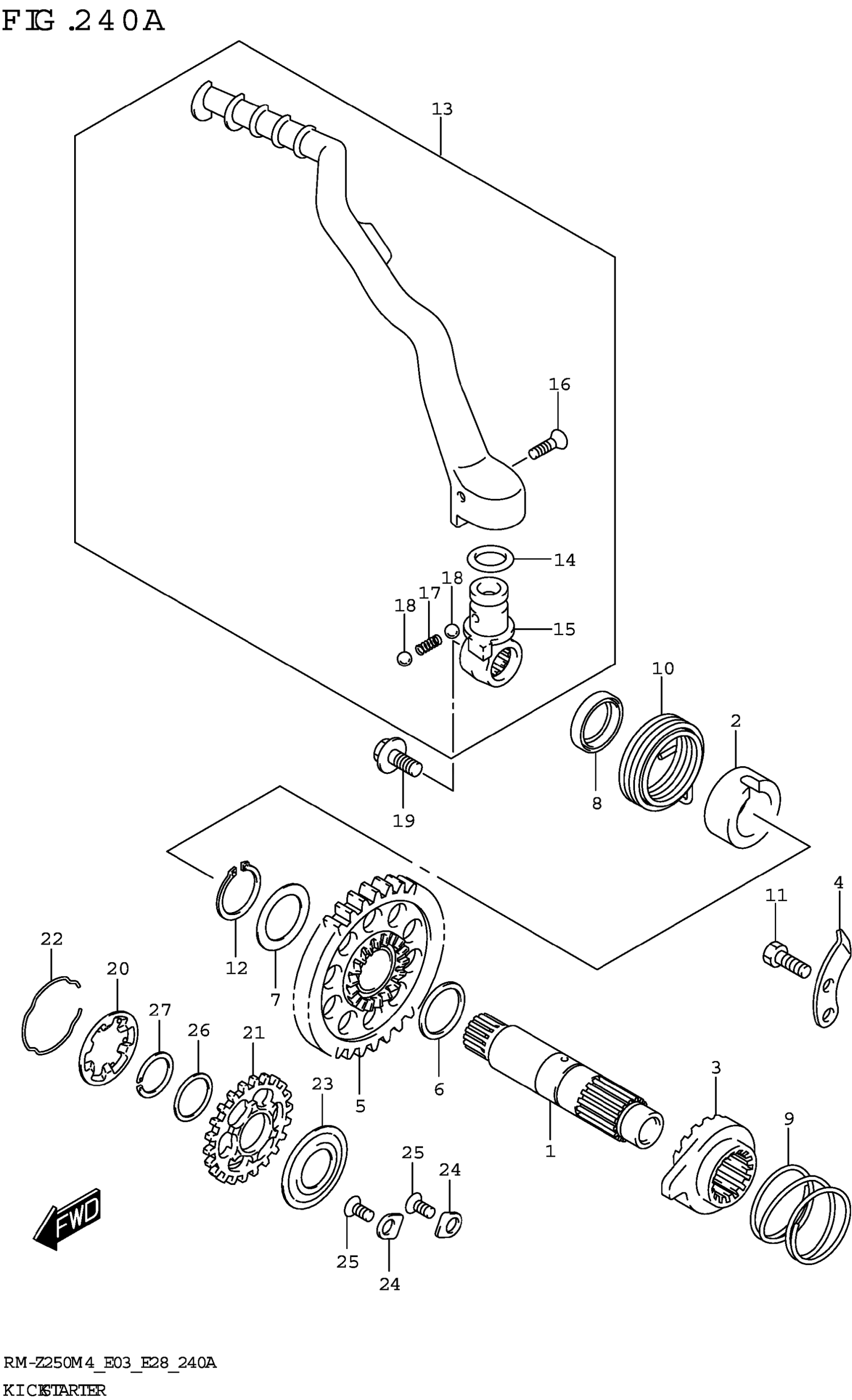

Suzuki RM-Z250M4 (2024) KICK STARTER Diagram

#

Description
Price

1

SHAFT,KICK STARTER

26211-46K00

$102.12

2

GUIDE,KICK STARTER SFT SPRING

26221-49H00

$14.80

3

STARTER,KICK

26231-10H00

$65.23

4

GUIDE,KICK STARTER

26232-49H00

$8.42

5

GEAR,KICK STARTER DRIVE (NT:3 | )

26240-49H00

$103.30

6

SHIM (18X22X1)

09181-18004

$3.72

7

SHIM (18X26X0.5)

09181-18005

$3.72

8

OIL SEAL (18X30X8)

09283-18004

$5.24

9

SPRING

09440-31002

$2.22

10

SPRING

09448-45014

$10.49

11

BOLT

01500-0612A

$1.78

12

CIRCLIP

08331-3118A

$2.13

13

LEVER ASSY,KICK STARTER

26300-46K01

$213.13

14

.O-RING

26313-28E21

$2.17

15

.JOINT,KICK STARTER LEVER

26331-49H00

$45.43

16

.SCREW (6X27.5)

09127-06024

$4.10

17

.SPRING

09440-05031

$1.49

18

BALL

06111-07004

$1.49

19

BOLT (8X14)

09103-08522

$4.17

20

CAP,BREATHER GEAR

11335-28H00

$12.08

21

GEAR,BREATHER (NT:22)

11337-49H00

$95.48

22

CIRCLIP,BREATHER CAP

11338-28H00

$6.82

23

PLATE,BREATHER GEAR

11339-28H00

$6.33

24

RETAINER

24741-20A00

$2.81

25

SCREW (6X12)

09126-06011

$2.03

26

SHIM (22X28X0.5)

09181-22130

$3.40

27

CIRCLIP

09380-22006

$3.10
