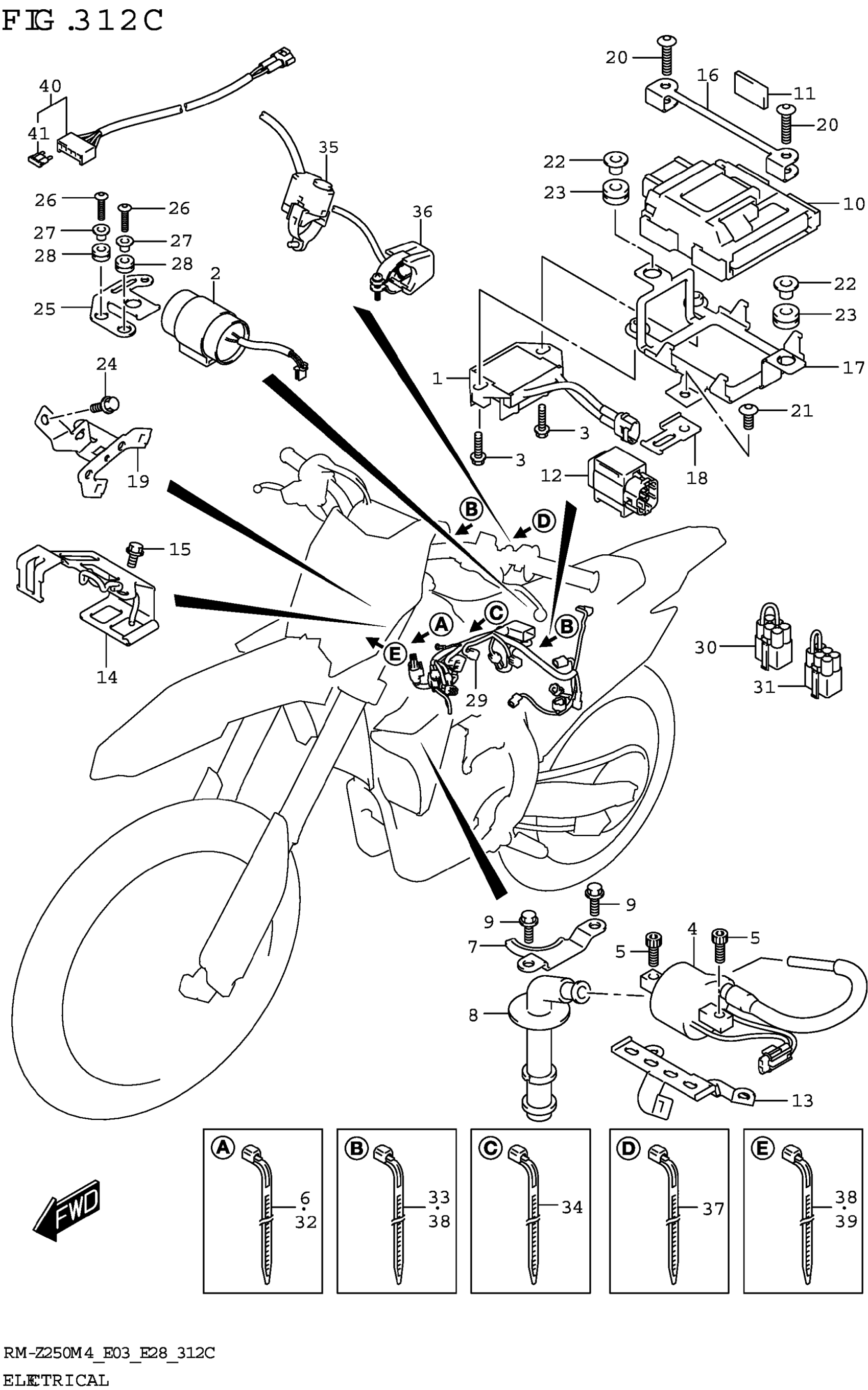

Suzuki RM-Z250M4 (2024) ELECTRICAL (E28) Diagram

#

Description
Price

1

RECTIFIER ASSY

32800-28H00

$235.75

2

CONDENSER ASSY

33640-28H00

$157.50

3

BOLT

01547-0620A

$2.03

4

COIL ASSY,IGNITION

33410-28H00

$98.96

5

BOLT

09106-06141

$2.97

6

CLAMP (L:100)

09407-10404

$2.90

7

RETAINER,IGNITION COIL

33414-49H00

$10.80

8

CAP ASSY,SPARK PLUG

33510-49H00

$56.85

9

BOLT

01550-0610B

$2.42

10

CONTROL UNIT,FI

32920-46K01

$653.62

11

CUSHION

32980-37K00

$3.85

12

SENSOR ASSY,FUEL CUT

33960-06G10

$89.92

13

BRACKET,COUPLER

36672-46K30

$15.48

14

BRACKET,COUPLER

58620-46K00

$25.95

15

BOLT

01547-0612A

$2.03

16

BRACKET,FI CONTROL UNIT UPPER

32931-37K00

$38.22

17

BRACKET,FI CONTROL UNIT LOWER

32932-37K00

$62.30

18

BRACKET,FUEL CUT SENSOR

33961-46K00

$8.05

19

BRACKET,COUPLER NO.2

36670-46K10

$18.58

20

BOLT (6X25)

09139-06196

$2.28

21

SCREW (6X12)

09139-06215

$2.72

22

SPACER (6.2X8.4X10.9)

09180-06331

$4.77

23

CUSHION (8X18X10)

09320-08501

$3.23

24

BOLT

01547-0610A

$2.45

25

BRACKET,CONDENSER

47425-46K00

$49.23

26

BOLT (6X30)

09139-06207

Unavailable

27

SPACER (6.2X8.4X10.9)

09180-06331

$4.77

28

CUSHION

09320-08519

$2.56

29

HARNESS,WIRING

36610-46K01

$387.12

30

WIRE,SHORT

36852-28H01

$13.57

31

WIRE,SHORT

36852-49H01

$11.48

32

CLAMP (L:145)

09407-14407

$3.57

33

CLAMP (L:125)

09407-14403

$2.26

34

CLAMP (L:145)

09407-14407

$3.57

35

SWITCH ASSY,LAUNCH CONTROL

37820-37K00

$133.07

36

SWITCH ASSY,ENGINE STOP

37820-46K00

$45.50

37

CLAMP (L:95)

09407-11401

$2.63

38

CLAMP (L:125)

09407-14403

$2.26

39

CLAMP (L:170)

09407-17403

$4.91

40

WIRE,BATTERY | OPT

36890-28H00

$47.33

41

.FUSE (10A) | OPT

09481-10101

$2.07
