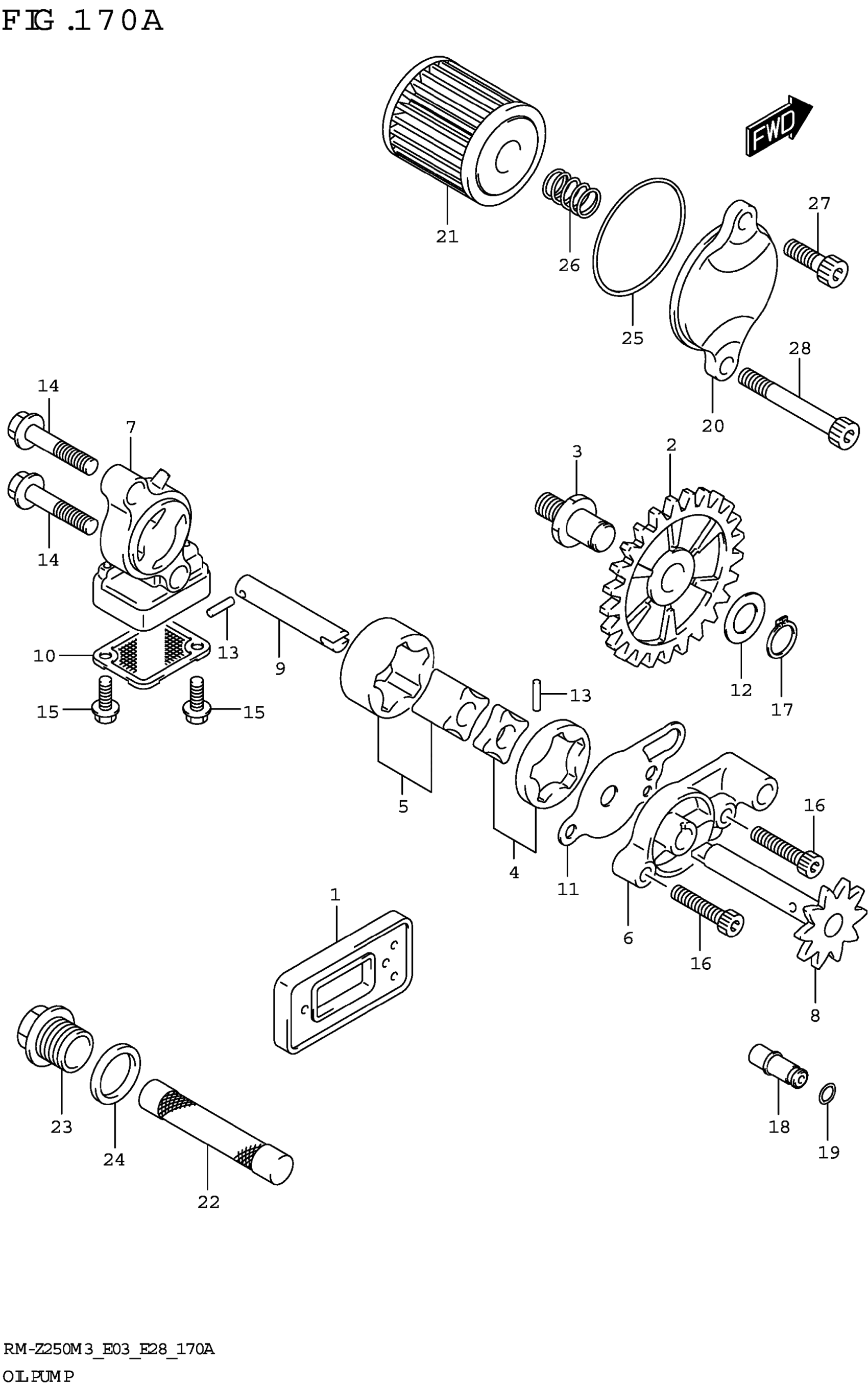

Suzuki RM-Z250M3 (2023) OIL PUMP Diagram

#

Description
Price

1

VALVE ASSY,OIL REED

13150-28H10

$41.60

2

GEAR,OIL PUMP IDLE (NT:25)

16321-49H00

$67.04

3

SHAFT,OIL PUMP IDLE GEAR

16322-49H00

$47.02

4

ROTOR SET,OIL PUMP NO.1

16410-49H00

$34.73

5

ROTOR SET,OIL PUMP

16410-45G10

$50.77

6

COVER,OIL PUMP NO.1

16430-49H10

$41.22

7

COVER,OIL PUMP NO.2

16433-49H20

$71.50

8

SHAFT,OIL PUMP DRN GEAR

16440-49H10

$52.83

9

SHAFT,OIL PUMP NO.2

16443-46K00

$19.75

10

STRAINER,OIL PUMP NO.2

16530-49H00

$9.92

11

PLATE,OIL PUMP

16432-49H00

$5.45

12

SHIM (10X18X0.5)

09181-10158

$1.97

13

PIN (2.5X11.8)

09261-02008

$1.65

14

BOLT

01547-0635A

$2.30

15

BOLT

07120-0512A

$2.28

16

BOLT

07130-0520A

$2.22

17

CIRCLIP

08331-31109

$1.78

18

VALVE ASSY,OIL RELIEF

16440-28H00

$74.08

19

O-RING (D:1.2,ID:4.7)

09280-05007

$1.92

20

CAP,ENG OIL FILTER OUTER

16315-35G40

$22.52

21

FILTER ASSY,ENG OIL

16510-35G00

$10.13

22

STRAINER,ENGINE OIL

16520-10H10

$45.89

23

CAP,ENG OIL STRAINER

16316-10H01

$22.29

24

GASKET (16X22X2)

09168-16002

$1.91

25

O-RING (D:2,ID:38.5)

09280-39002

$3.16

26

SPRING

09440-10038

$3.10

27

BOLT

01547-0616A

$2.03

28

BOLT

01547-0635A

$2.30
