2023 Suzuki RM-Z250M3 Gasket SET Diagram

← All diagrams

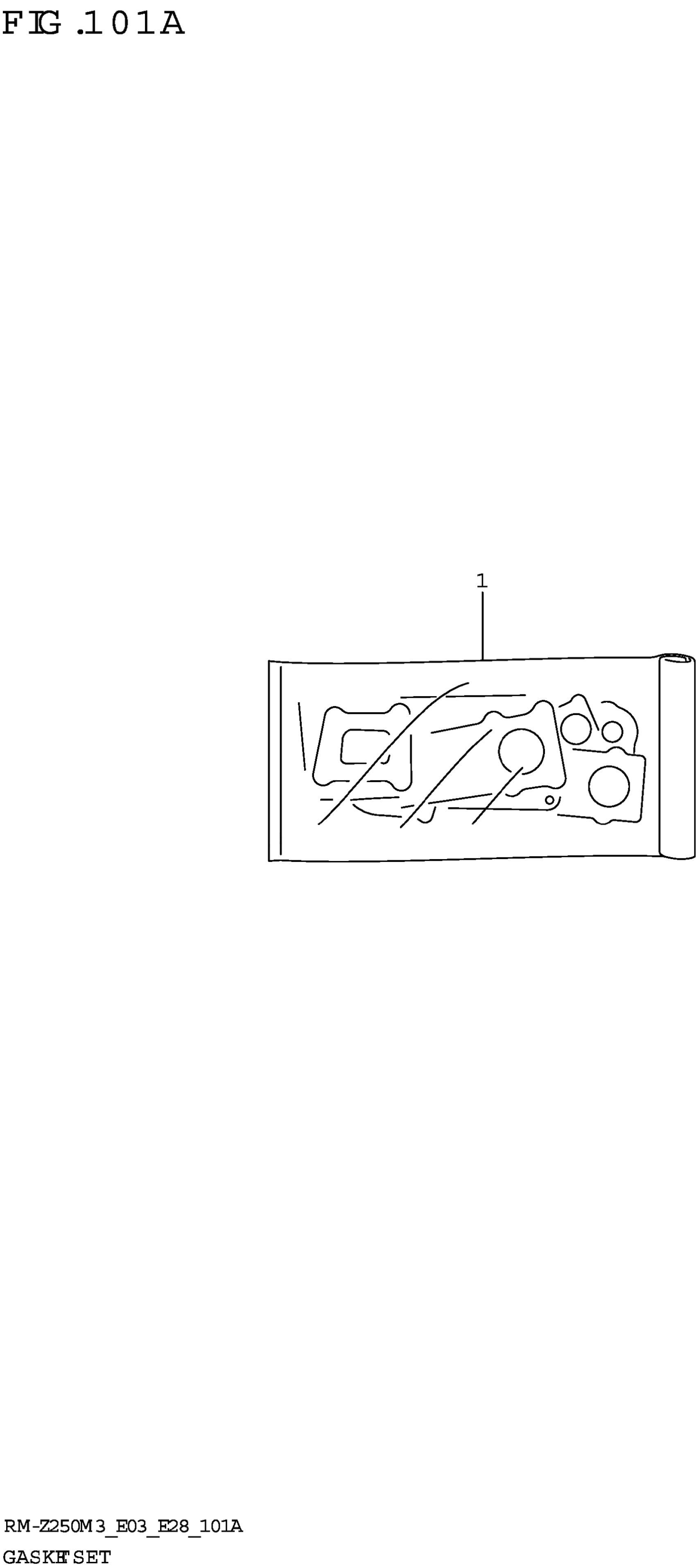

Find the part on the Gasket SET diagram for your 2023 Suzuki RM-Z250M3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2023 Suzuki RM-Z250M3 Gasket SET Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GASKET SET | OPT

11404-49810

1
Out of stock

2

.GASKET,CYLINDER HEAD | NOT ILLUSTRATED

11141-49H00

1
Out of stock

3

.GASKET,CYL HEAD COVER NO.1 | NOT ILLUSTRATED

11173-49H10

1
Out of stock

4

.GASKET,CYL HEAD COVER NO.2 | NOT ILLUSTRATED

11178-49H00

1
Out of stock

5

WASHER,CYL HEAD COVER (10.6X2 | NOT ILLUSTRATED

11191-27E00

2
Out of stock

6

.GASKET,CYLINDER | NOT ILLUSTRATED

11241-49H10

1
Out of stock

7

.GASKET,CRANKCASE | NOT ILLUSTRATED

11481-49H10

1
Out of stock

8

.GASKET,CLUTCH COVER | NOT ILLUSTRATED

11482-49H00

1
Out of stock

9

.GASKET,MAGNETO COVER | NOT ILLUSTRATED

11483-49H00

1
Out of stock

10

.GASKET,CLUTCH COVER OUTER | NOT ILLUSTRATED

11484-10H00

1
Out of stock

11

.GASKET,TENSIONER ADJUSTER | NOT ILLUSTRATED

12837-46K00

1
Out of stock

12

.GASKET,EXHAUST PIPE | NOT ILLUSTRATED

14181-49H00

1
Out of stock

13

.O RING,WATER PUMP CASE | NOT ILLUSTRATED

17431-10H00

1
Out of stock
