Description

Price

1

CRANKSHAFT ASSY

12200-49H20

$390.01

2

.CONNROD

12161-49H10-0B0

$140.40

3

.PIN,CRANK

12210-49H10

$76.23

4

.BEARING (30X38X18)

09263-30060-0B0

$106.40

5

.CRANKSHAFT RH

12220-49H10

$321.35

6

.CRANKSHAFT LH

12261-49H10

$349.47

7

BEARING (30X63X16)

09262-30122

$77.89

8

SEAL,OIL (30X40X7)

09283-30076

$13.82

9

OIL SEAL (30X40X6)

09283-30069

$8.46

10

RETAINER,CRANKSHAFT BEARING

24741-37F00

$5.33

11

SCREW (6X15)

09139-06209

$1.00

12

PISTON

12111-46K00-0F0

$209.70

13

RING SET,PISTON

12140-49810

$50.57

14

PIN,PISTON

12151-49H10

$30.22

15

CIRCLIP (OD:18)

09381-16001

$1.45

16

PISTON KIT

12110-46810

$169.38

17

GEAR,PRIMARY DRIVE (NT:19)

21111-49H00

$107.60

18

NUT

09140-16037

$15.53

19

WASHER

09164-16002

$2.90

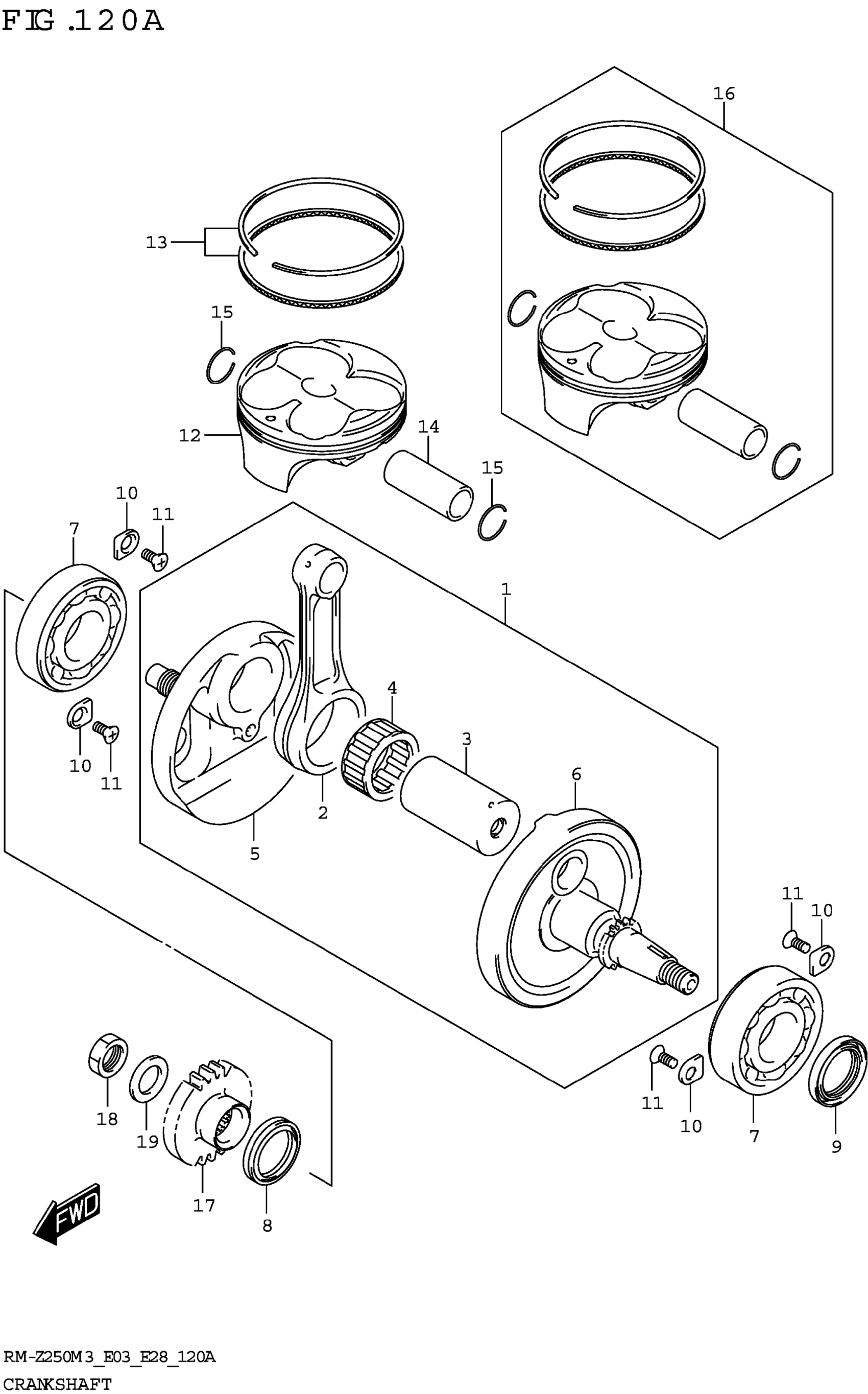

Suzuki RM-Z250M3 (2023) CRANKSHAFT Diagram
