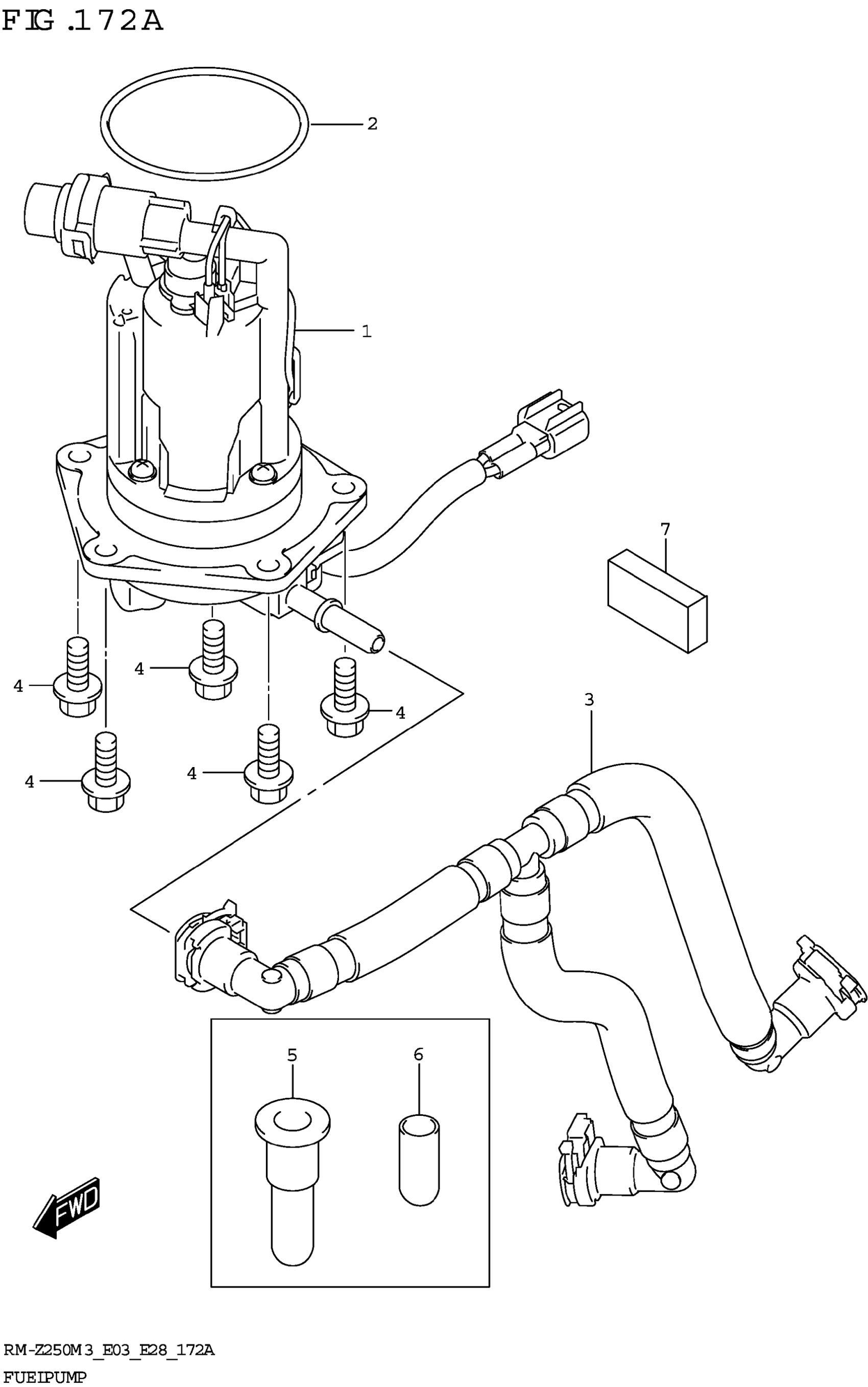

Suzuki RM-Z250M3 (2023) FUEL PUMP Diagram

#

Description

Price

1

PUMP ASSY,FUEL

15100-46K01

$560.35

2

O-RING

15111-28H00

$31.10

3

HOSE,FUEL

15810-46K00

$156.15

4

BOLT

01547-0620A

$2.01

5

CAP,FUEL HOSE

15819-28H00

$5.73

6

CAP,FUEL PUMP

15114-28H00

$5.83

7

CUSHION,FR LEG SHIELD

48116-19K00

$4.28
