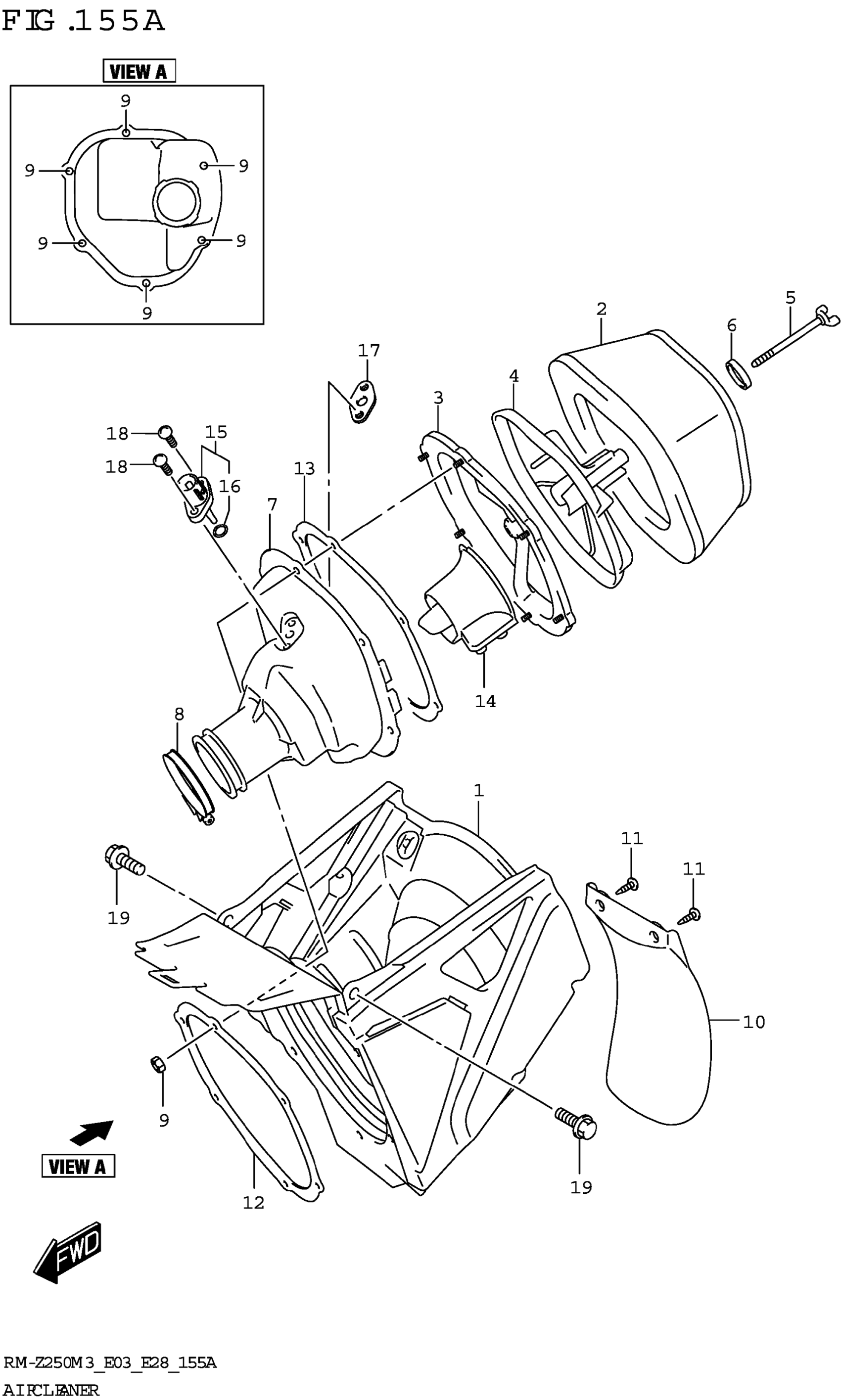

Suzuki RM-Z250M3 (2023) AIR CLEANER Diagram

#

Description
Price

1

CASE,AIR CLEANER

13710-46K00

$238.52

2

.FILTER ASSY

13780-37K00

$69.60

3

.BASE,FILTER

13790-37K00

$29.97

4

.HOLDER,FILTER

13791-37K00

$21.95

5

.BOLT,WING

13831-37F20

$7.38

6

.WASHER

13792-13A01

$3.97

7

TUBE,OUTLET

13881-46K00

$108.22

8

CLAMP

13826-46K00

$11.17

9

NUT

08310-0005A

$1.83

10

.MUD GUARD

13738-36E10

$29.62

11

.SCREW

13831-35F00

$2.51

12

.PLATE,AIR CLEANER

13795-37K00

$19.70

13

.GASKET,BASE FILTER

13796-37K00

$7.42

14

FUNNEL

13882-46K00

$68.72

15

SENSOR,AIR TEMP

13650-14G10

$47.66

16

.O-RING

13655-14G10

$11.18

17

BRACKET,AIR TEMP SENSOR

13652-28H00

$14.00

18

.SCREW

02112-0516A

$1.45

19

BOLT (6X16)

09111-06251

$2.62
