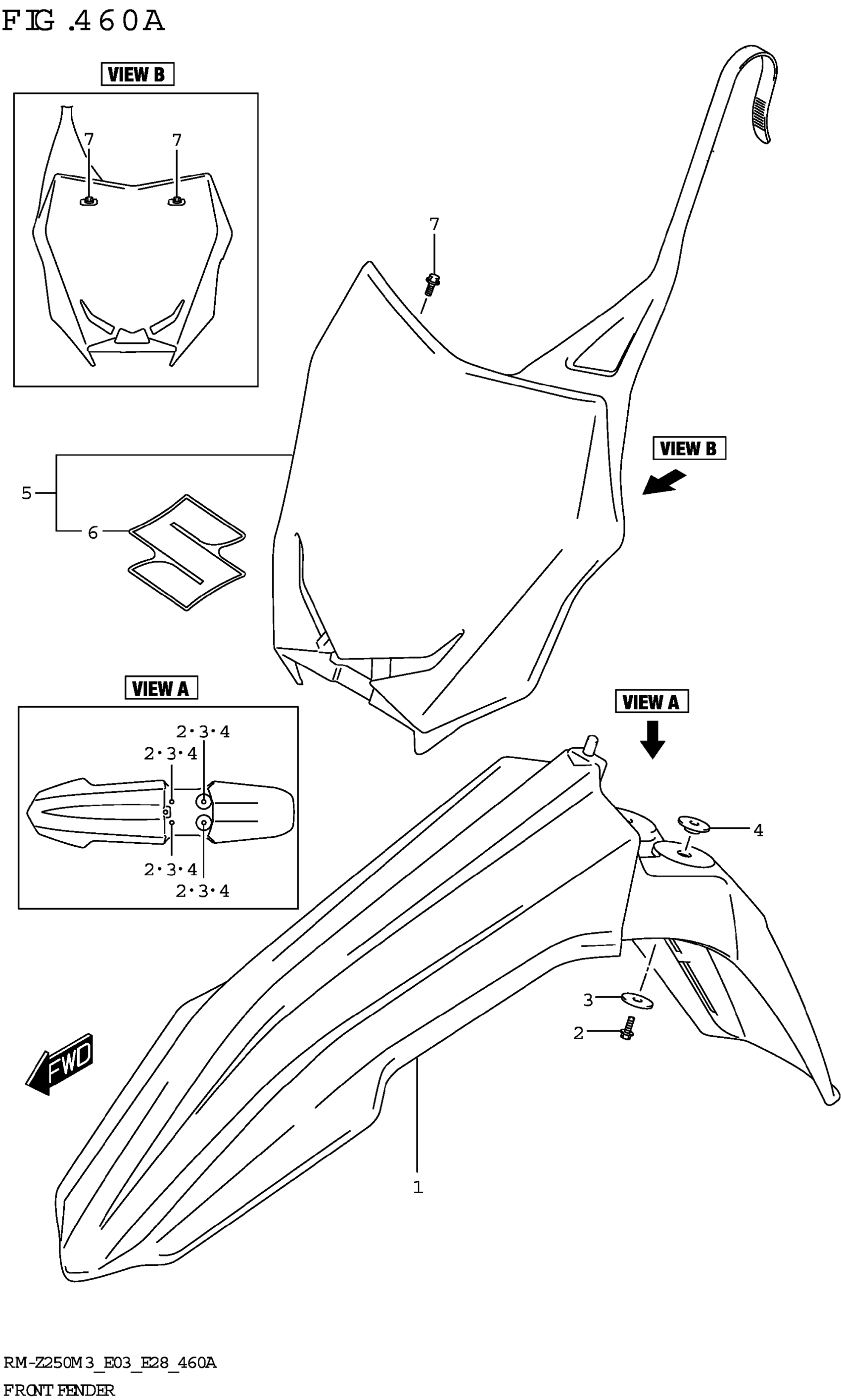

Suzuki RM-Z250M3 (2023) FRONT FENDER Diagram

#

Description

Price

1

FENDER,FRONT (YELLOW)

53111-37K00-YU1

$83.68

2

BOLT

01547-0616A

$2.03

3

WASHER (6.3X28X2)

44135-35G00

$11.36

4

WASHER

09169-06078

$3.55

5

PLATE,NUMBER FRONT (WHITE)

94910-37K00-30H

$38.20

6

EMBLEM, S (ORANGE)

68641-43EK0-YCF

$13.28

7

BOLT (6X12)

09116-06197

$2.71
