Partiron

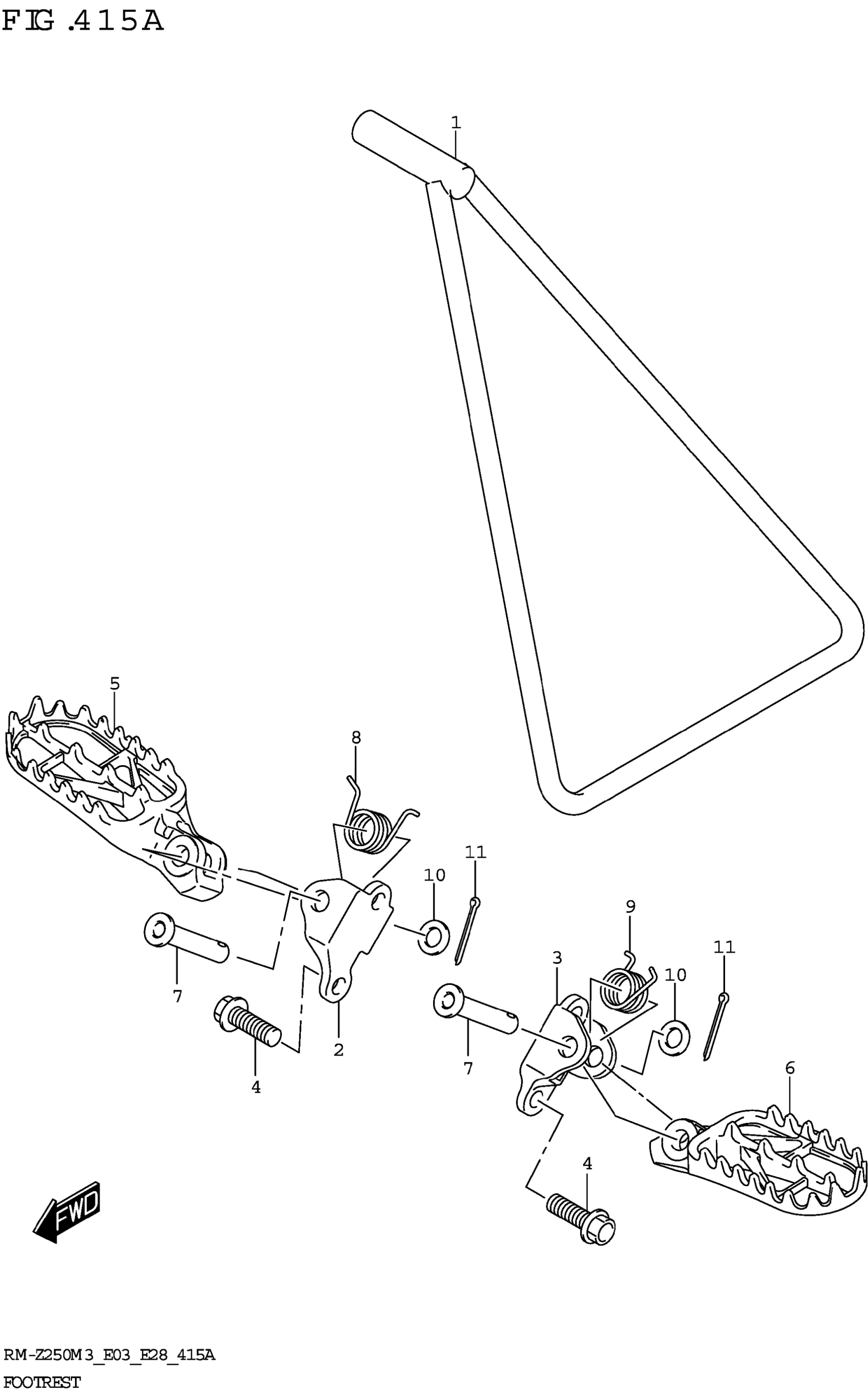

Suzuki RM-Z250M3 (2023) FOOTREST Diagram

#

Description
Price

1

STAND

42310-28H10

$146.17

2

BRACKET,FOOTREST RH

41855-28H10

$151.97

3

BRACKET,FOOTREST LH

41865-28H10

$146.38

4

BOLT (10X25)

09103-10415

$4.52

5

FOOTREST RH

43551-28H30

$85.62

6

FOOTREST LH

43561-28H10

$85.63

7

PIN (10X41.5)

09200-10023

$6.65

8

SPRING,FOOTREST,R

43581-28H10

$6.10

9

SPRING,FOOTREST,L

43591-28H10

$6.10

10

WASHER (10.5X18X1)

09160-10121

$2.03

11

PIN

04111-2520A

$1.49
