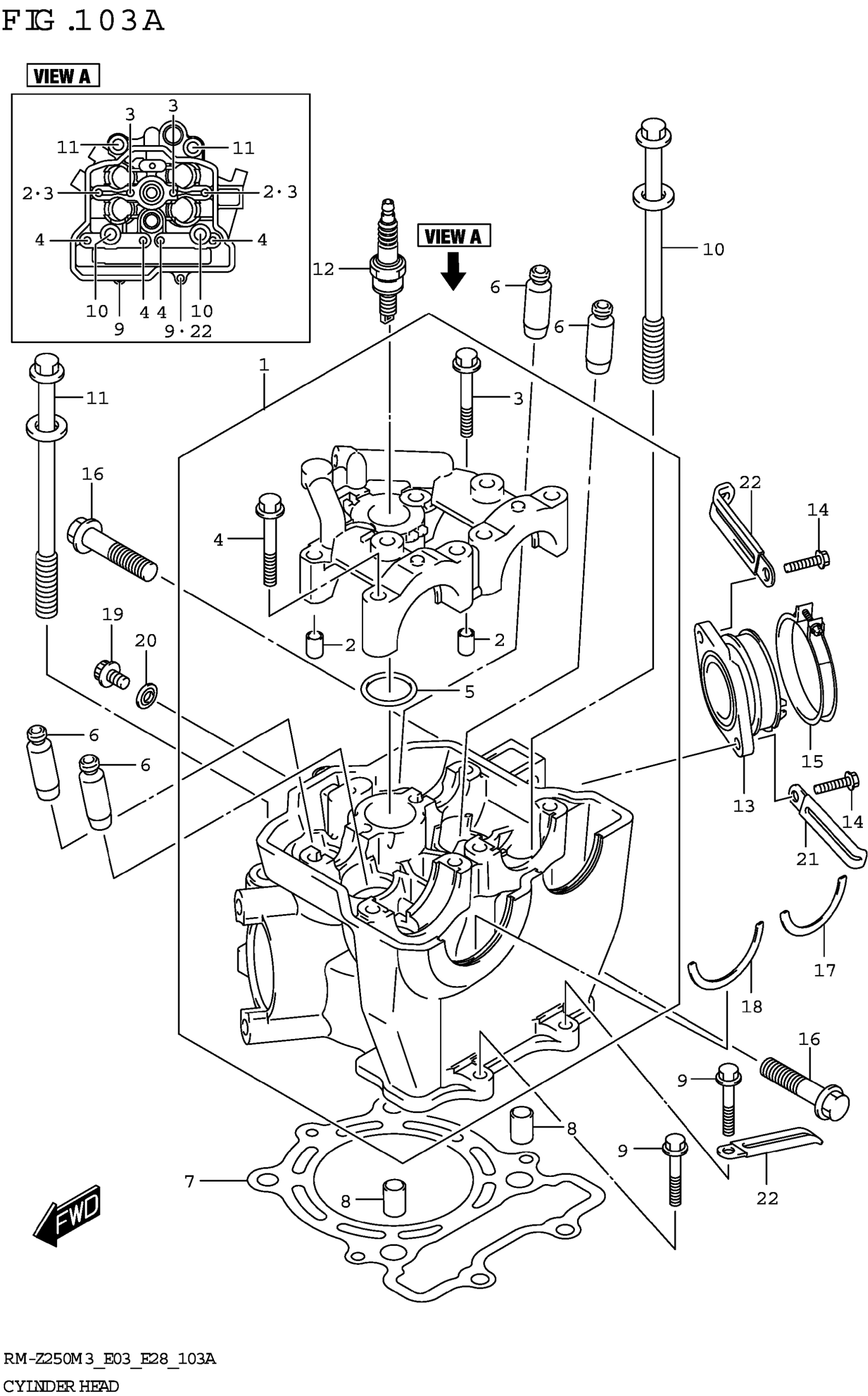

Suzuki RM-Z250M3 (2023) CYLINDER HEAD Diagram

#

Description
Price

1

HEAD ASSY,CYLINDER

11100-46K00

$708.93

2

.PIN (8X11)

09206-08001

$1.78

3

.BOLT (6X40)

09103-06266

$2.12

4

.BOLT (6X45)

09103-06293

$2.53

5

.O-RING (ID:25.7,DD:2.4)

09280-26007

$6.52

6

GUIDE,VALVE (OS.0.3) | OPT

11115-10H70

$39.23

7

.GASKET,CYLINDER HEAD

11141-49H00

$24.28

8

PIN (10.4X13X18)

04211-13189

$2.19

9

BOLT

01547-0625A

$2.01

10

BOLT,CYLINDER HEAD (10X124)

11117-10H00

$14.49

11

BOLT,CYLINDER HEAD (10X124)

11117-10H10

$19.00

12

PLUG,SPARK (CR8EIB-10)

09482-00584

$11.97

13

PIPE ASSY,INTAKE

13101-46K01

$61.32

14

BOLT

01547-0620A

$2.03

15

CLAMP,INTAKE PIPE

13170-35G01

$15.63

16

BOLT (10X32)

09103-10342

$4.50

17

C-RING

12749-49H00

$4.28

18

C-RING

12749-49H10

$4.83

19

.BOLT

07120-0610A

$2.30

20

GASKET (5.8X13X1.2)

09168-06023

$2.35

21

CLAMP (L:45)

09404-06429

$1.83

22

CLAMP (L:80)

09404-06030

Unavailable
