2022 Suzuki RM-Z250M2 Handle Lever Diagram

← All diagrams

Find the part on the Handle Lever diagram for your 2022 Suzuki RM-Z250M2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

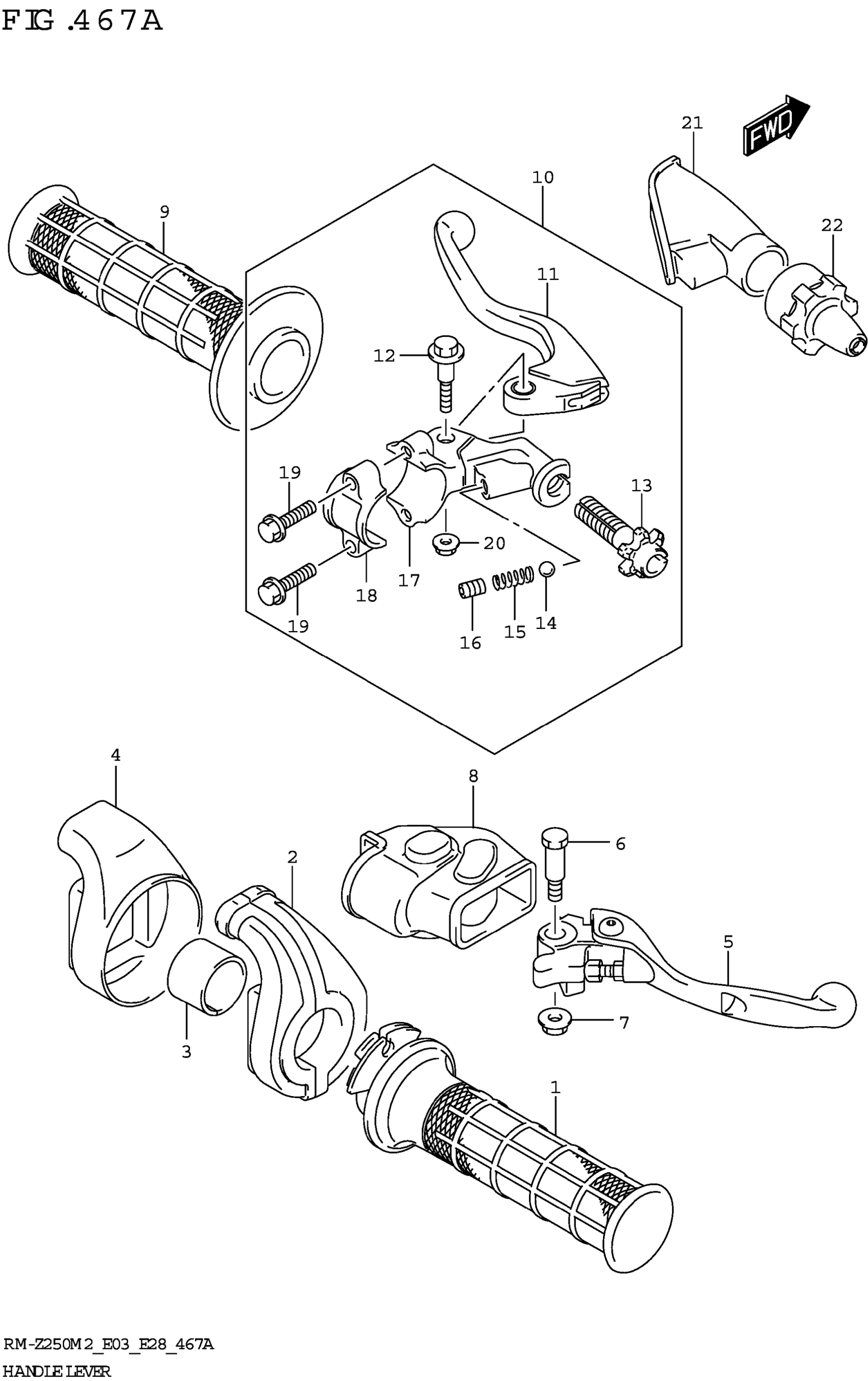

2022 Suzuki RM-Z250M2 Handle Lever Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GRIP,THROTTLE

57110-10H11

1

$63.18

In stock

2

CASE ASSY,THROTTLE

57100-10H01

1

$124.42

In stock

3

COLLAR,THROTTLE CASE

57151-35G00

1

$10.07

In stock

4

COVER,THROTTLE CASE

57129-35G00

1

$16.72

In stock

5

LEVER ASSY,BRAKE

57310-37F00

1

$34.88

In stock

6

BOLT, BRAKE LEVER

57431-14500

1
Out of stock

7

NUT This part replaces 57442-14500.

08316-1006B

1
Out of stock

8

COVER,BRAKE LEVER

57343-35G00

1

$21.48

In stock

9

GRIP,L

57211-28H00

1

$23.02

In stock

10

LEVER ASSY,CLUTCH

57500-35G31

1

$122.25

In stock

11

.LEVER,CLUTCH

57621-35G10

1

$21.29

In stock

12

.BOLT

57431-35G00

1

$38.98

In stock

13

1

$153.90

In stock

14

.BALL

06111-06003

1
Out of stock

15

.SPRING

57518-37K00

1

$9.07

In stock

16

.SCREW (6X8)

09134-06009

1

$2.58

In stock

17

.HOLDER,CLUTCH LEVER

57511-35G00

1

$44.33

In stock

18

.BRACKET, CLUTCH LEVER HOLDER

57512-28C00

1
Out of stock

19

.BOLT, BRACKET This part replaces 57513-35G00.

57513-29F10

2
Out of stock

20

.NUT

08310-00057

1

$1.97

In stock

21

COVER,CLUTCH LEVER

57341-28H01

1

$12.08

In stock

22

COVER,CLUTCH ADJUSTER

57342-37F01

1

$8.63

In stock
