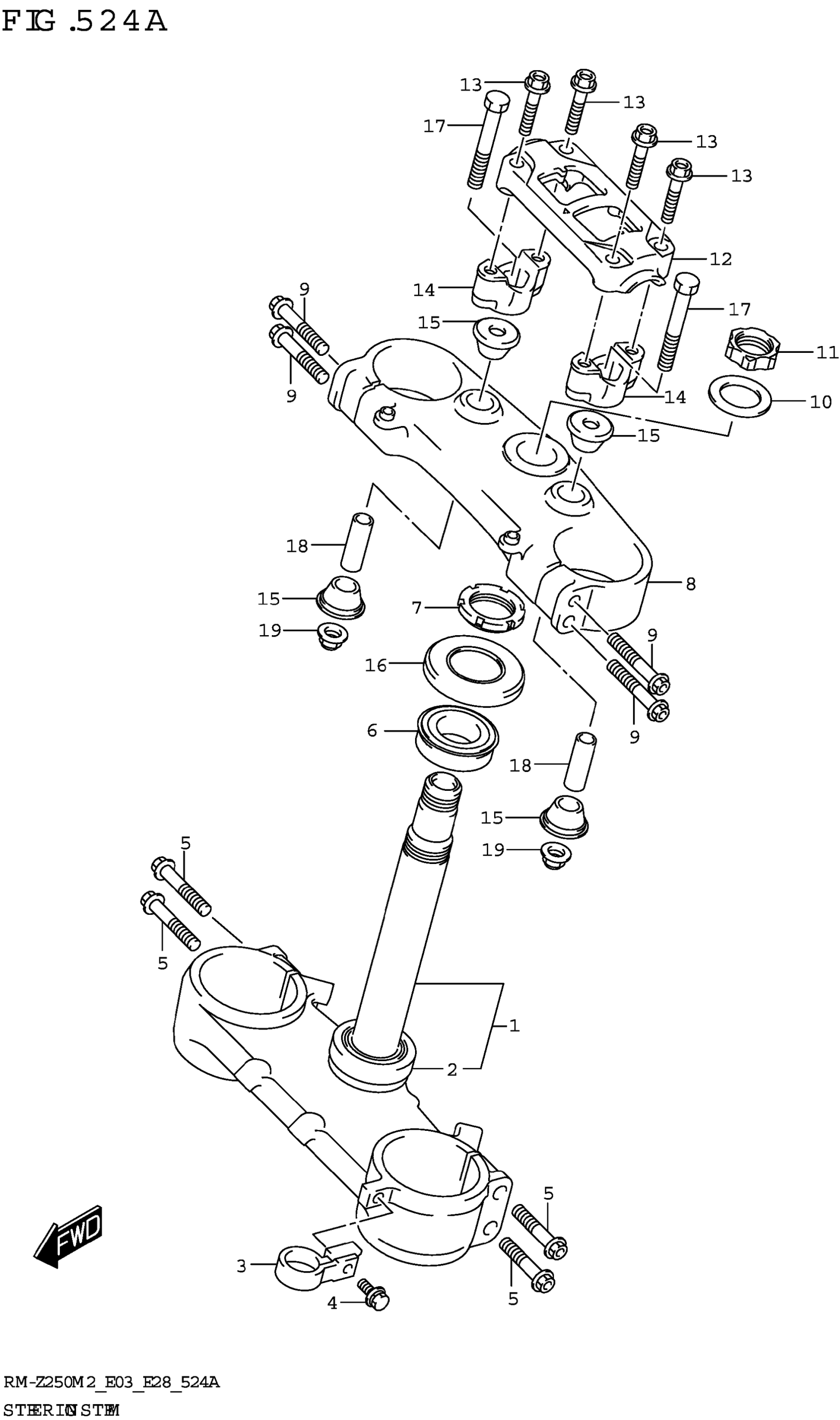

Suzuki RM-Z250M2 (2022) STEERING STEM Diagram

#

Description
Price

1

BRACKET,UNDER

51410-46K11

$498.37

2

.BEARING (30X52X16)

09265-30035

$42.15

3

CLIP

58621-49H40

$8.87

4

BOLT (6X10)

09111-06098

$3.30

5

BOLT,AXLE STOPPER

51166-10G10

$6.08

6

.BEARING (30X52X16)

09265-30035

$42.15

7

NUT,STEERING

51631-37K10

$33.22

8

BRACKET,UPPER

51311-46K10

$437.10

9

BOLT,AXLE STOPPER

51166-10G10

$6.08

10

WASHER

51356-49H40

$18.83

11

NUT

51353-49H40

$38.40

12

HOLDER,HANDLE

56211-49H40

$142.98

13

BOLT

51352-10G00

$7.48

14

HOLDER,HANDLE

56221-49H40

$108.50

15

DAMPER RUBBER

56241-49H40

$26.27

16

COVER,STEERING UPPER

51643-37K00

$27.28

17

BOLT

56321-49H40

$16.90

18

SPACER

56243-49H40

$13.67

19

NUT This part replaces 08319-31108.

08319-31107

$2.73
