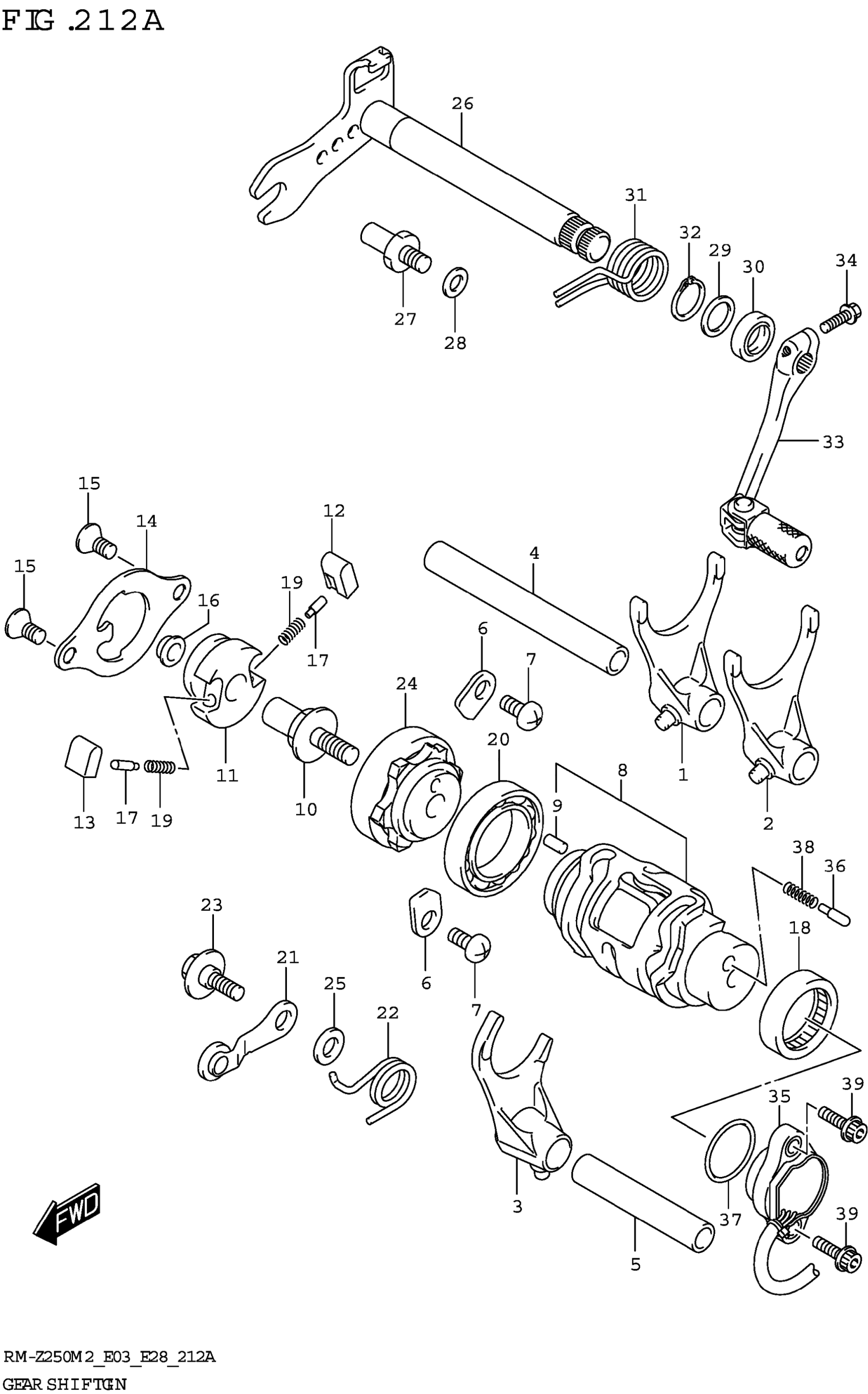

Suzuki RM-Z250M2 (2022) GEAR SHIFTING Diagram

#

Description
Price

1

FORK,GEAR SHIFT NO.1

25211-49H00

$88.53

2

FORK,GEAR SHIFT NO.1 | GEAR SHIFT NO.2

25211-49H00

$88.53

3

FORK,GEAR SHIFT NO.3 | NO.1

25231-49H00

$85.28

4

SHAFT,GEAR SHIFT FORK (L:95) | NO.2

25411-37F20

$22.22

5

SHAFT,GEAR SHIFT FORK (L:60)

25421-27C01

$18.43

6

RETAINER

24741-21A00

$2.81

7

SCREW (6X12)

09125-06122

$2.44

8

CAM,GEAR SHIFT

25310-49H10

$188.80

9

PIN (4X13.8)

04221-04089

$1.49

10

PIN,GEAR SHIFT CAM

25313-37F00

$14.77

11

SHIFTER,GEAR SHIFT CAM

25322-28H00

$64.68

12

PAWL, GEAR SHIFT NO.1

25323-34201

$7.22

13

PAWL, GEAR SHIFT NO.2

25324-34201

$7.22

14

LIFTER,GEAR SHIFT PAWL

25331-49H00

Unavailable

15

SCREW (6X12)

09126-06011

$2.03

16

SPACER (L:5)

09180-07014

$4.11

17

PIN (5X8)

09209-05023

$2.61

18

BEARING (25X32X12)

09263-25018

$21.39

19

SPRING

09440-04003

$1.54

20

BEARING

08140-69050

$35.66

21

STOPPER,GEAR SHIFT CAM

25350-49H00

$14.27

22

SPRING,GEAR SHIFT CAM STOPPER

25355-49H20

$4.05

23

BOLT (6X14.3)

09111-06041

$2.61

24

PLATE,GEAR SHIFT CAM STOPPER

25381-49H10

$45.50

25

WASHER

08211-06121

$1.54

26

SHAFT,GEAR SHIFT

25510-49H11

$72.17

27

STOPPER,GEAR SHIFT ARM

25671-10H00

$5.98

28

SHIM (8.8X14X1)

09181-08139

$1.91

29

SHIM (14X20X1)

09181-14139

$2.60

30

SEAL, SHIFT SHAFT (14X22X6) This part replaces 09283-14005.

09283-14006

$6.70

31

SPRING,SHIFT SHAFT RETURN

25518-49H00

$6.18

32

CIRCLIP

08331-3114A

$1.91

33

LEVER ASSY,GEAR SHIFT

25600-10H21

$83.25

34

BOLT

01547-0620A

$2.03

35

BASE ASSY,GEAR SHIFT TERM

37730-46K00

$98.13

36

PIN (5X15.5)

09209-05011

$2.20

37

O-RING (D:2.4,ID:26.2)

09280-26005

$2.30

38

SPRING

09440-04010

$1.54

39

BOLT

07120-0516A

$2.28
