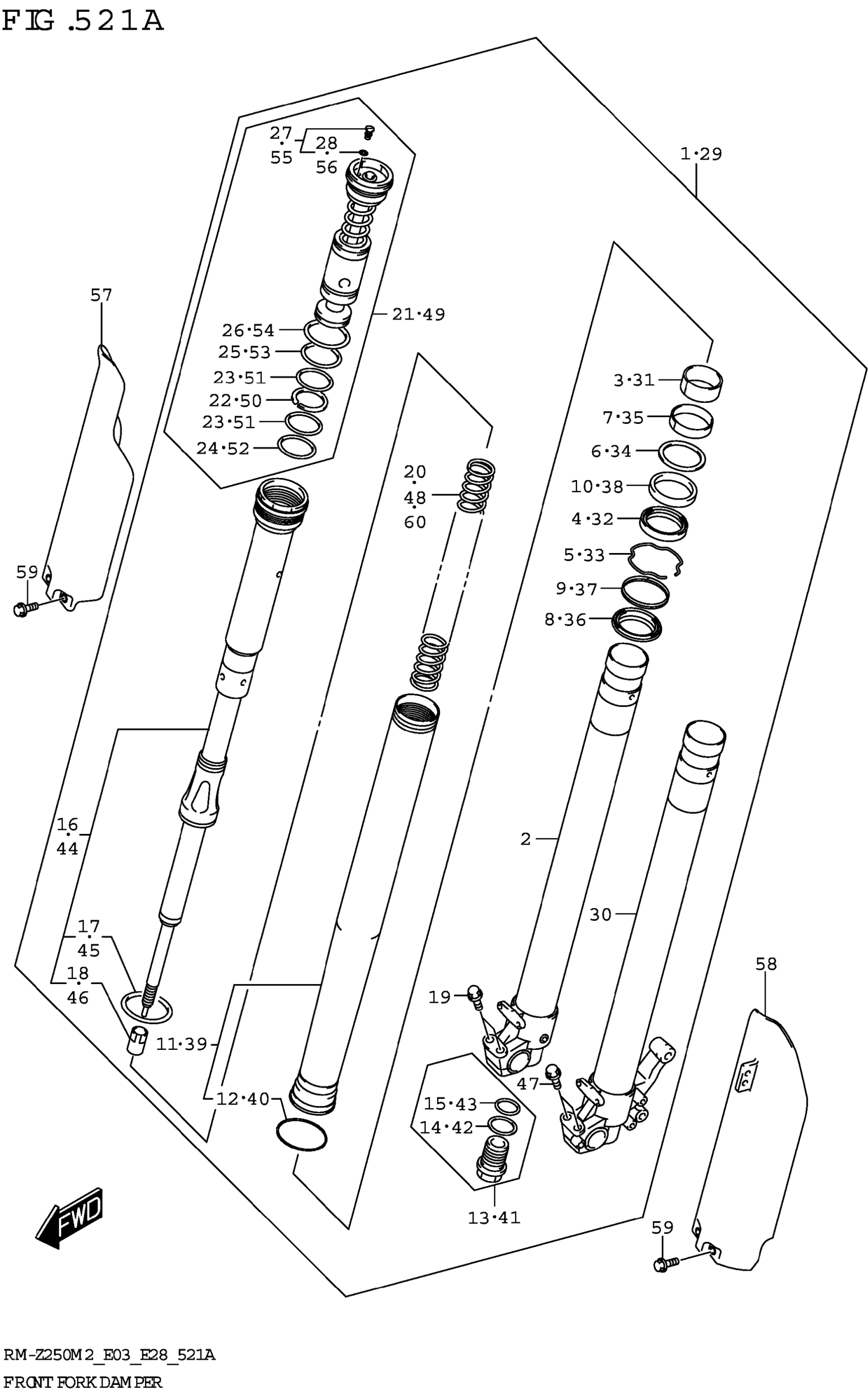

Suzuki RM-Z250M2 (2022) FRONT FORK DAMPER Diagram

#

Description
Price

1

DAMPER ASSY, FRONT FORK RH

51103-46K00

$1,744.12

2

.TUBE, INNER RH

51110-46K00

$342.82

3

.PISTON

51127-49HE0

$32.77

4

.SEAL,OIL

51153-49HE0

$24.97

5

.RING,SNAP

51156-49HE0

$5.67

6

.WASHER

51158-46K00

$24.87

7

.METAL,SLIDE

51167-49HE0

$21.42

8

.SEAL,DUST

51173-49HE0

$18.22

9

.SCRAPER

51152-49HE0

$24.81

10

.COLLAR

51155-49HE0

$8.19

11

.TUBE, OUTER

51130-46K00

$510.65

12

..RING,SNAP

51211-49H40

$6.47

13

.ADJUSTER

51170-46K00

$39.75

14

..GASKET

51148-01B20

$3.65

15

O RING (D:2.4,ID:17.8) This part replaces 51181-43010.

09280-18004

$5.18

16

.CYLINDER ASSY

51190-46K00

$565.68

17

..O RING This part replaces 51117-48G00.

51117-48G01

$3.05

18

..NUT

51814-49H40

$27.23

19

BOLT

51166-24F60

$5.58

20

.SPRING

51171-46K00

$31.70

21

.VALVE ASSY,BASE

51350-46K00

$316.13

22

..RING,BACKUP

51124-46K00

$3.58

23

..O RING

51174-46K00

$2.10

24

..O RING

51175-46K00

$2.10

25

..O RING

51186-46K00

$2.37

26

..O RING

51187-46K00

$2.15

27

..SCREW

51357-46K00

$3.78

28

...O RING

51358-46K00

$1.83

29

DAMPER ASSY, FRONT FORK LH

51104-46K00

$1,744.12

30

.TUBE, INNER LH

51120-46K00

$342.82

31

.PISTON

51127-49HE0

$32.77

32

.SEAL,OIL

51153-49HE0

$24.97

33

.RING,SNAP

51156-49HE0

$5.67

34

.WASHER

51158-46K00

$24.87

35

.METAL,SLIDE

51167-49HE0

$21.42

36

.SEAL,DUST

51173-49HE0

$18.22

37

.SCRAPER

51152-49HE0

$24.81

38

.COLLAR

51155-49HE0

$8.19

39

.TUBE, OUTER

51130-46K00

$510.65

40

..RING,SNAP

51211-49H40

$6.47

41

.ADJUSTER

51170-46K00

$39.75

42

..GASKET

51148-01B20

$3.65

43

O RING (D:2.4,ID:17.8) This part replaces 51181-43010.

09280-18004

$5.18

44

.CYLINDER ASSY

51190-46K00

$565.68

45

..O RING This part replaces 51117-48G00.

51117-48G01

$3.05

46

..NUT

51814-49H40

$27.23

47

BOLT

51166-24F60

$5.58

48

.SPRING

51171-46K00

$31.70

49

.VALVE ASSY,BASE

51350-46K00

$316.13

50

..RING,BACKUP

51124-46K00

$3.58

51

..O RING

51174-46K00

$2.10

52

..O RING

51175-46K00

$2.10

53

..O RING

51186-46K00

$2.37

54

..O RING

51187-46K00

$2.15

55

..SCREW

51357-46K00

$3.78

56

...O RING

51358-46K00

$1.83

57

PROTECTOR,FRONT FORK,R

51501-28H60

$58.07

58

PROTECTOR,FRONT FORK,L

51510-28H70

$103.73

59-1

SPRING,FRONT | OPT SOFT K=4.9

51171-46K10

$31.70

59-2

SPRING,FRONT | OPT HARD K=5.1

51171-46K20

$31.70

60

BOLT (6X16)

09116-06200

$3.16
