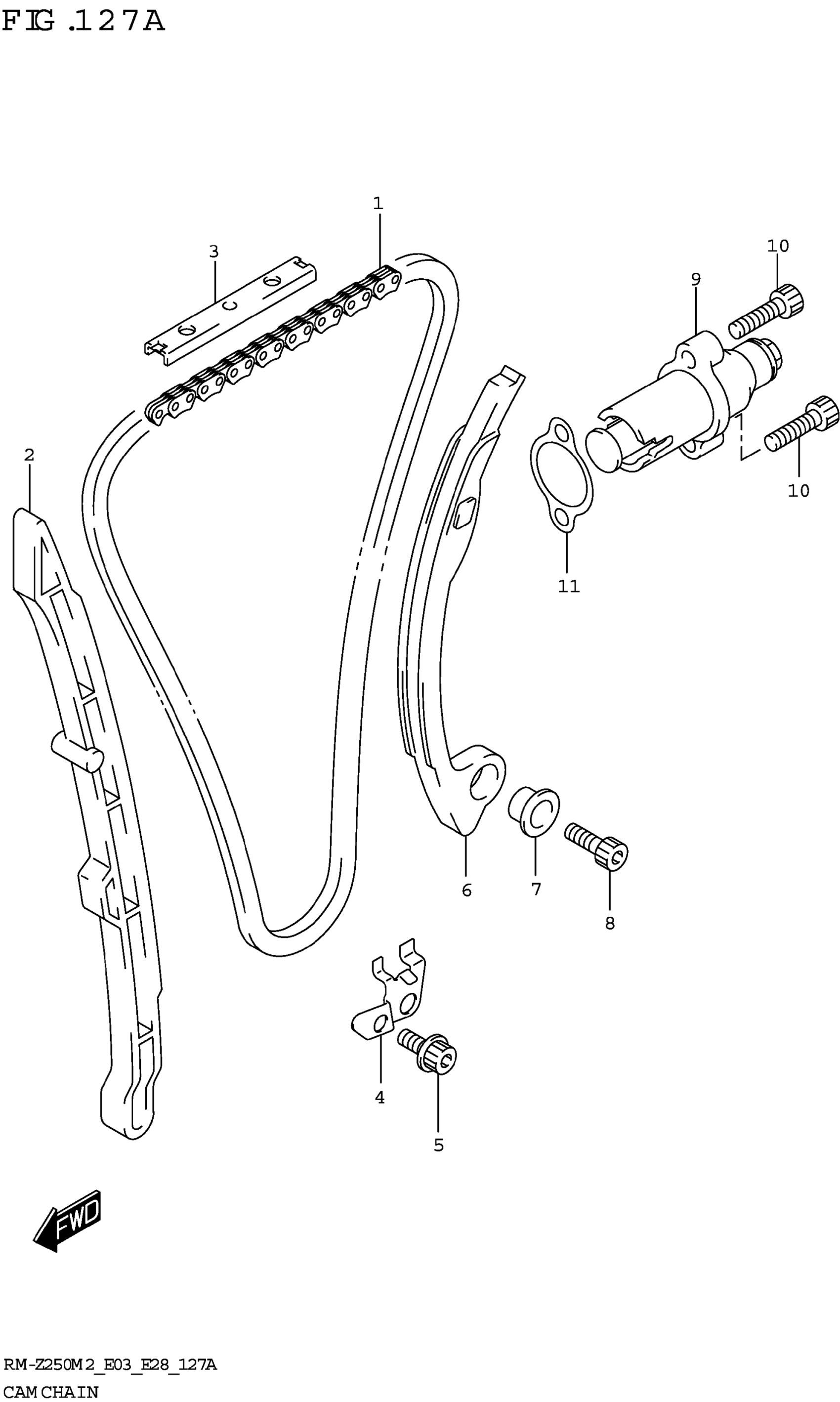

Suzuki RM-Z250M2 (2022) CAM CHAIN Diagram

#

Description

Price

1

CHAIN,CAMSHAFT DRIVE (82RH201 | -114M)

12760-10H00

$43.74

2

GUIDE,CAM CHAIN NO.1

12771-49H00

$31.12

3

GUIDE,CAM CHAIN NO.2

12782-35G01

$11.95

4

RETAINER,CAM CHAIN GUIDE NO.1

12773-49H00

$7.27

5

.BOLT

07120-0610A

$2.30

6

TENSIONER,CAM CHAIN

12811-46K00

$66.23

7

SPACER,CAM CHAIN TENSIONER

12812-35G00

$15.17

8

BOLT This part replaces 07130-0616A.

07130-0616B

$2.39

9

ADJUSTER ASSY,TENSIONER

12830-46K00

$117.30

10

BOLT (6X25)

07130-0625A

$2.62

11

.GASKET,TENSIONER ADJUSTER

12837-46K00

$2.92
