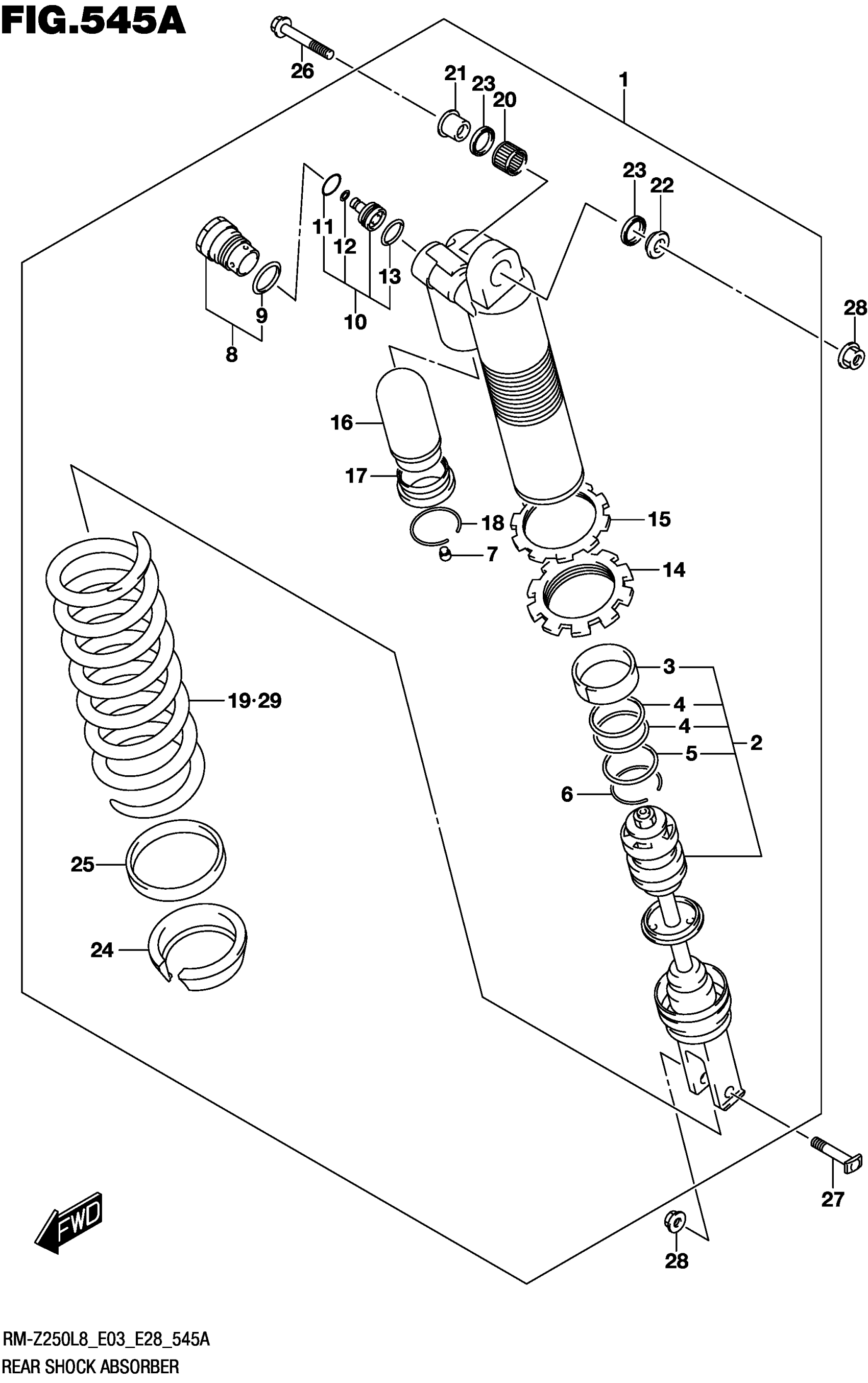

Suzuki RM-Z250L8 (2018) REAR SHOCK ABSORBER Diagram

#

Description
Price

1

ABSORBER ASSY

62100-49HF0-019

$1,161.58

1

ABSORBER ASSY

62100-49HF0-019

$1,161.58

2

.ROD SUBASSY

62120-49HE0

Unavailable

3

..RING,PISTON

62131-49HE0

$30.95

4

..O RING

62152-49HE0

$4.05

5

..O RING

62153-49HE0

$4.05

6

.RING,STOP

62279-49HE0

$2.10

7

..CAP,VALVE AIR

51294-40400

$8.12

8

.VALVE ASSY

62130-49HE0

$205.52

9

...O RING

62133-49HE0

$4.45

10

.VALVE

62170-49HE0

$39.47

11

...WASHER

62135-49HE0

$2.10

12

...O RING

62136-49HE0

$1.98

13

...O RING

62134-49HE0

$2.80

14

..GUIDE,SPRING

62191-49HE0

$21.65

15

..NUT

62194-49HE0

$16.68

16

..BLADER

62273-49HE0

$30.95

17

..GUIDE

62275-49HE0

$51.17

18

..RING,STOP

62277-49HE0

$2.80

19

.SPRING | (STD K=5.5)

62211-49HE0

Unavailable

20

.BEARING (16X22X12)

09263-16033

$20.26

21

.SPACER,UPPER BRG,R

62684-36F00

$23.07

22

.SPACER,UPPER BRG,L

62685-36F00

$13.36

23

OIL SEAL (16X22X2.5)

09284-16005

$6.95

24

.GUIDE SPRING

62222-49HE0

$15.52

25

.GUIDE SPRING

62221-49HE0

$55.55

26

BOLT,RR SHOCK ABSORBER UPR

62311-28H00

$9.85

27

BOLT,RR SHOCK ABSORBER LWR

62221-37F30

$7.48

28

NUT

09159-10067

$6.11

29-1

SPRING | OPT

62211-49HG0

Unavailable

29-1

SPRING | (SOFT K=5.3)

62211-49HG0

Unavailable

29-2

SPRING | OPT

62211-49HH0

Unavailable

29-2

SPRING | (HARD K=5.7)

62211-49HH0

Unavailable

29-3

SPRING | OPT

62211-49HJ0

Unavailable

29-3

SPRING | (HARD K=5.9)

62211-49HJ0

Unavailable
