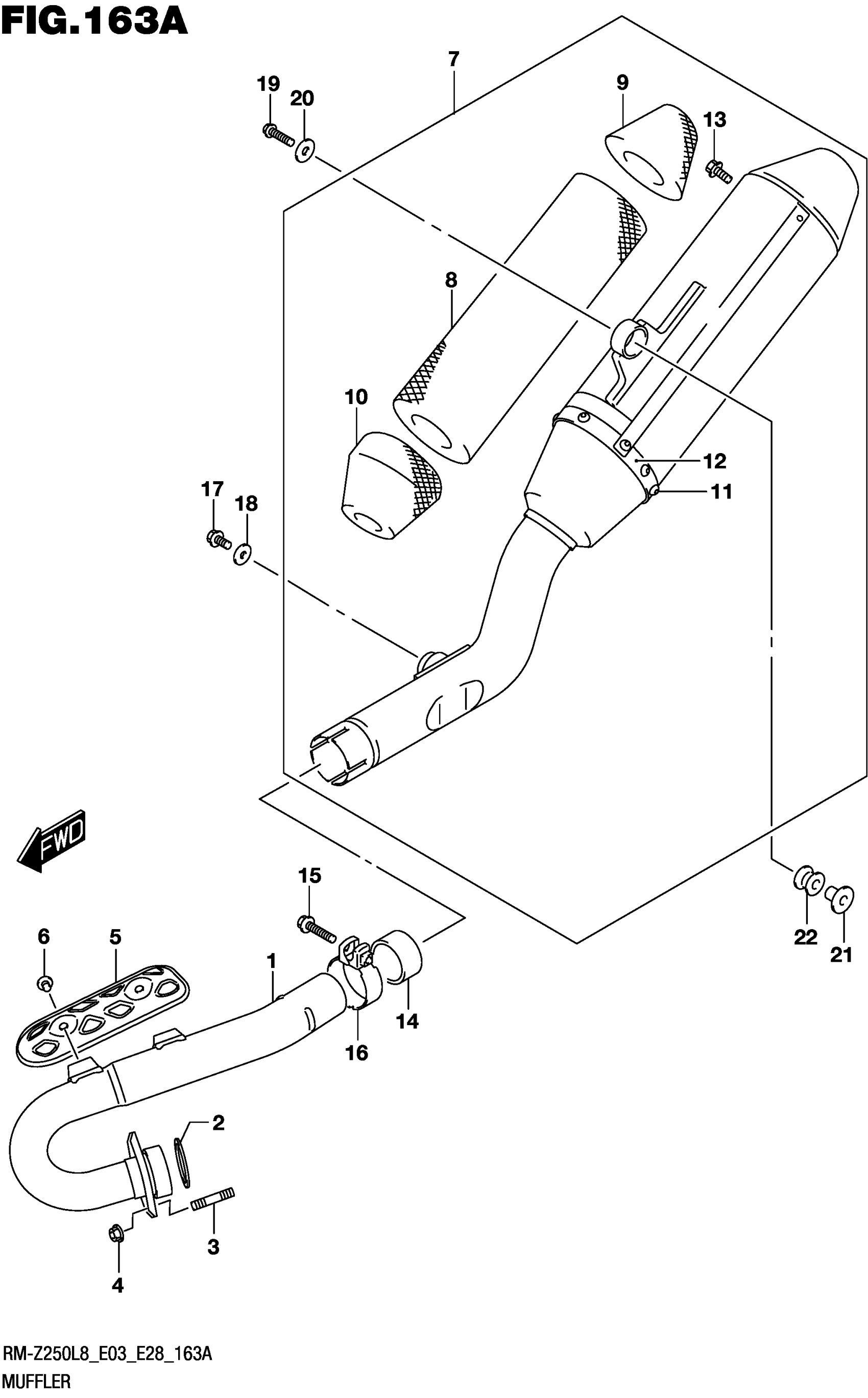

Suzuki RM-Z250L8 (2018) MUFFLER Diagram

#

Description
Price

1

PIPE

14150-49H40

$186.70

2

.GASKET,EXHAUST PIPE

14181-49H00

$10.98

3

BOLT,STUD

01421-0816A

$1.78

4

NUT

08316-1008A

$2.45

5

COVER,EXHAUST PIPE

14186-49H10

$49.42

6

BOLT (6X8)

09139-06178

$4.72

7

BODY

14310-49H50

Unavailable

8

.SILENCER

14351-49H30

Unavailable

9

.GLASS WOOL,MUF TAIL

14355-49H00

$25.25

10

.GLASS WOOL

14356-49H10

Unavailable

11

.RIVET,MUFFLER

14454-28H00

Unavailable

12

.BAND,FR

14781-35G10

$8.40

13

BOLT

01547-0612A

$2.03

14

.CONNECTOR,MUFFLER

14771-45G00

$25.76

15

BOLT (8X35)

09103-08391

$2.50

16

CLAMP

14469-29F00

$23.40

17

BOLT (8X20)

09103-08426

$4.60

18

WASHER (8X20X1)

09160-08103

$3.48

19

BOLT (8X35)

09103-08391

$2.50

20

WASHER (8.5X26X1.6)

09160-08151

$1.99

21

SPACER (8.6X12X18.5)

09180-08157

$7.12

22

CUSHION

09320-12043

$7.98
