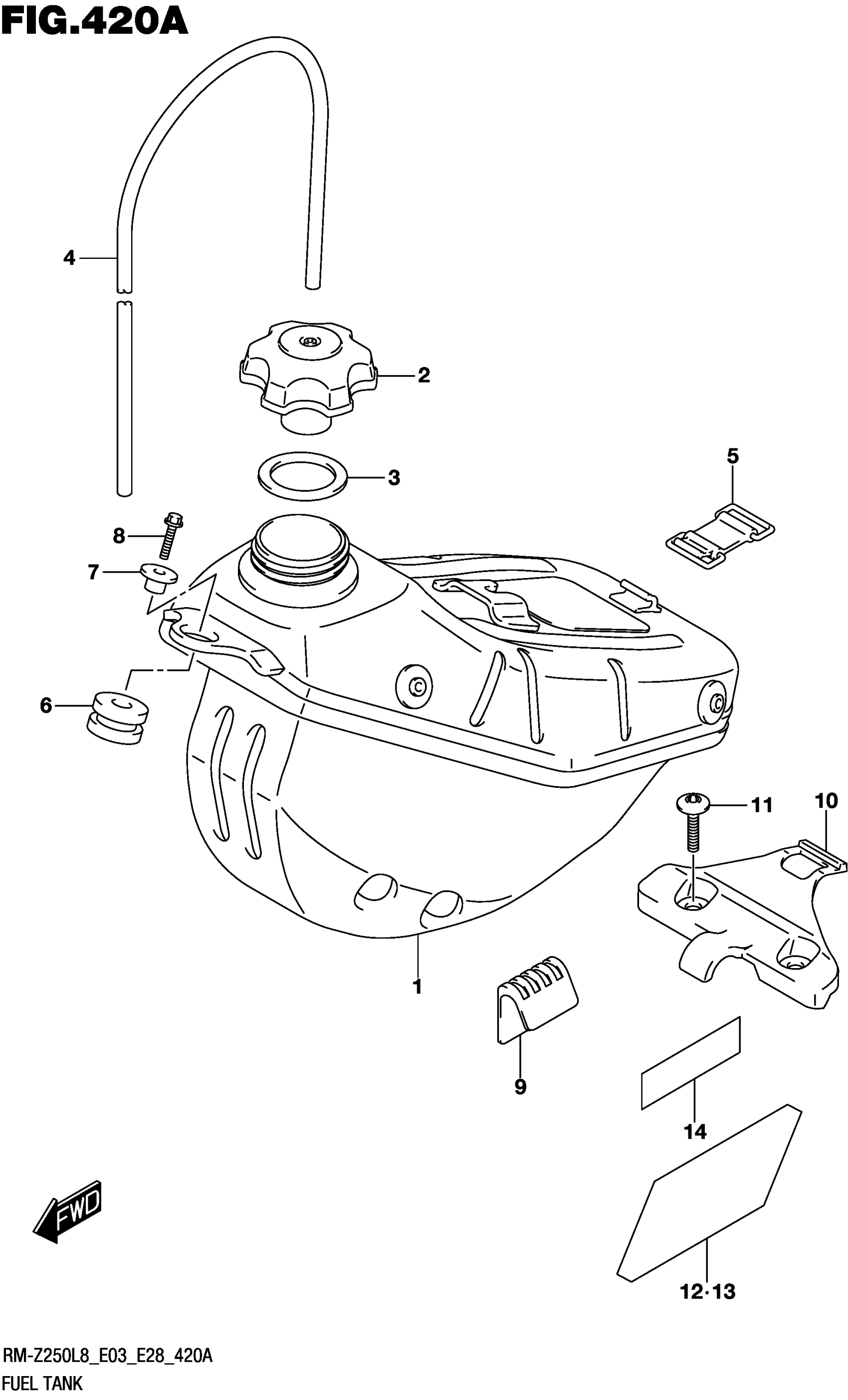

Suzuki RM-Z250L8 (2018) FUEL TANK Diagram

#

Description
Price

1

TANK

44110-49H10

Unavailable

2

CAP,FUEL TANK FILLER

44210-37F00

$34.55

3

GASKET,FUEL TANK FILLER CAP This part replaces 44248-27C00.

44248-27C01

$4.21

4

HOSE,5X10X600 | L:600->350 This part replaces 09352-50823-600.

44421-13ER0

$10.06

5

BAND

44560-49H00

$9.37

6

CUSHION,FUEL TA This part replaces 44541-28H00.

44541-28H01

$5.05

7

SPACER

44134-35G02

$21.67

8

BOLT (6X30)

09103-06213

$2.47

9

CUSHION,FUEL TA This part replaces 44543-49H00.

44543-49H01

$10.03

10

CUSHION

44542-49H00

$22.75

11

SCREW (6X26.5)

09139-06185

Unavailable

12

PROTECTOR

17795-28H00

$20.45

13

PROTECTOR

17796-28H00

$20.45

14

PROTECTOR

17797-28H00

$13.18
