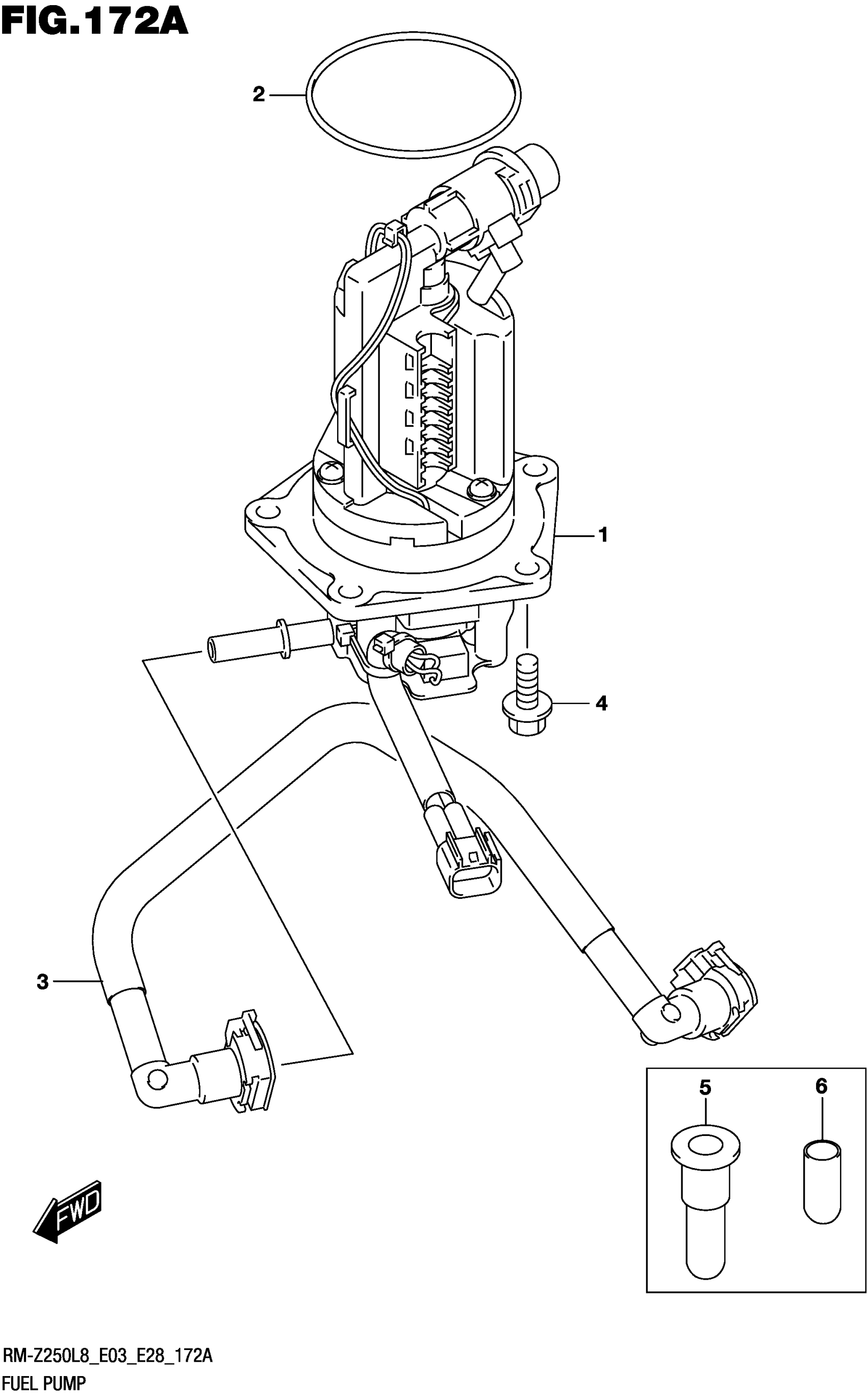

Suzuki RM-Z250L8 (2018) FUEL PUMP Diagram

#

Description

Price

1

PUMP ASSY

15100-28H11

$416.73

2

O-RING

15111-28H00

$27.55

3

HOSE

15810-49H20

$78.30

4

BOLT

01547-0620A

$2.03

5

CAP,FUEL HOSE

15819-28H00

$5.08

6

CAP,FUEL PUMP

15114-28H00

$5.17
