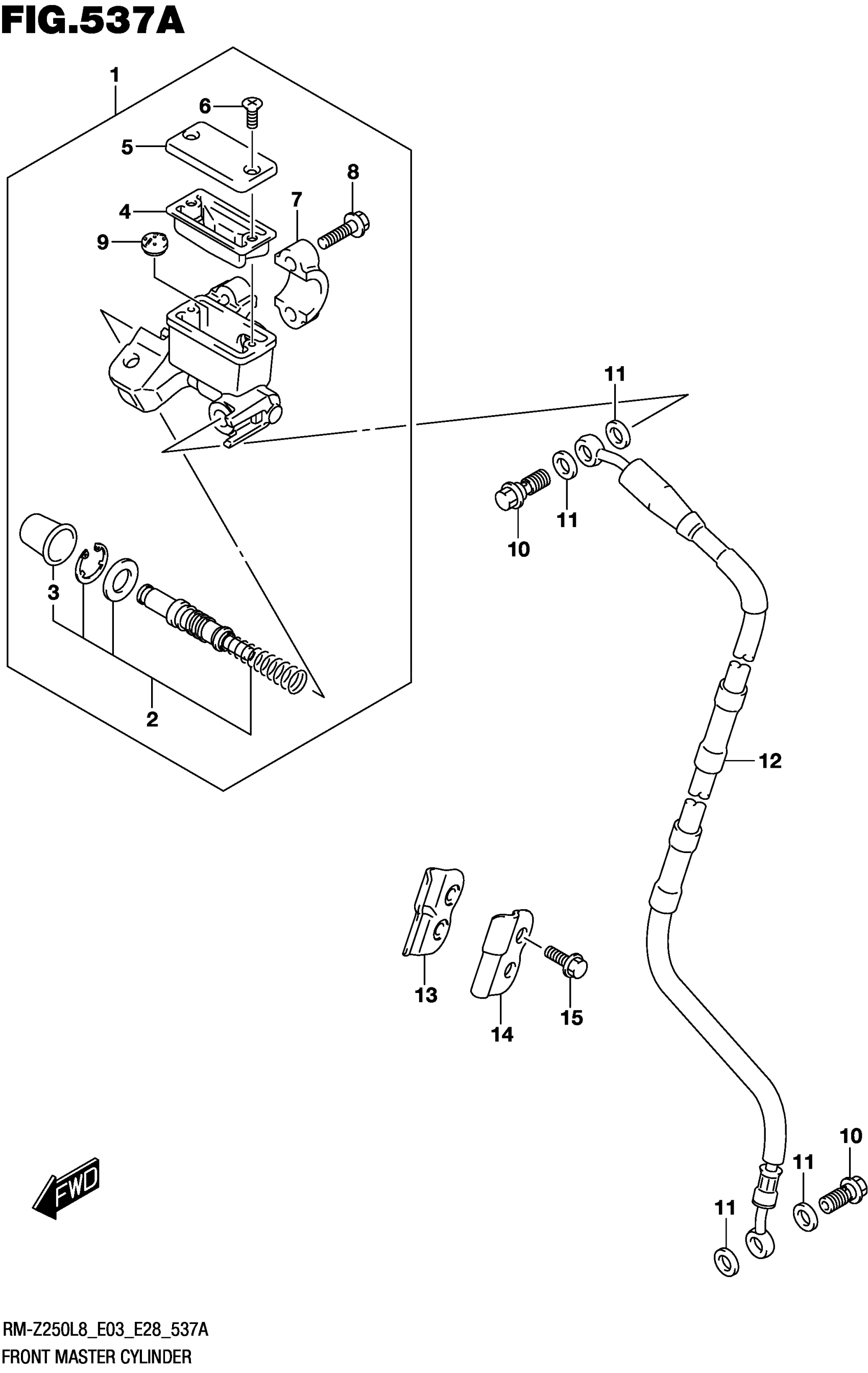

Suzuki RM-Z250L8 (2018) FRONT MASTER CYLINDER Diagram

#

Description
Price

1

CYLINDER ASSY, FRONT MASTER This part replaces 59600-37F00.

59600-37F10

$226.62

2

.PISTON & CUP SET

59600-37810

$58.68

3

..BOOT

59666-44300

$5.80

4

.DIAPHRAGM

59667-14500

$10.12

5

.CAP

69669-44E00

$23.07

6

.SCREW

69689-49300

$1.91

7

.HOLDER

59671-27C00

$17.02

8

.BOLT (6X25)

59675-06F00

$4.73

9

.SEPARATOR

59748-36E00

$9.37

10

UNION (10X1.25X22)

09360-10065

$8.92

11

WASHER (10X15X1.5)

09161-10009

$1.84

12

HOSE,FR BRAKE This part replaces 59480-28H00.

59480-28H01

$201.65

13

CLAMP,FR BRAKE HOSE INNER

59260-28H20

$24.31

14

CLAMP,FR BRAKE HOSE

59271-28H10

$10.96

15

BOLT

01547-0616A

$2.03
