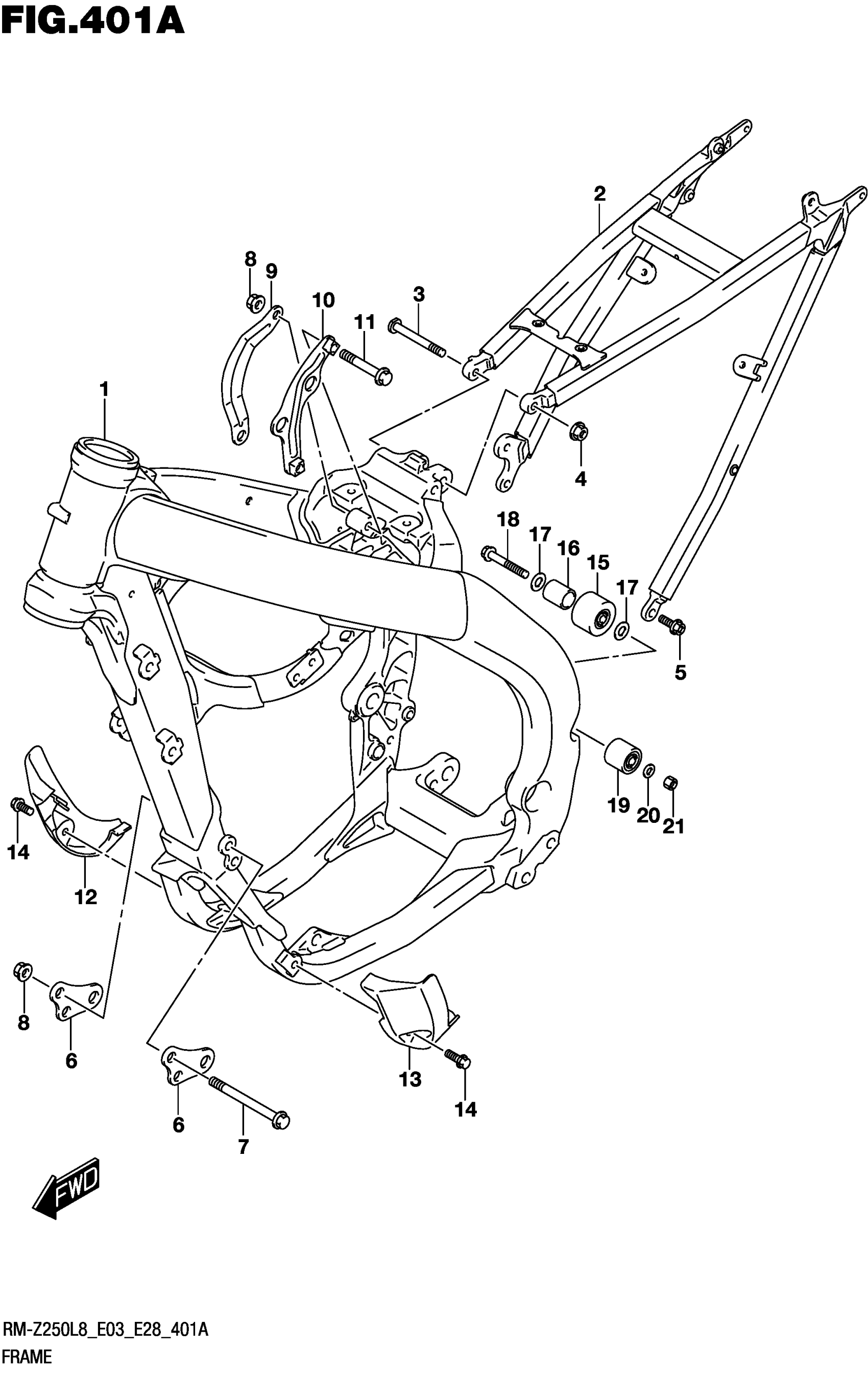

Suzuki RM-Z250L8 (2018) FRAME Diagram

#

Description
Price

1

FRAME

41100-49H30

$2,961.80

2

RAIL

41200-49H30

Unavailable

3

BOLT

41311-28H20

$19.12

4

NUT

09159-08146

$7.22

5

BOLT (8X20)

09103-08426

$4.60

6

BRACKET

41911-49H20

$8.40

7

BOLT (8X80)

09103-08016

$29.80

8

NUT

09159-08146

$7.22

9

BRACKET

41931-49H20

$12.47

10

BRACKET

41940-49H30

$16.23

11

BOLT (8X40)

09103-08523

$4.25

12

PROTECTOR

42520-10H10

$29.75

13

PROTECTOR

42530-49H10

$26.60

14

BOLT (6X16)

09116-06200

$3.16

15

ROLLER

43911-01B10

$16.63

16

SPACER (8.5X14X28)

09180-08206

$5.75

17

SHIM (8X18X0.5)

09181-08186

$1.99

18

BOLT (8X45)

09103-08207

$2.51

19

ROLLER,CHAIN

43910-37F00

$70.53

20

SHIM (8X12X1)

09181-08111

$1.93

21

NUT

08319-2108A

$2.12
