2018 Suzuki RM-Z250L8 Cylinder Diagram

← All diagrams

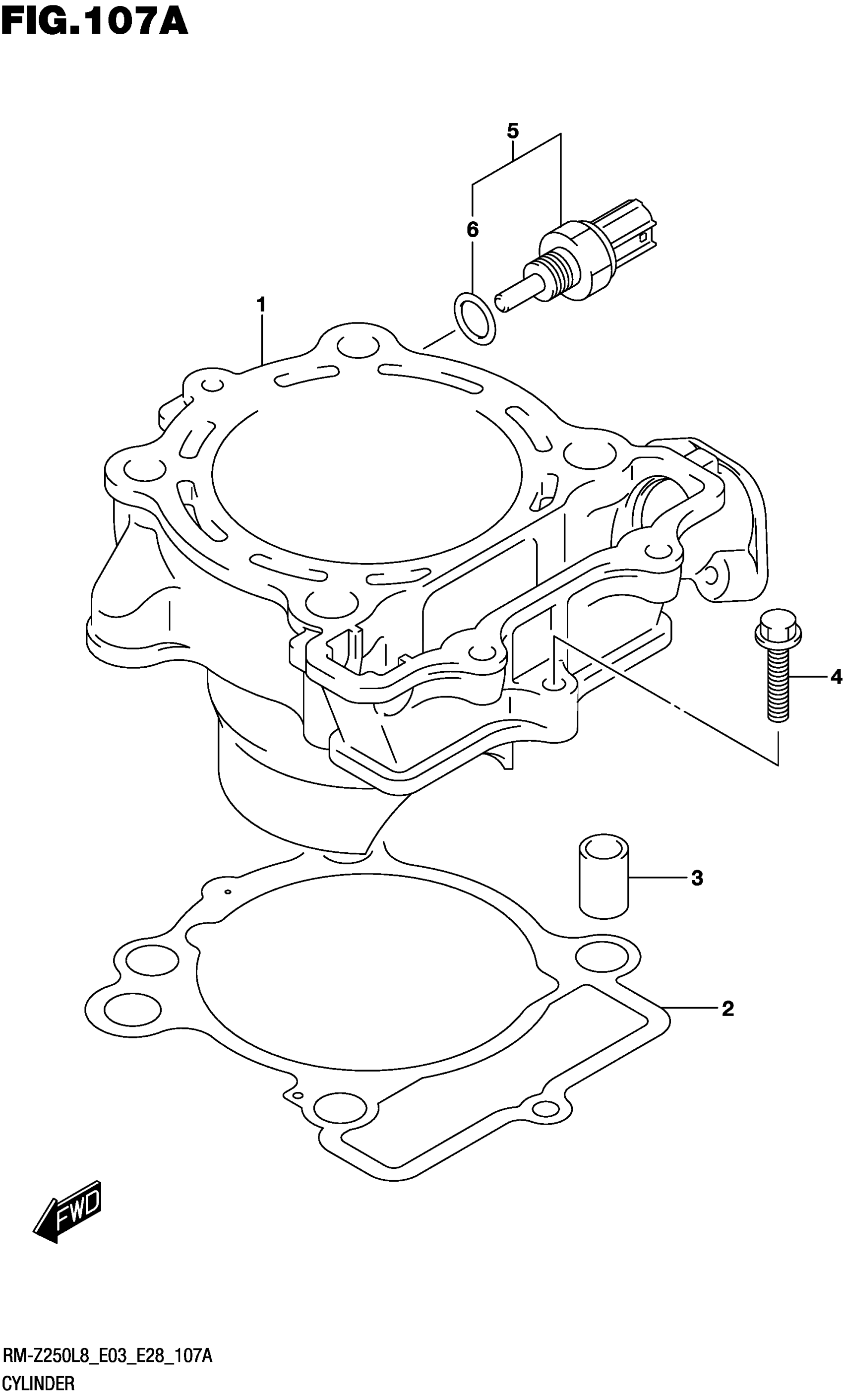

Find the part on the Cylinder diagram for your 2018 Suzuki RM-Z250L8, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2018 Suzuki RM-Z250L8 Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

1

$549.22

In stock

2

.GASKET

11241-49H20

1

$14.57

In stock

3

PIN (10.4X13X18)

04211-13189

2
Out of stock

4

BOLT

01547-0625A

1
Out of stock

5

SENSOR,WATER TEMP

13650-14G00

1

$53.34

In stock

6

.O RING

13655-14G00

1

$10.48

In stock
