2018 Suzuki RM-Z250L8 Crankcase Cover Diagram

← All diagrams

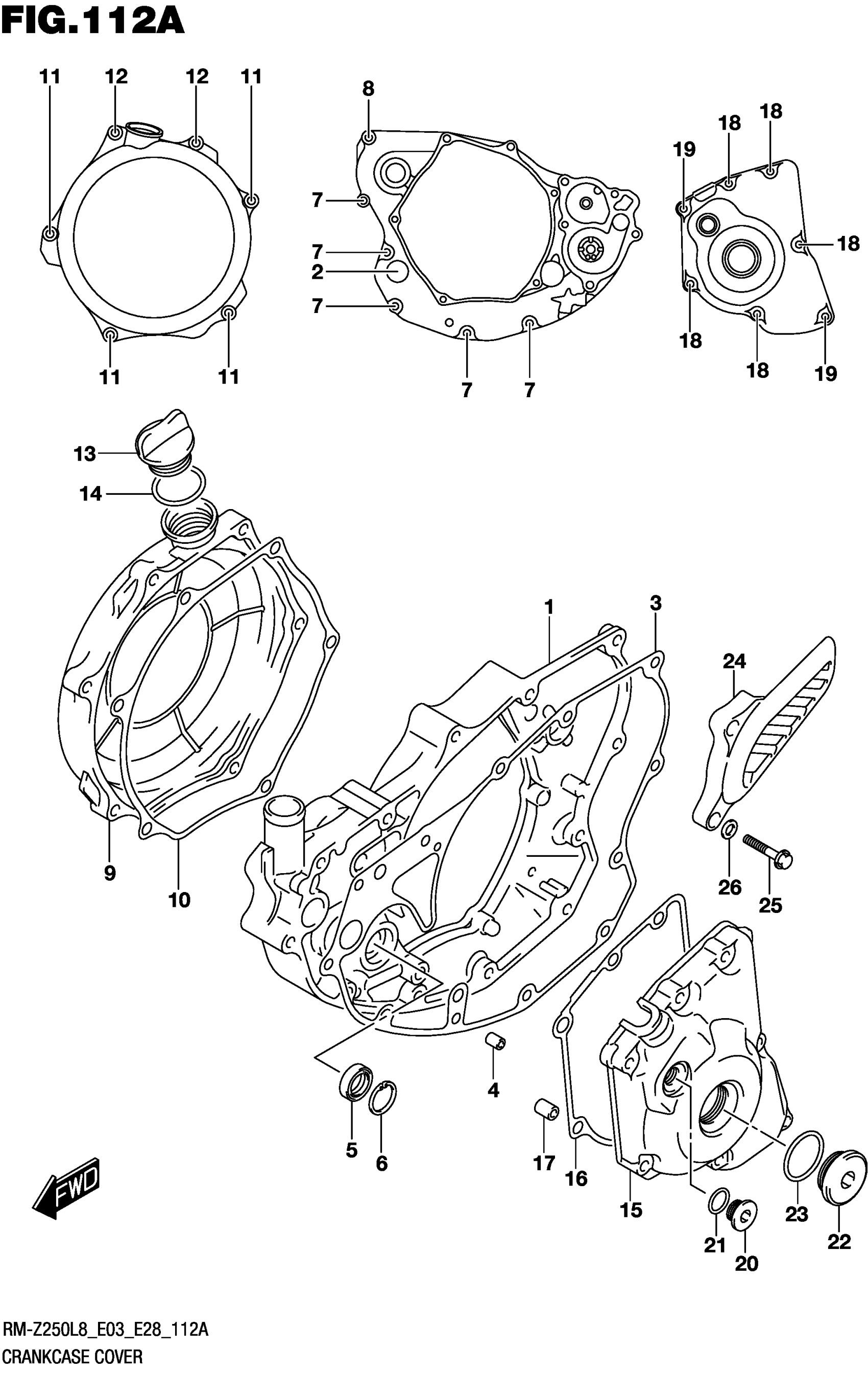

Find the part on the Crankcase Cover diagram for your 2018 Suzuki RM-Z250L8, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2018 Suzuki RM-Z250L8 Crankcase Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER

11340-49H00

1

$330.58

In stock

2

.LENS, OIL LEVEL CHECK

11971-45010

1
Out of stock

3

.GASKET,CLUTCH COVER

11482-49H00

1

$15.58

In stock

4

PIN

04211-09109

2
Out of stock

5

SEAL,OIL (12X22X6)

09282-12012

1

$19.53

In stock

6

CIRCLIP

08331-41249

1
Out of stock

7

BOLT

01547-0625A

5
Out of stock

8

BOLT

01547-0630A

1

$2.48

In stock

9

COVER,CLUTCH OUTER

11371-10H10

1

$259.30

In stock

10

1

$13.99

In stock

11

BOLT

01547-0625A

4
Out of stock

12

BOLT

01547-0665A

2

$2.52

In stock

13

PLUG

09259-20008-XC0

1

$7.27

In stock

14

O-RING (D:3.1,ID:16.8)

09280-17003

1
Out of stock

15

COVER

11351-49H00

1

$307.05

In stock

16

.GASKET,MAGNETO COVER

11483-49H00

1

$12.50

In stock

17

PIN

04211-09109

2
Out of stock

18

BOLT

01547-0630A

5

$2.48

In stock

19

BOLT

01547-0635A

2
Out of stock

20

PLUG (12X9)

09248-12007

1
Out of stock

21

O-RING (D:1.9,ID:9.8)

09280-10016

1
Out of stock

22

PLUG (26X9)

09259-26011

1

$10.69

In stock

23

O-RING (D:3.1,ID:22.7)

09280-22008

1
Out of stock

24

COVER

11360-35G00

1

$31.68

In stock

25

BOLT

01547-0630A

2

$2.48

In stock

26

WASHER

08322-0106A

2
Out of stock
