Description

Price

1

CRANKSHAFT ASSY

12200-49H20

$422.06

2

.CONNROD

12161-49H10-0B0

$125.00

3

.PIN,CRANK

12210-49H10

$67.55

4

.BEARING (30X38X18)

09263-30060-0B0

$97.92

5

.CRANKSHAFT RH

12220-49H10

$288.77

6

.CRANKSHAFT LH

12261-49H10

$314.03

7

BEARING (30X63X16)

09262-30122

$86.33

8

SEAL,OIL (30X40X7) | RH This part replaces 09283-30061.

09283-30076

$15.32

9

OIL SEAL (30X40X6) | LH

09283-30069

$9.37

10

RETAINER,CRANKSHAFT BEARING

24741-37F00

$4.03

11

SCREW (6X15)

09139-06209

$2.63

12

PISTON This part replaces 12111-49H20-0F0.

12111-46K00-0F0

$188.45

13

RING SET,PISTON

12140-49810

$44.80

14

PIN,PISTON

12151-49H10

$26.78

15

CIRCLIP (OD:18)

09381-16001

$1.67

16

PISTON KIT | OPT This part replaces 12110-49830.

12110-46810

$181.59

17

GEAR,PRIMARY DRIVE (NT:19)

21111-49H00

$95.33

18

NUT

09140-16037

$14.30

19

WASHER

09164-16002

$3.16

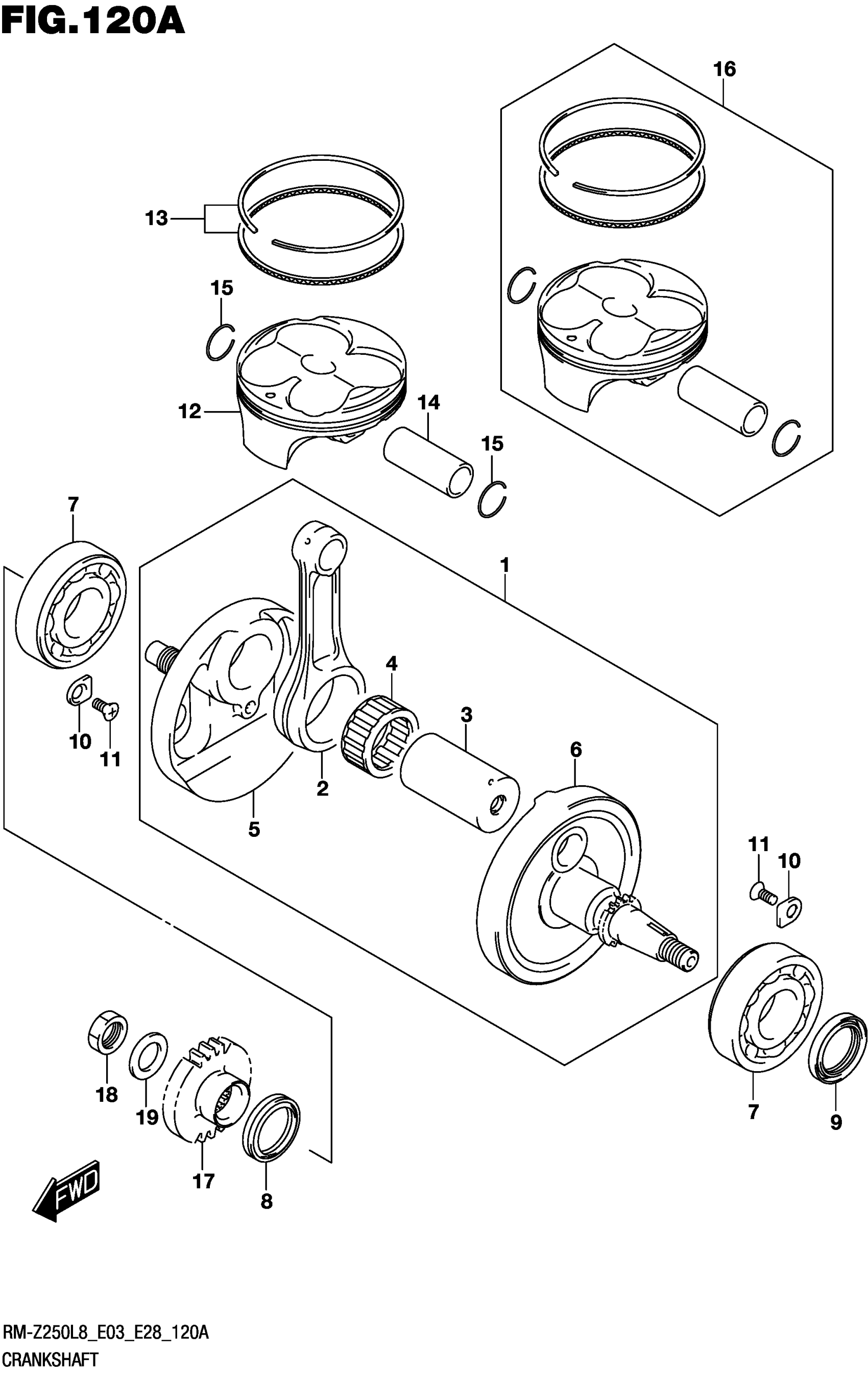

Suzuki RM-Z250L8 (2018) CRANKSHAFT Diagram
