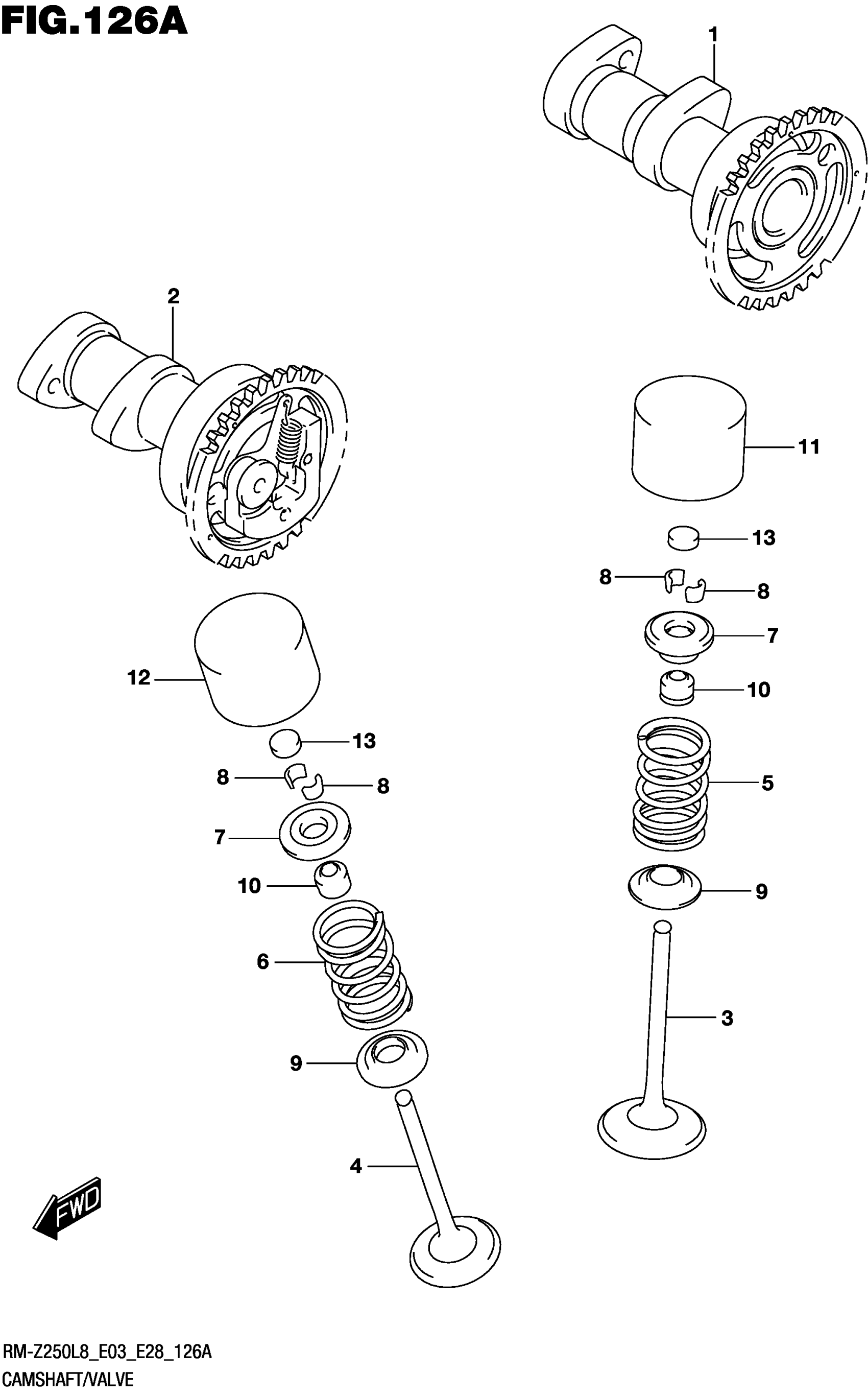

Suzuki RM-Z250L8 (2018) CAMSHAFT/VALVE Diagram

#

Description
Price

1

CAM SHAFT

12710-49H40

$262.12

2

CAMSHAFT,EXHAUST (NT:32)

12720-49H40

$341.28

3

VALVE,INTAKE

12911-49H10

$81.62

4

VALVE,EXHAUST

12912-10H00

$78.11

5

SPRING,VALVE

12921-02H01

$13.69

6

SPRING,VALVE

12921-41G00

$13.36

7

RETAINER, VALVE SPRING

12931-04K00

$10.81

8

COTTER,VALVE

12932-32C00

$2.03

9

SEAT,VALVE SPRING

12933-29G00

$7.07

10

SEAL,OIL (4.5X10X8)

09289-04002

$6.49

11

TAPPET

12891-47H10

$90.75

12

TAPPET

12891-35F00

$61.70

13-1

SHIM,TAPPET (T:1.20)

12892-05C00-120

$11.60

13-2

SHIM,TAPPET (T:1.225,GREEN)

12892-05C00-122

$8.88

13-3

SHIM,TAPPET (T:1.25)

12892-05C00-125

$11.83

13-4

SHIM,TAPPET (T:1.275)

12892-05C00-128

$8.45

13-5

SHIM,TAPPET (T:1.30)

12892-05C00-130

$10.06

13-6

SHIM,TAPPET (T:1.325)

12892-05C00-132

Unavailable

13-7

SHIM,TAPPET (T:1.35)

12892-05C00-135

$10.06

13-8

SHIM,TAPPET (T:1.375)

12892-05C00-138

Unavailable

13-9

SHIM,TAPPET (T:1.40)

12892-05C00-140

$11.83

13-10

SHIM,TAPPET (T:1.425)

12892-05C00-142

$11.83

13-11

SHIM,TAPPET (T:1.45)

12892-05C00-145

$9.87

13-12

SHIM,TAPPET (T:1.475)

12892-05C00-148

$11.83

13-13

SHIM,TAPPET (T:1.50)

12892-05C00-150

$11.83

13-14

SHIM,TAPPET (T:1.525)

12892-05C00-152

Unavailable

13-15

SHIM,TAPPET (T:1.55)

12892-05C00-155

$9.69

13-16

SHIM,TAPPET (T:1.575)

12892-05C00-158

$8.83

13-17

SHIM,TAPPET (T:1.60)

12892-05C00-160

$9.69

13-18

SHIM,TAPPET (T:1.625)

12892-05C00-162

$9.05

13-19

SHIM,TAPPET (T:1.65)

12892-05C00-165

$9.69

13-20

SHIM,TAPPET (T:1.675)

12892-05C00-168

$11.83

13-21

SHIM,TAPPET (T:1.70)

12892-05C00-170

$11.60

13-22

SHIM,TAPPET (T:1.725)

12892-05C00-172

$11.83

13-23

SHIM,TAPPET (T:1.75)

12892-05C00-175

$9.87

13-24

SHIM,TAPPET (T:1.775)

12892-05C00-178

$8.88

13-25

SHIM,TAPPET (T:1.80)

12892-05C00-180

$11.38

13-26

SHIM,TAPPET (T:1.825)

12892-05C00-182

$9.08

13-27

SHIM,TAPPET (T:1.85)

12892-05C00-185

$11.83

13-28

SHIM,TAPPET (T:1.875)

12892-05C00-188

$11.83

13-29

SHIM,TAPPET (T:1.90)

12892-05C00-190

$11.83

13-30

SHIM,TAPPET (T:1.925)

12892-05C00-192

$11.83

13-31

SHIM,TAPPET (T:1.95)

12892-05C00-195

$11.83

13-32

SHIM,TAPPET (T:1.975)

12892-05C00-198

$11.83

13-33

SHIM,TAPPET (T:2.00)

12892-05C00-200

$11.60

13-34

SHIM,TAPPET (T:2.025)

12892-05C00-202

Unavailable

13-35

SHIM,TAPPET (T:2.05)

12892-05C00-205

$11.83

13-36

SHIM,TAPPET (T:2.075)

12892-05C00-208

Unavailable

13-37

SHIM,TAPPET (T:2.10)

12892-05C00-210

$11.83

13-38

SHIM,TAPPET (T:2.125)

12892-05C00-212

Unavailable

13-39

SHIM,TAPPET (T:2.15)

12892-05C00-215

$11.83

13-40

SHIM,TAPPET (T:2.175)

12892-05C00-218

$11.83

13-41

SHIM,TAPPET (T:2.20)

12892-05C00-220

$11.83

14

SHIM SET,TAPPET | OPT

12800-05850

Unavailable

14

SHIM SET,TAPPET | NOT ILLUSTRATED

12800-05850

Unavailable

14

SHIM SET,TAPPET

12800-05850

Unavailable

15

.CASE,TAPPET SHIM | OPT

99000-69491

Unavailable

15

.CASE,TAPPET SHIM | NOT ILLUSTRATED

99000-69491

Unavailable
