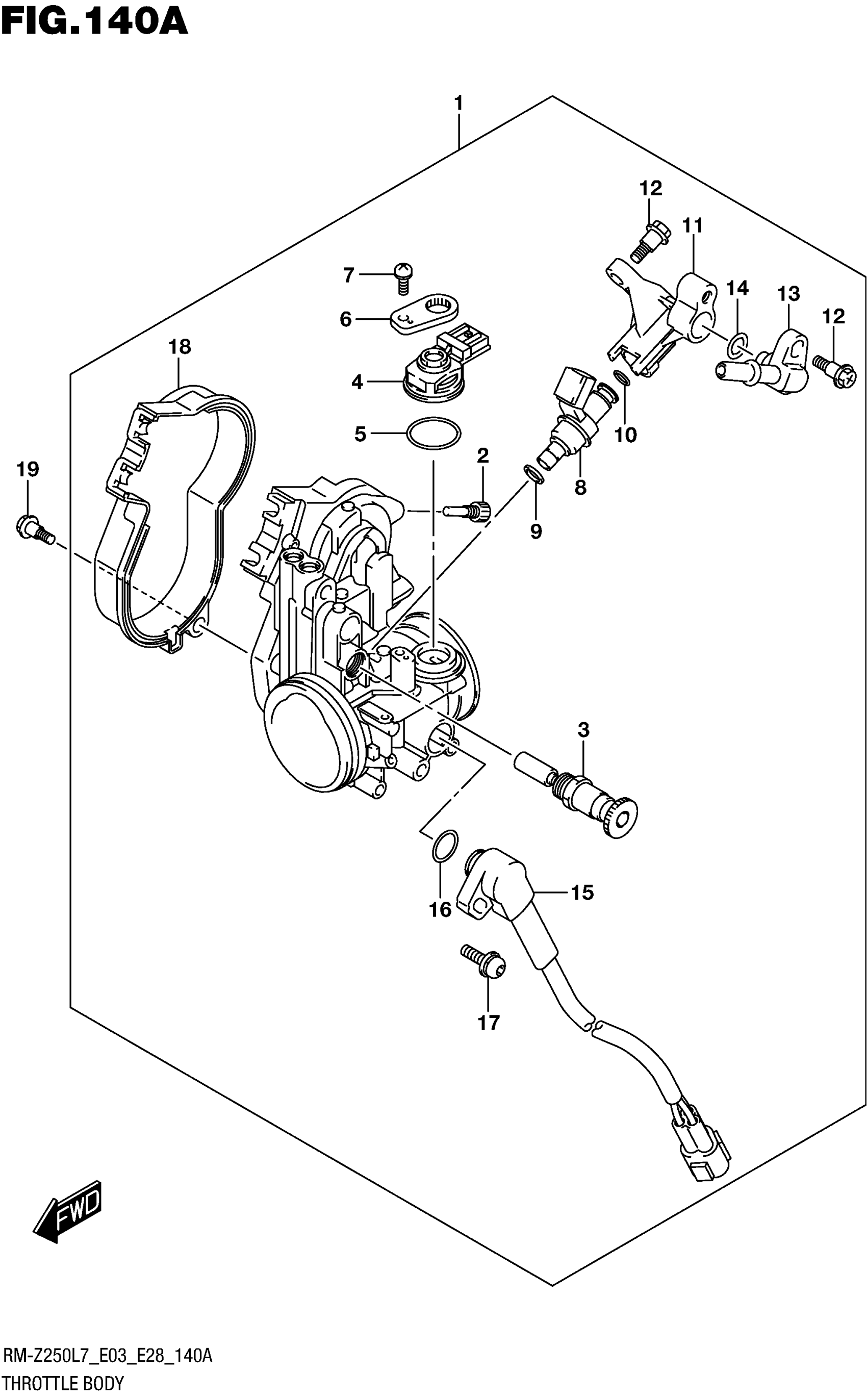

Suzuki RM-Z250L7 (2017) THROTTLE BODY Diagram

#

Description
Price

1

BODY ASSY, THROTTLE

13041-49H20

$676.45

2

.SCREW

13296-28H00

Unavailable

3

.STARTER

13410-28H10

$73.72

4

.SENSOR, MAP

15620-05H00

$273.45

5

.O RING This part replaces 15621-05H00.

15621-05H01

$9.05

6

.PLATE, STAY

13565-28H10

$23.37

7

.SCREW

13601-15F20

Unavailable

8

.INJECTOR ASSY

15710-49H00

$321.43

9

.RING,SEAL

15722-21H00

$11.25

10

.O-RING

15721-21H00

$9.09

11

.FUEL PIPE

13471-49H00

Unavailable

12

.SCREW

13452-28H10

$6.75

13

.JOINT

13685-28H00

$40.82

14

.O-RING

15721-24F00

$9.09

15

.SENSOR ASSY, THROTTLE

13580-49H00

$246.78

16

.O RING

13575-40F00

$4.09

17

.SCREW

13605-40F00

$3.71

18

.COVER, THROTTLE

13484-49H00

Unavailable

19

SCREW

13601-28H00

$3.78
