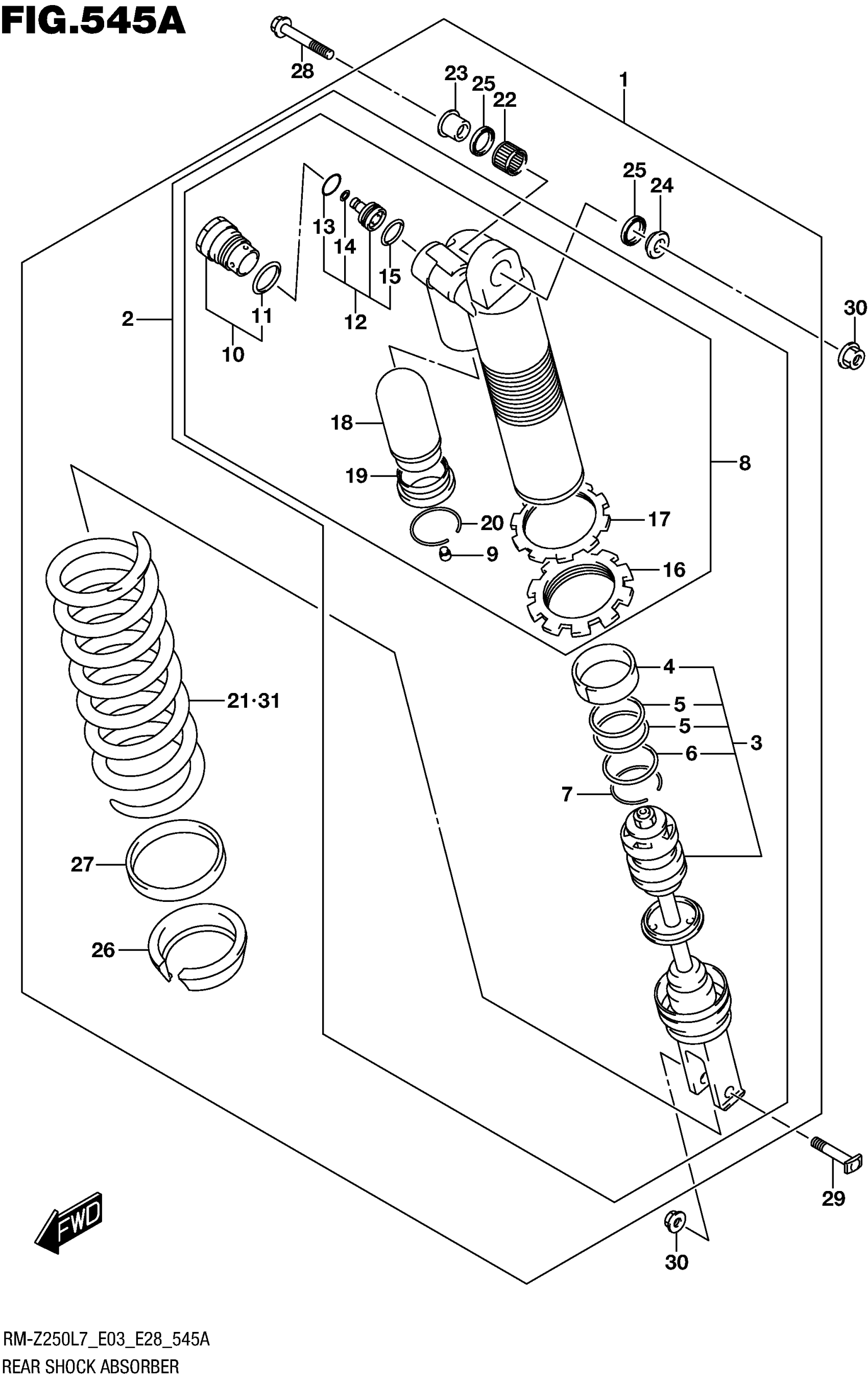

Suzuki RM-Z250L7 (2017) REAR SHOCK ABSORBER Diagram

#

Description
Price

1

ABSORBER ASSY,RR SHOCK (BLACK

62100-49HF0-019

$1,161.58

2

.DAMPER ASSY

62210-49HF0

Unavailable

3

..ROD SUBASSY, PISTON

62120-49HE0

Unavailable

4

...RING, PISTON

62131-49HE0

$30.95

5

...O RING

62152-49HE0

$4.05

6

...O RING

62153-49HE0

$4.05

7

..RING, STOP

62279-49HE0

$2.10

8

..CYLINDER

62160-49HE0

Unavailable

9

...CAP, VALVE AIR

51294-40400

$8.12

10

...VALVE ASSY

62130-49HE0

$205.52

11

....O RING

62133-49HE0

$4.45

12

...VALVE, COMP

62170-49HE0

$39.47

13

....WASHER

62135-49HE0

$2.10

14

....O RING

62136-49HE0

$1.98

15

....O RING

62134-49HE0

$2.80

16

...GUIDE, SPRING

62191-49HE0

$21.65

17

...NUT

62194-49HE0

$16.68

18

...BLADER

62273-49HE0

$30.95

19

...GUIDE

62275-49HE0

$51.17

20

...RING, STOP

62277-49HE0

$2.80

21

.SPRING | (STD K=5.5)

62211-49HE0

Unavailable

22

.BEARING (16X22X12)

09263-16033

$20.26

23

.SPACER,UPPER BRG,R

62684-36F00

$23.07

24

.SPACER,UPPER BRG,L

62685-36F00

$13.36

25

OIL SEAL (16X22X2.5)

09284-16005

$6.95

26

.GUIDE SPRING

62222-49HE0

$15.52

27

.GUIDE SPRING

62221-49HE0

$55.55

28

BOLT,RR SHOCK ABSORBER UPR

62311-28H00

$9.85

29

BOLT,RR SHOCK ABSORBER LWR

62221-37F30

$7.48

30

NUT

09159-10067

$6.11

31-1

SPRING, REAR | OPT

62211-49HG0

Unavailable

31-1

SPRING | (SOFT K=5.3)

62211-49HG0

Unavailable

31-2

SPRING, REAR | OPT

62211-49HH0

Unavailable

31-2

SPRING | (HARD K=5.7)

62211-49HH0

Unavailable

31-3

SPRING, REAR | OPT

62211-49HJ0

Unavailable

31-3

SPRING | (HARD K=5.9)

62211-49HJ0

Unavailable
