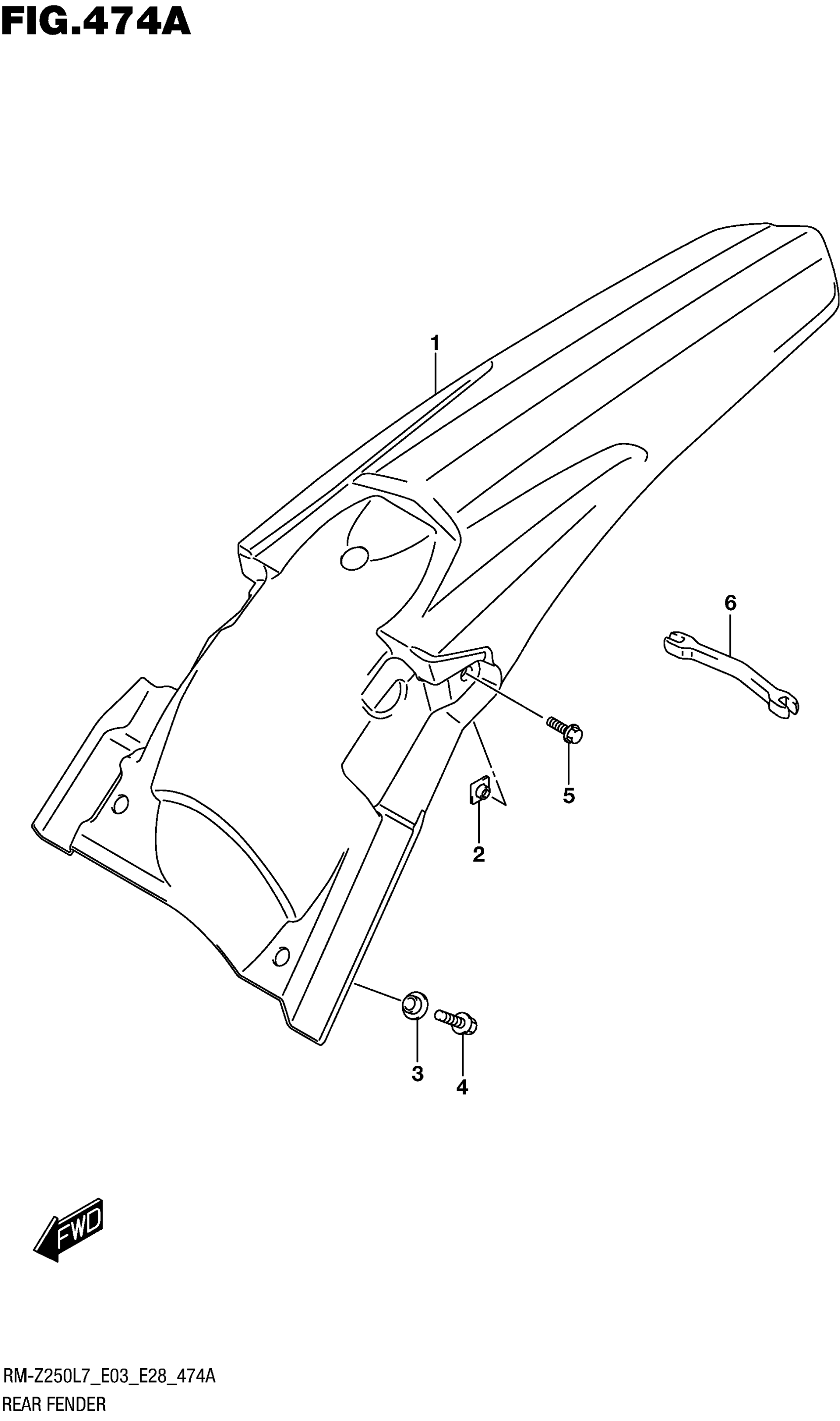

Suzuki RM-Z250L7 (2017) REAR FENDER Diagram

#

Description

Price

1

FENDER, REAR (YELLOW)

63111-49H01-YU1

$64.40

2

NUT, REAR FENDER REAR

63131-02J00

$13.18

3

WASHER, FRONT FENDER

63191-28H00

$10.28

4

BOLT

01547-0620A

$2.03

5

BOLT

01547-0616A

$2.03

6

SPANNER (6.4X6.8)

09813-00134

$18.48
