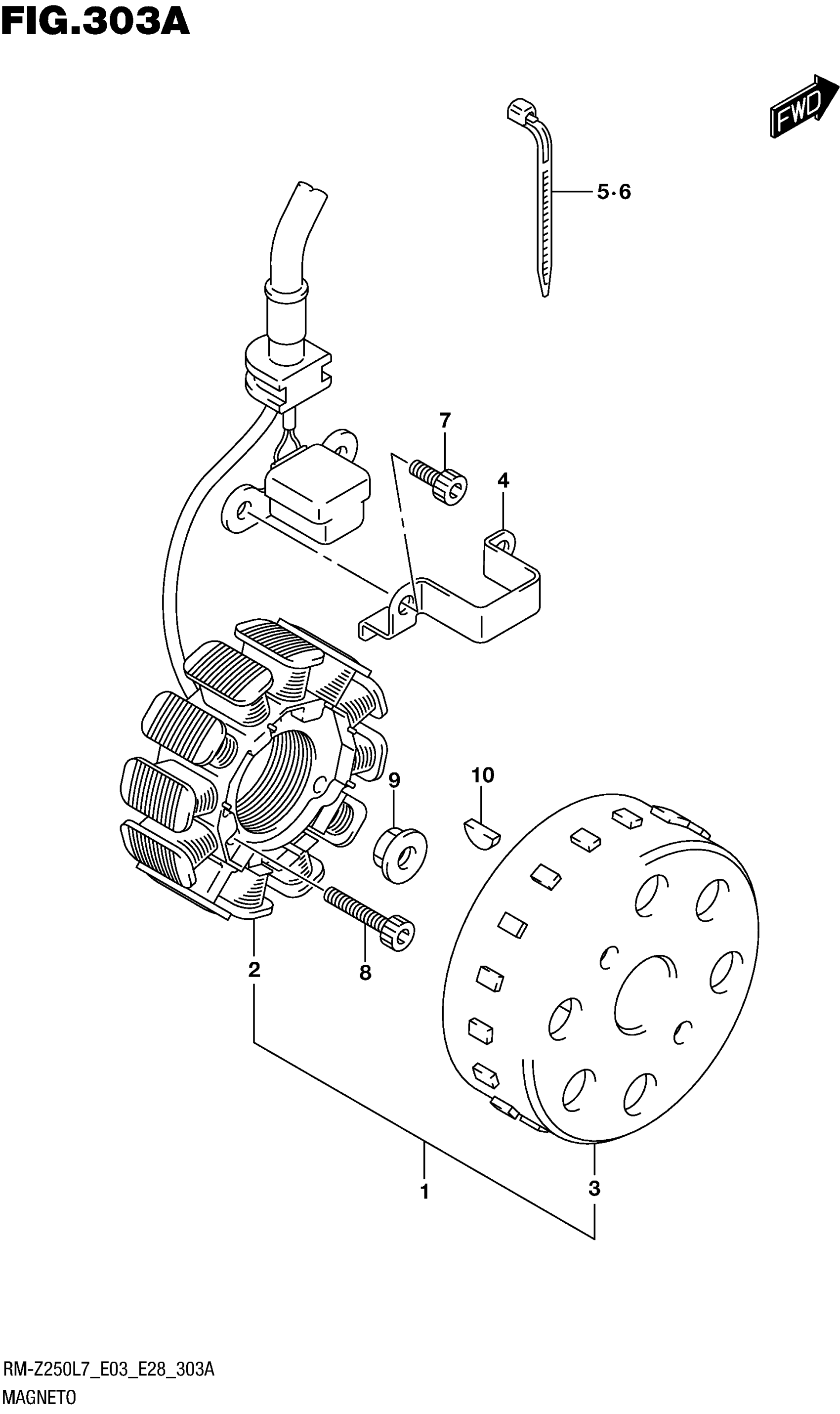

Suzuki RM-Z250L7 (2017) MAGNETO Diagram

#

Description
Price

1

MAGNETO ASSY

32100-49H00

$934.35

2

STATOR ASSY,MAGNETO This part replaces 32101-28HA0.

32101-28HA1

$317.77

3

.ROTOR ASSY, MAGNETO

32102-49H00

$575.82

4

CLAMP, MAGNETO LEAD

32371-35G00

Unavailable

5

CLAMP (L:165)

09407-18402

$2.19

6

CLAMP (L:235)

09407-25401

$4.66

7

BOLT

07130-0512A

$2.19

8

BOLT

07130-0525A

$2.28

9

NUT

08316-1012A

$2.26

10

KEY

08341-31039

$1.89
