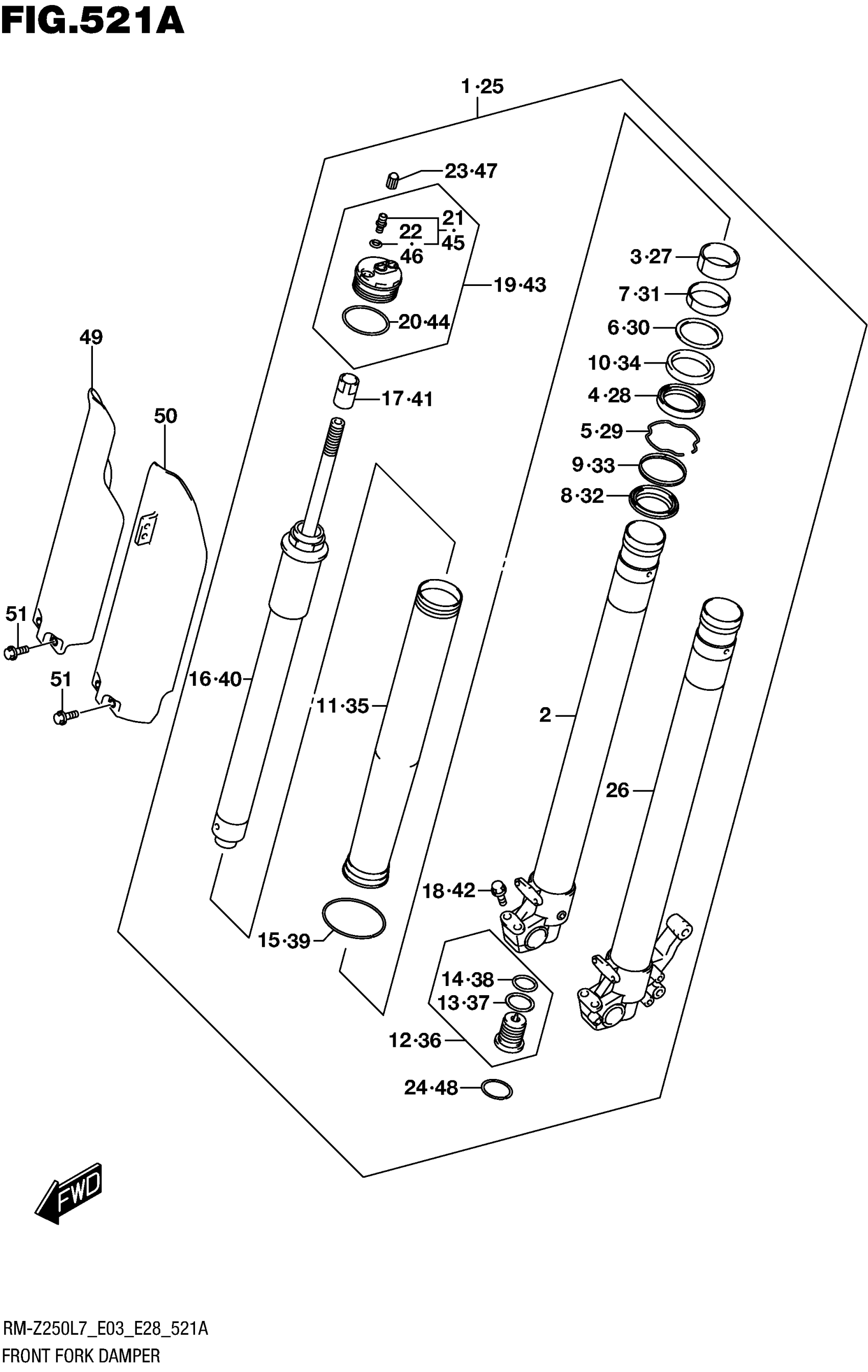

Find the part on the Front Fork Damper diagram for your 2017 Suzuki RM-Z250L7, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2017 Suzuki RM-Z250L7 Front Fork Damper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

DAMPER ASSY, FRONT FORK RH

51103-49H40

1
Out of stock

2

.TUBE, INNER RH

51110-49HE0

1
Out of stock

3

.PISTON

51127-49HE0

1
Out of stock

4

.SEAL, OIL

51153-49HE0

1
Out of stock

5

.RING, OIL SEAL STOPPER

51156-49HE0

1
Out of stock

6

.WASHER

51158-49HE0

1
Out of stock

7

.METAL, SLIDE

51167-49HE0

1
Out of stock

8

.SEAL, DUST

51173-49HE0

1
Out of stock

9

.SCRAPER

51152-49HE0

1
Out of stock

10

.COLLAR

51155-49HE0

1
Out of stock

11

.TUBE, OUTER

51130-49HE0

1
Out of stock

12

.ADJUSTER

51284-49HE0

1
Out of stock

13

..GASKET

51148-01B20

1
Out of stock

15

.STOPPER RING

51211-49H40

1
Out of stock

16

.CYLINDER

51190-49HE0

1
Out of stock

17

..NUT

51814-49H40

1
Out of stock

18

.BOLT

51166-24F60

2
Out of stock

19

.CAP

51351-49HE0

1
Out of stock

20

1

$3.13

In stock

21

..VALVE ASSY, AIR

51290-49HE0

1
Out of stock

22

.O RING (D:1.9,ID:5.7) This part replaces 51117-14210.

09280-06005

1
Out of stock

23

CAP, VALVE This part replaces 51294-14400.

51294-20400

1
Out of stock

24

.RING, STOPPER

51285-49HE0

—
Out of stock

25

DAMPER ASSY, FRONT FORK LH

51104-49H40

1
Out of stock

26

.TUBE, INNER LH

51120-49HE0

1
Out of stock

27

.PISTON

51127-49HE0

1
Out of stock

28

.SEAL, OIL

51153-49HE0

1
Out of stock

29

.RING, OIL SEAL STOPPER

51156-49HE0

1
Out of stock

30

.WASHER

51158-49HE0

1
Out of stock

31

.METAL, SLIDE

51167-49HE0

1
Out of stock

32

.SEAL, DUST

51173-49HE0

1
Out of stock

33

.SCRAPER

51152-49HE0

1
Out of stock

34

.COLLAR

51155-49HE0

1
Out of stock

35

.TUBE, OUTER

51130-49HE0

1
Out of stock

36

.ADJUSTER

51284-49HE0

1
Out of stock

37

..GASKET

51148-01B20

1
Out of stock

39

.STOPPER RING

51211-49H40

1
Out of stock

40

.CYLINDER

51190-49HE0

1
Out of stock

41

..NUT

51814-49H40

1
Out of stock

42

.BOLT

51166-24F60

2
Out of stock

43

.CAP

51351-49HE0

1
Out of stock

44

1

$3.13

In stock

45

..VALVE ASSY, AIR

51290-49HE0

1
Out of stock

46

.O RING (D:1.9,ID:5.7) This part replaces 51117-14210.

09280-06005

1
Out of stock

47

CAP, VALVE This part replaces 51294-14400.

51294-20400

1
Out of stock

48

.RING, STOPPER

51285-49HE0

—
Out of stock

49

PROTECTOR,FRONT FORK,R

51501-28H60

1
Out of stock

50

PROTECTOR,FRONT FORK,L

51510-28H70

1
Out of stock

51

BOLT (6X10)

09111-06098

6
Out of stock
