Description

Price

1

CHAIN, CAM SHAFT DRIVE

12760-10H00

$43.74

2

GUIDE, CAM CHAIN NO.1

12771-49H00

$31.12

3

GUIDE,CAM CHAIN NO.2 This part replaces 12782-35G00.

12782-35G01

$11.95

4

RETAINER, CAM CHAIN GUIDE NO.

12773-49H00

$7.27

5

.BOLT

07120-0610A

$2.30

6

TENSIONER,CAM C This part replaces 12811-49H00.

12811-49H01

$58.65

7

SPACER, CAM CHAIN TENSIONER

12812-35G00

$15.17

8

BOLT This part replaces 07130-0616A.

07130-0616B

$2.39

9

ADJUSTER ASSY, TENSIONER

12830-49H00

$105.88

10

.PLUG, ADJUSTER

12833-49H00

Unavailable

11

.GASKET, TENSIONER ADJUSTER

12837-49H00

$5.02

12

O RING (D:1.9,ID:18.8)

09280-19001

$1.49

13

BOLT (6X25)

07130-0625A

$2.62

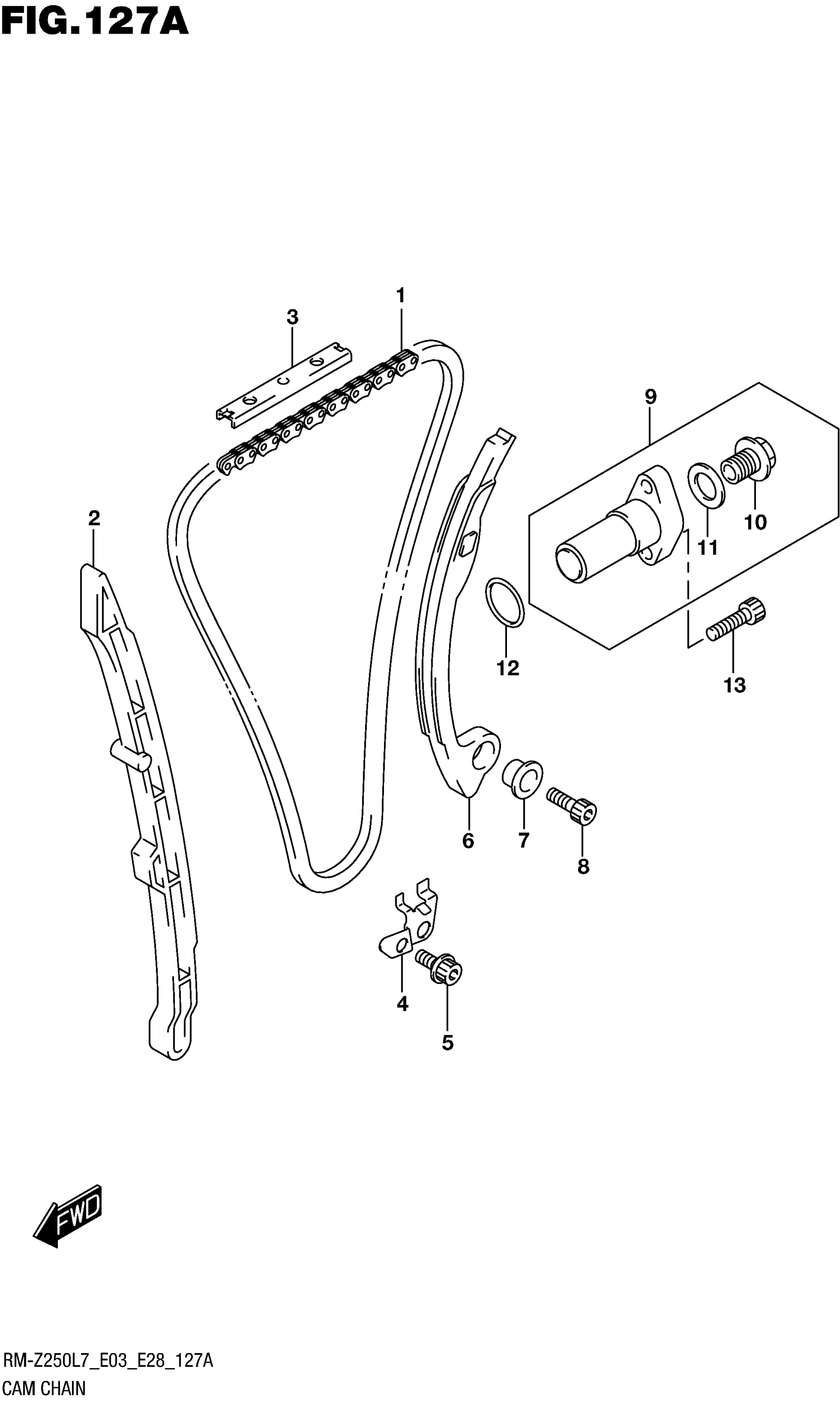

Suzuki RM-Z250L7 (2017) CAM CHAIN Diagram
