2016 Suzuki RM-Z250L6 Water Pump Diagram

← All diagrams

Find the part on the Water Pump diagram for your 2016 Suzuki RM-Z250L6, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

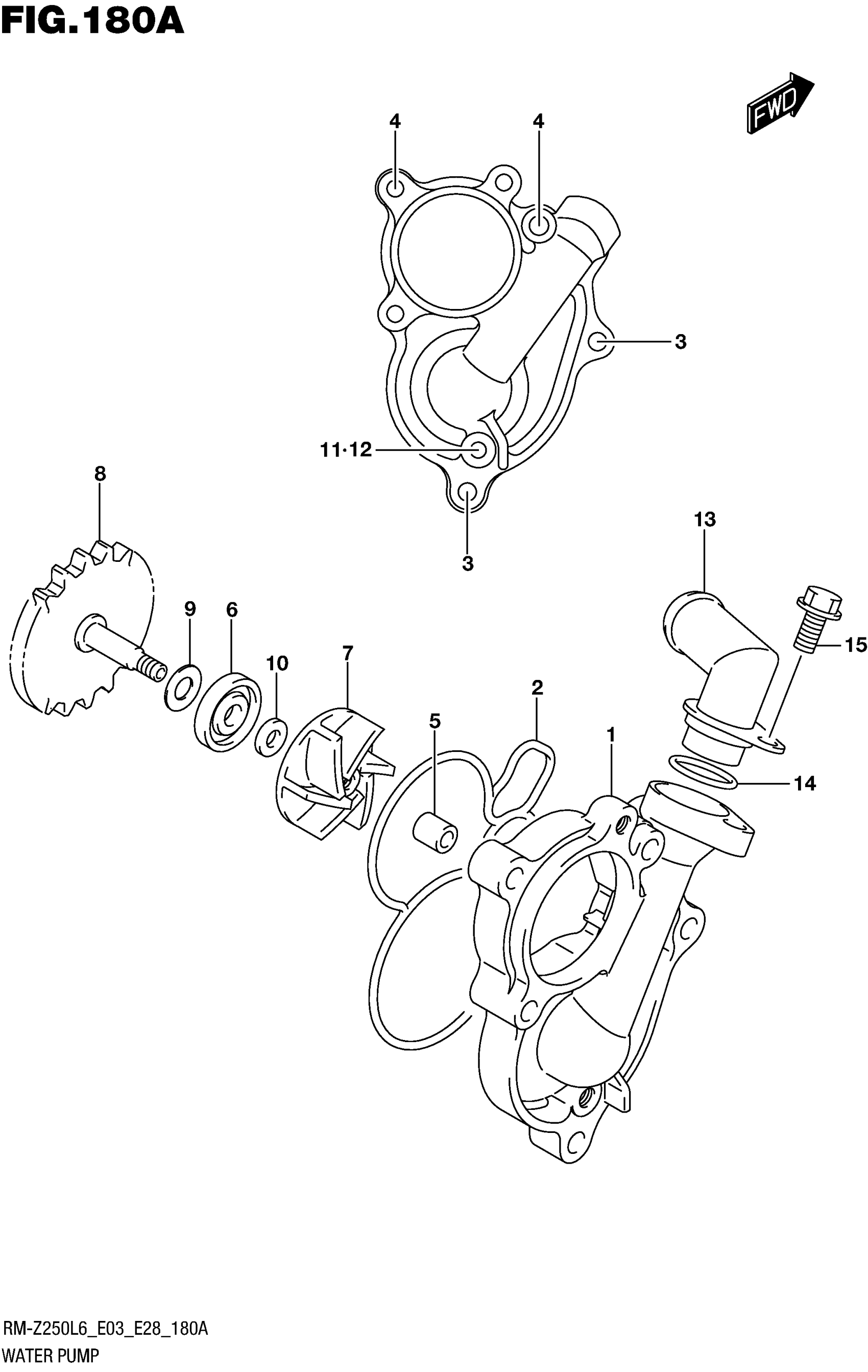

2016 Suzuki RM-Z250L6 Water Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CASE, WATER PUMP

17411-10H10

1
Out of stock

2

O RING, WATER PUMP CASE

17431-10H00

1
Out of stock

3

BOLT

01547-0660A

2
Out of stock

4

BOLT

01547-0665A

2
Out of stock

5

PIN

04211-09109

2
Out of stock

6

SEAL, WATER PUMP OIL

17461-37F00

1
Out of stock

7

IMPELLER, WATER PUMP

17491-10H00

1
Out of stock

8

SHAFT, WATER PUMP (NT:22)

17510-10H10

1
Out of stock

9

SHIM (8X18X0.5)

09181-08186

1
Out of stock

10

SHIM (6X14X1)

09181-06003

1
Out of stock

11

.BOLT

07120-0610A

1
Out of stock

12

GASKET (5.8X13X1.2)

09168-06023

1
Out of stock

13

JOINT, WATER PUMP

17857-49H00

1
Out of stock

14

O-RING This part replaces 09280-17010.

09280-17012

1
Out of stock

15

BOLT

01547-0612A

1
Out of stock
