Description

Price

1

CRANKSHAFT ASSY

12200-49H20

$399.76

2

.ROD, CONNECTING

12161-49H10-0B0

$140.40

3

.PIN, CRANK

12210-49H10

$76.23

4

.BEARING (30X38X18)

09263-30060-0B0

$106.40

5

.CRANKSHAFT, RH

12220-49H10

$321.35

6

.CRANKSHAFT, LH

12261-49H10

$349.47

7

BEARING (30X63X16)

09262-30122

$80.62

8

SEAL,OIL (30X40X7) | RH This part replaces 09283-30061.

09283-30076

$14.23

9

OIL SEAL (30X40X6) | LH

09283-30069

$8.75

10

RETAINER, CRANKSHAFT BEARING

24741-37F00

$5.33

11

SCREW (6X15)

09139-06209

$1.00

12

PISTON This part replaces 12111-49H20-0F0.

12111-46K00-0F0

$209.70

13

RING SET, PISTON

12140-49810

$50.57

14

PIN, PISTON

12151-49H10

$30.22

15

SNAP RING

09381-16001

$1.49

16

PISTON KIT | OPT This part replaces 12110-49830.

12110-46810

$176.15

17

GEAR, PRIMARY DRIVE (NT:19)

21111-49H00

$107.60

18

NUT

09140-16037

$15.53

19

WASHER

09164-16002

$3.00

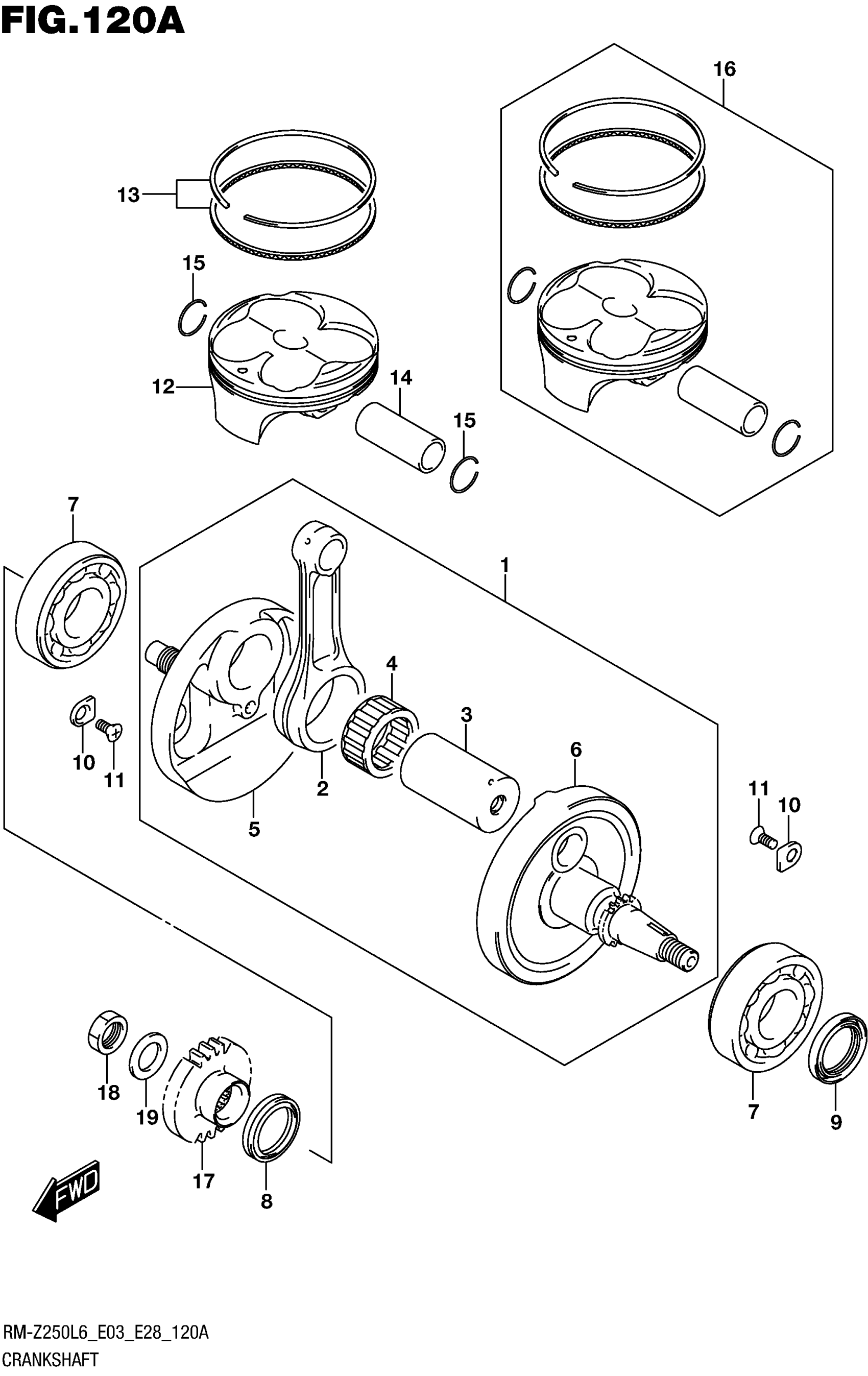

Suzuki RM-Z250L6 (2016) CRANKSHAFT Diagram
