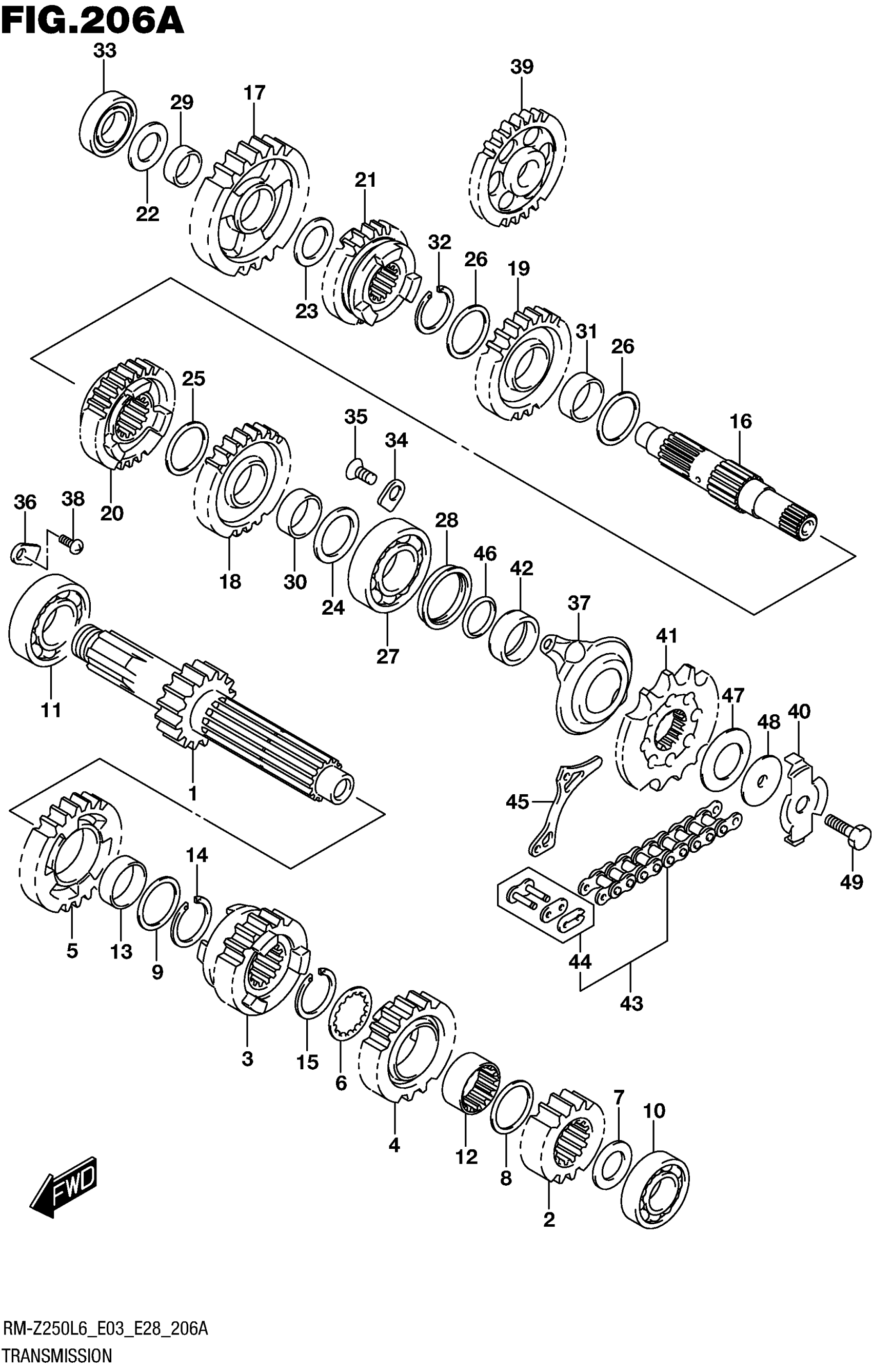

Suzuki RM-Z250L6 (2016) TRANSMISSION Diagram

#

Description
Price

1

SHAFT, COUNTER (NT:13)

24120-49H10

$211.35

2

GEAR, 2ND DRIVE (NT:17)

24221-49H10

Unavailable

3

GEAR, 3RD DRIVE (NT:17)

24231-49H10

$107.35

4

GEAR, 4TH DRIVE (NT:21)

24241-49H10

$89.93

5

GEAR, 5TH DRIVE (NT:22)

24251-49H10

$98.47

6

WASHER, 4TH DRIVE GEAR

24243-49H00

$7.20

7

SHIM (17X28X1)

09181-17195

$3.07

8

SHIM (24X30X1)

09181-24008

$4.10

9

SHIM (24X30X1)

09181-24008

$4.10

10

BEARING (17X40X9.5) | LH

09262-17040

$21.21

11

BEARING (22X50X14) | RH

09262-22018

$25.60

12

BUSH, 4TH DRIVE GEAR

24242-49H00

$31.50

13

BUSH, 5TH DRIVE GEAR

24252-49H00

$25.80

14

CIRCLIP

09380-24007

$4.17

15

CIRCLIP

09380-24007

$4.17

16

SHAFT, DRIVE

24131-49H10

$165.03

17

GEAR, 1ST DRIVEN (NT:28)

24311-49H10

$109.92

18

GEAR, 2ND DRIVEN (NT:30)

24321-49H10

Unavailable

19

GEAR, 3RD DRIVEN (NT:25)

24331-49H10

$109.92

20

GEAR, 4TH DRIVEN (NT:26)

24341-49H10

$115.40

21

GEAR, 5TH DRIVEN (NT:24)

24351-49H10

$116.35

22

SHIM (17X28X1)

09181-17195

$3.07

23

SHIM (20X28X1)

09181-20167

$2.62

24

SHIM (22X30X1)

09181-22167

$2.96

25

SHIM (24X30X1)

09181-24008

$4.10

26

SHIM (24X30X1)

09181-24008

$4.10

27

BEARING (22X52X15) | LH

09262-22040

$75.50

28

OIL SEAL (28X38X7.5)

09289-28012

$9.68

29

BUSH (20X24X10)

09300-20037

$17.90

30

BUSH, 2ND DRIVEN GEAR

24323-49H00

$31.50

31

BUSH, 2ND DRIVEN GEAR

24323-49H00

$31.50

32

CIRCLIP

09380-24007

$4.17

33

BEARING (17X40X12) | RH

09262-17023

$16.75

34

RETAINER

24741-20A00

$2.81

35

SCREW (6X12)

09126-06011

$2.03

36

RETAINER

24741-21A00

$2.81

37

RETAINER, DRIVE SHAFT OIL SEA

24751-49H00

$15.32

38

SCREW (6X12)

09125-06122

$2.44

39

GEAR, KICK STARTER IDLE

26260-49H10

$92.23

40

WASHER, ENG SPROCKET BOLT LOC

27516-28H00

$12.57

41

SPROCKET, ENGINE (NT:13)

27511-49H10

$33.12

42

SPACER, ENGINE SPROCKET

27531-49H00

$24.62

43

CHAIN ASSY,DRIVE This part replaces 27600-43D02-114.

27600-46K00-114

$140.88

44

.JOINT SET,CHAIN This part replaces 27620-43D02.

27620-46K00

$9.57

45

PLATE, FRONT CHAIN GUIDE

27641-28H00

$10.98

46

D RING, SPROCKET SPACER

27515-49H00

$6.10

47

WASHER, ENGINE SPROCKET WAVE

27514-49H00

$6.90

48

WASHER, ENGINE SPROCKET

27513-49H00

$15.18

49

BOLT, ENGINE SPROCKET

27517-28H00

$7.77
