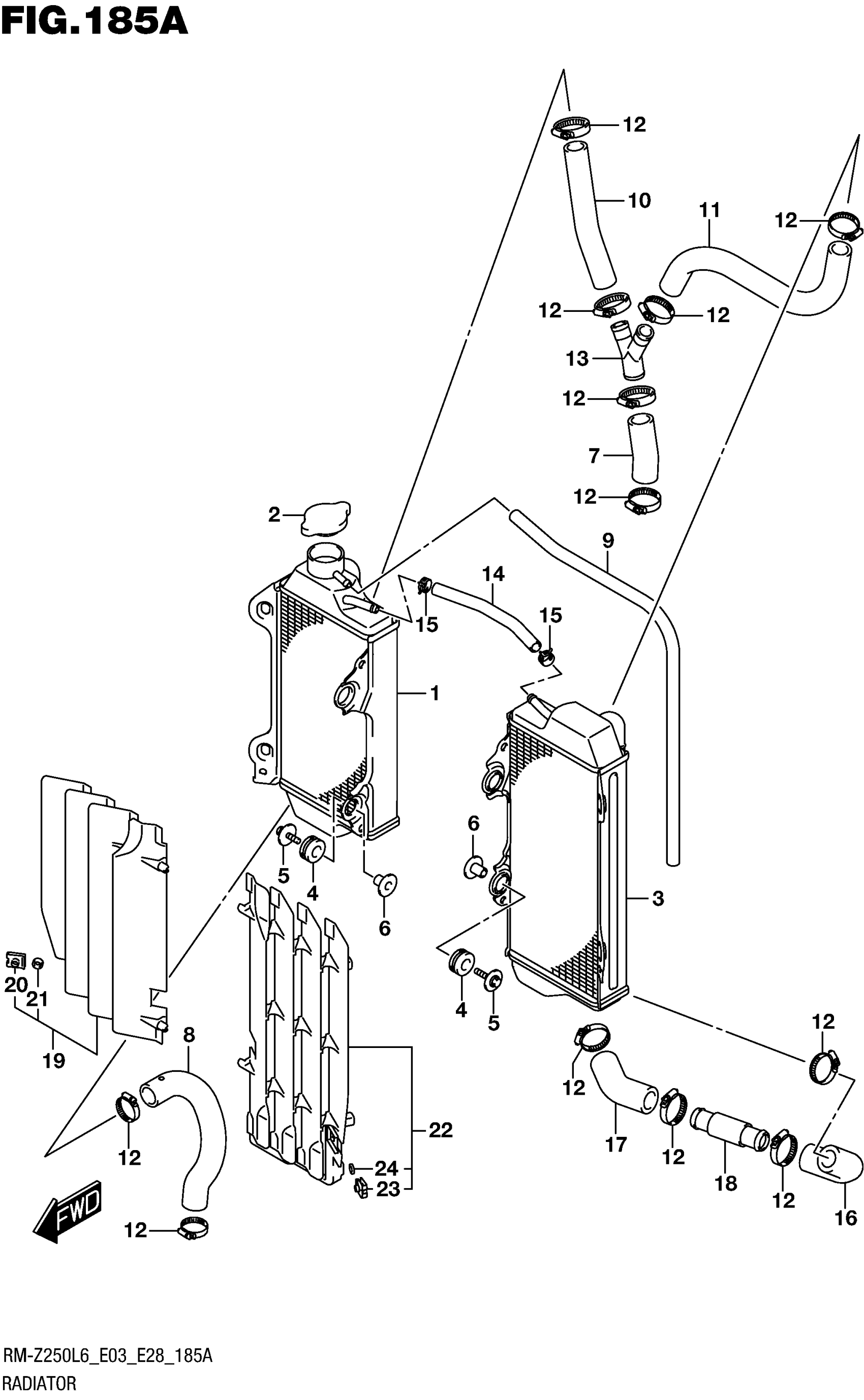

Suzuki RM-Z250L6 (2016) RADIATOR Diagram

#

Description
Price

1

RADIATOR, WATER, RH

17710-49H10

$465.30

2

CAP, RADIATOR (1.1)

17730-08J00

$42.50

3

RADIATOR, WATER, LH

17720-49H10

$437.12

4

CUSHION, RADIATOR SUPPORT

17787-19A00

$3.56

5

BOLT (6X25)

09116-06186

$2.61

6

SPACER (6.5X10.5X14.1)

09180-06243

$5.46

7

HOSE, INLET NO.1

17851-49H10

$15.00

8

HOSE, OUTLET NO.1

17852-49H10

$19.50

9

HOSE (5X8X2000) | L:1000->700 This part replaces 09351-50801-00A.

09351-50803-00B

$9.10

10

HOSE, INLET NO.2

17853-49H10

$18.80

11

HOSE, INLET NO.3

17854-49H20

$24.15

12

CLAMP

09402-28513

$6.88

13

JOINT, RADIATOR HOSE

17856-28H00

$19.50

14

HOSE, BYPASS

17855-35G00

$12.47

15

CLIP

09401-11415

$2.23

16

HOSE, OUTLET NO.2

17855-49H10

$13.73

17

HOSE, OUTLET NO.3

17858-49H00

$10.83

18

PIPE, OUTLET

17859-49H00

Unavailable

19

LOUVER, RADIATOR RH

17801-49H00

$34.60

20

.NUT

09148-06017

$3.20

21

.SPACER (6.2X10X2.2)

09180-06129

$2.12

22

LOUVER, RADIATOR LH

17802-49H00

$35.25

23

.NUT

09148-06017

$3.20

24

.SPACER (6.2X10X2.2)

09180-06129

$2.12
