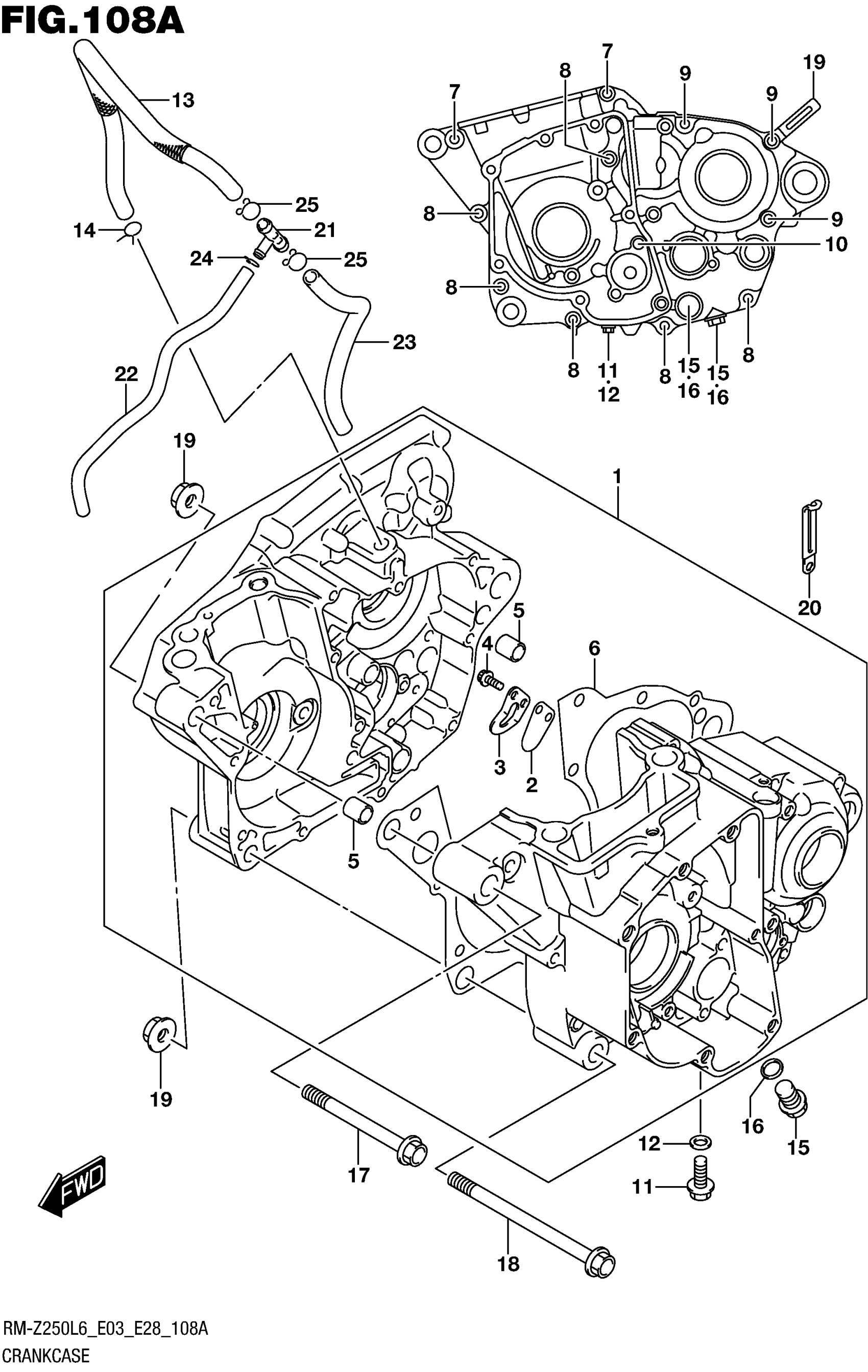

Suzuki RM-Z250L6 (2016) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET

11301-49841

$902.07

2

.VALVE, CRANKCASE REED

11322-35G10

$8.30

3

.STOPPER, CRANKCASE REED VALV

11323-35G00

$9.42

4

BOLT

07120-0512A

$2.28

5

.PIN (10.4X13X18)

09206-13020

$2.34

6

.GASKET, CRANKCASE

11481-49H10

$16.58

7

.BOLT

01547-0640A

$2.32

8

BOLT

01547-0650A

$2.46

9

.BOLT

01547-0670A

$2.92

10

.BOLT

01547-0680A

$3.30

11

BOLT (8X20) | OIL DRAIN

09103-08393

$2.50

12

GASKET (8.2X14X1)

09168-08016

$1.65

13

HOSE, BREATHER

11332-49H30

$16.10

14

CLIP

09401-13301

$2.70

15

PLUG (12X20) | OIL DRAIN

09247-12106

$2.73

16

GASKET (12.1X16.2X3.7)

09168-12002

$1.59

17

BOLT (10X80)

09103-10448

$6.17

18

BOLT (10X120)

09103-10388

$5.78

19

NUT

09159-10122

$7.63

20

CLAMP (L:45)

09404-06429

$1.83

21

JOINT, BREATHER HOSE

11331-28H00

$6.52

22

HOSE, BREATHER NO.3

09352-60103-220

$5.20

23

HOSE(9X13X600) | L:600->210 This part replaces 09352-90133-600.

09352-90134-600

$13.28

24

CLIP This part replaces 09401-10410.

09401-10401

$1.49

25

CLIP

09401-13102

$3.15
