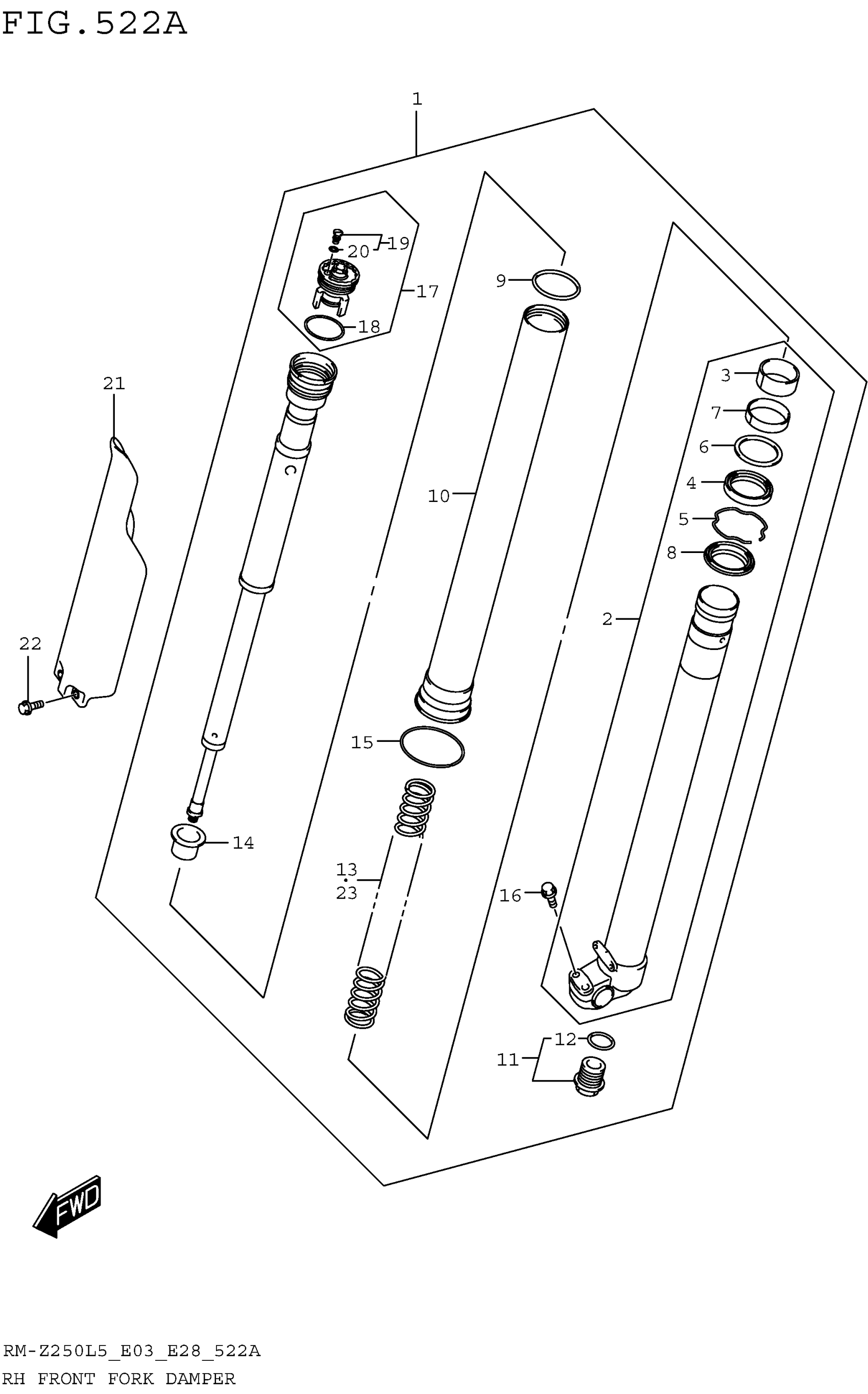

Suzuki RM-Z250L5 (2015) RH FRONT FORK DAMPER Diagram

#

Description
Price

1

DAMPER ASSY, FRONT FORK RH

51103-49H30

Unavailable

2

TUBE, INNER RH

51110-49H20

$475.42

3

BUSH, SLIDE

51121-28H30

$10.30

4

SEAL, OIL

51153-28H30

$21.57

5

RING, OIL SEAL STOPPER

51156-28H30

$7.07

6

SPACER, SEAL

51158-28H30

$3.30

7

BUSH, GUIDE

51167-28H30

$11.28

8

SEAL, DUST

51173-28H30

$11.87

9

..O-RING

51118-28H30

$5.48

10

TUBE, OUTER

51130-49H30

$604.87

11

BOLT, CENTER

51140-28H30

$134.08

12

O RING

62131-27C40

$5.43

13

SPRING, FRONT

51171-28H60

Unavailable

14

GUIDE SPRING

51182-28H30

Unavailable

15

STOPPER RING

51211-37FC0

$11.50

16

BOLT

51328-37F80

$6.64

17

BOLT, ADJUSTER

51360-28H30

Unavailable

18

..O-RING,FORK BOLT

51187-01H00

$6.21

19

..BOLT,PLUG

51357-36F20

$15.77

20

...O-RING

51358-28E30

$4.83

21

PROTECTOR,FRONT FORK,R

51501-28H60

$65.53

22

BOLT (6X10)

09111-06098

$3.30

23

SPRING, FRONT (SOFT) | OPT

51171-28H50

Unavailable

23

SPRING, FRONT (HARD) | OPT

51171-28H70

$119.21
