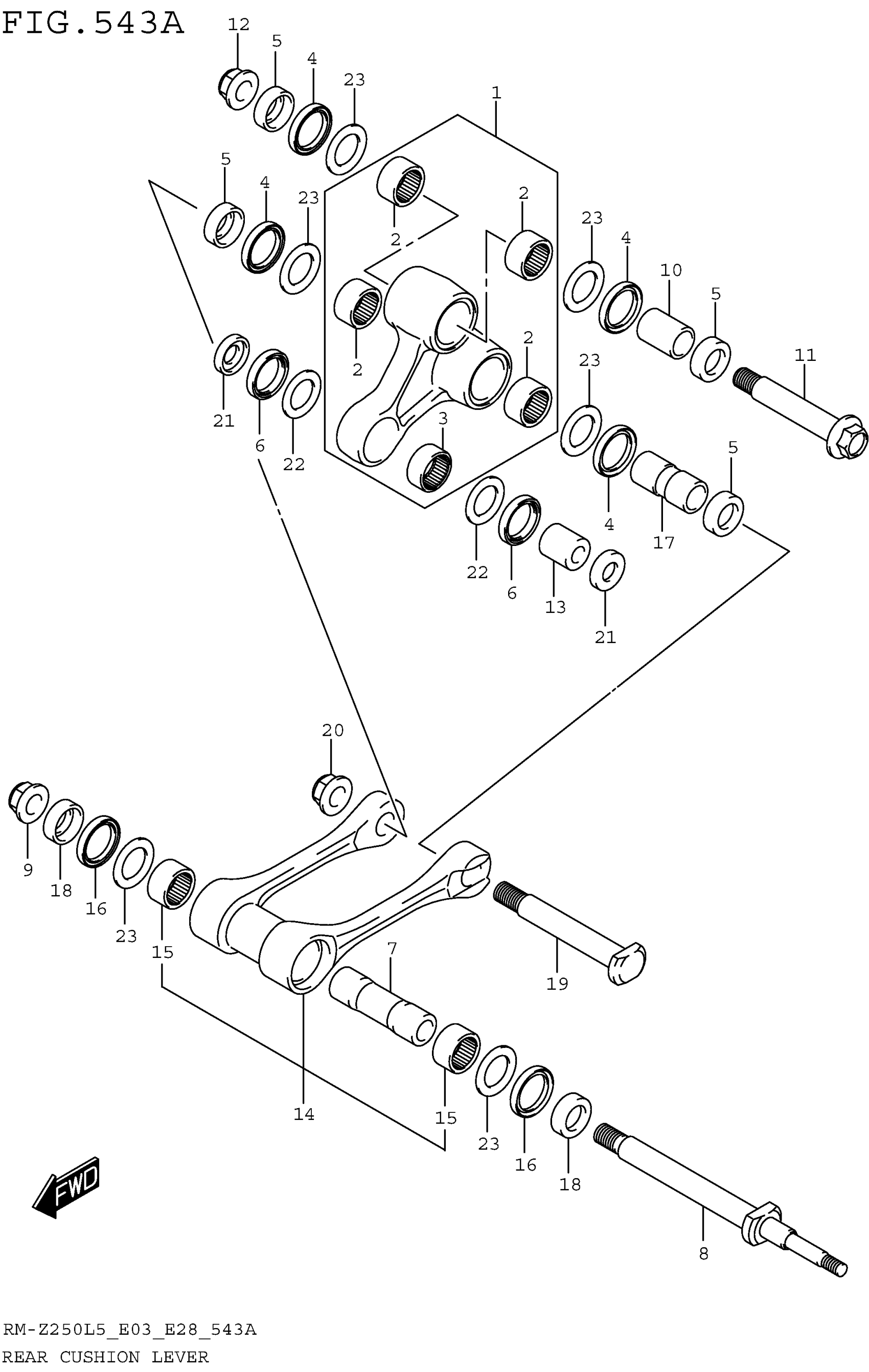

Suzuki RM-Z250L5 (2015) REAR CUSHION LEVER Diagram

#

Description
Price

1

LEVER SET, REAR CUSHION

62601-28810

$350.48

2

BEARING (20X26X14)

09263-20090

$16.23

3

BEARING (16X22X12)

09263-16033

$20.26

4

SEAL,OIL (24X31X5)

09285-24001

$7.22

5

SPACER, RR CUSHION LEVER SIDE

62647-28H20

$20.98

6

SEAL,OIL (22X28X4)

09284-22003

$10.19

7

SPACER, REAR CUSHION ROD

62317-28H20

$37.33

8

BOLT, REAR CUSHION ROD

62621-28H10

$58.53

9

NUT

09159-12056

$7.37

10

SPACER, LEVER UPPER

62648-28H20

$21.78

11

BOLT, LEVER UPPER

62658-28H00

$17.20

12

NUT

09159-12056

$7.37

13

SPACER, LEVER FRONT

62684-28H10

$24.52

14

ROD SET, REAR CUSHION

62601-28820

$337.85

15

BEARING (20X26X14)

09263-20090

$16.23

16

SEAL,OIL (24X31X5)

09285-24001

$7.22

17

SPACER,RR CUSHION LEVER LWR

62646-28H20

$27.77

18

SPACER, RR CUSHION LEVER SIDE

62647-28H20

$20.98

19

BOLT,RR CUSHION LEVER LWR

62657-28H00

$29.90

20

NUT

09159-12056

$7.37

21

SPACER, LEVER FRONT SIDE

62686-28H10

$24.52

22

SHIM (16X28X0.5)

09181-16214

$2.76

23

WASHER

08211-20301

$2.35
