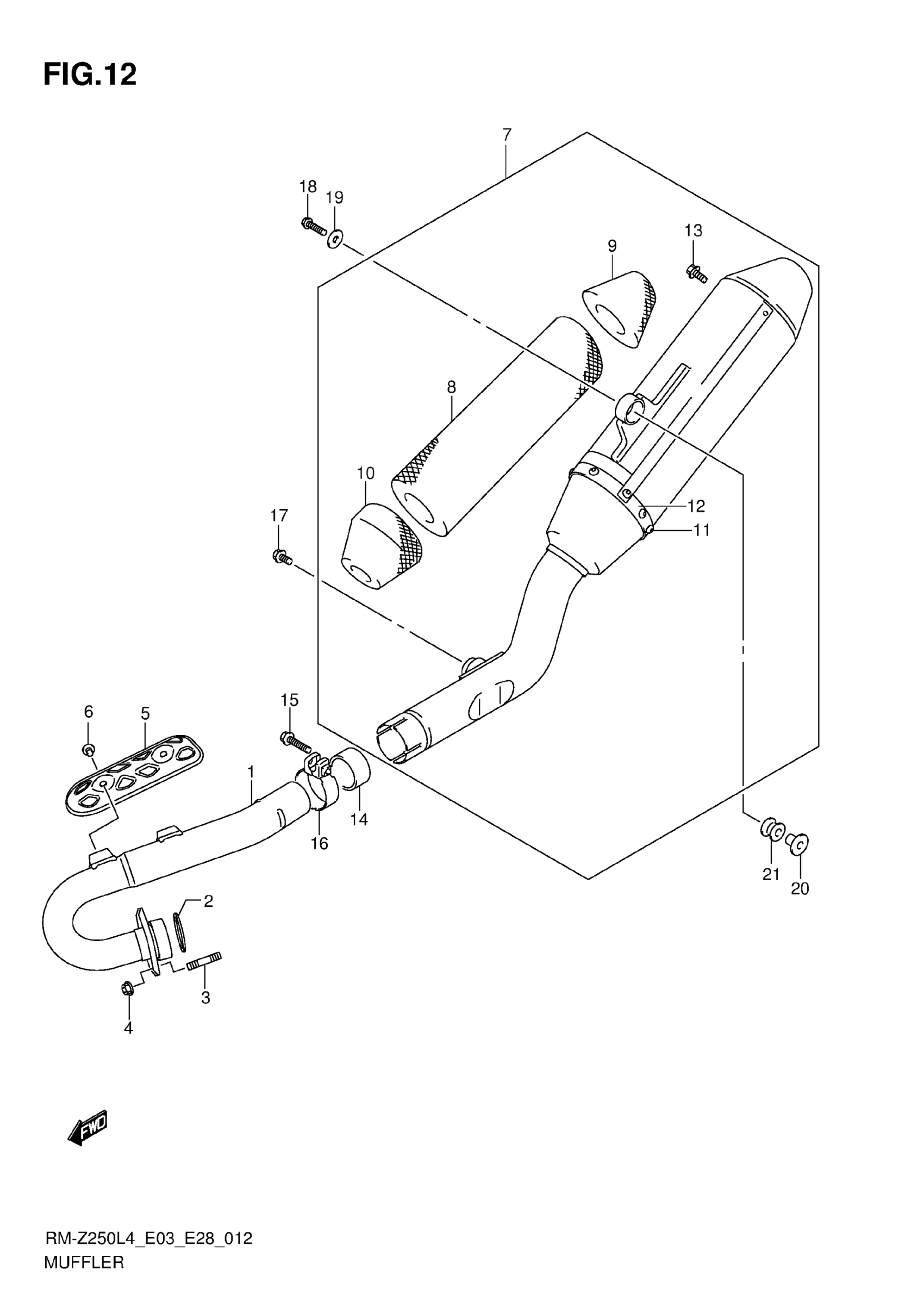

Suzuki RM-Z250L4 (2014) MUFFLER Diagram

#

Description
Price

1

PIPE, EXHAUST

14150-49H30

$208.62

2

GASKET, EXHAUST PIPE

14181-49H00

$10.98

3

STUD BOLT

01421-0816A

$1.78

4

NUT

08316-1008A

$2.45

5

COVER, EXHAUST PIPE

14186-49H10

$49.42

6

BOLT (6X8)

09139-06178

$4.72

7

BODY, MUFFLER

14310-49H40

Unavailable

8

SILENCER, MUFFLER

14351-49H30

Unavailable

9

GLASS WOOL, MUFFLER TAIL

14355-49H00

$25.25

10

GLASS WOOL, MUFFLER FRONT

14356-49H10

Unavailable

11

RIVET

14454-28H00

Unavailable

12

BAND

14781-35G10

$8.40

13

BOLT

01547-0612A

$2.03

14

CONNECTOR

14771-45G00

$25.76

15

BOLT (8X35)

09103-08391

$2.50

16

CLAMP, CONNECTOR

14469-29F00

$23.40

17

BOLT (8X20)

09103-08426

$4.60

18

BOLT (8X35)

09103-08391

$2.50

19

WASHER (8.5X26X1.6)

09160-08151

$1.99

20

SPACER (8.6X12X18.5)

09180-08157

$7.12

21

CUSHION

09320-12043

$7.98
