Description

Price

1

HANDLEBAR This part replaces 56111-35G10.

56111-35G11

$249.60

2

PAD SET, HANDLEBAR

56170-35G20

Unavailable

3

CABLE ASSY,CLUT This part replaces 58200-49H00.

58200-49H01

$41.58

4

BRACKET, CLUTCH CABLE

58630-49H00

$15.73

5

BOLT

01547-0612A

$2.03

6

CABLE SET,THROT This part replaces 58301-49H10.

58301-49H11

$66.78

7

GUIDE, THROTTLE & STARTER

58311-49H00

Unavailable

8

SCREW (6X16)

09139-06139

$3.23

9

CABLE ASSY,HOT This part replaces 58900-49H10.

58900-49H11

$40.55

10

CLAMP (L:145)

09407-14407

$3.57

11

CLAMP (L:154)

09407-17403

$4.91

12

CLAMP

09403-18307

$3.03

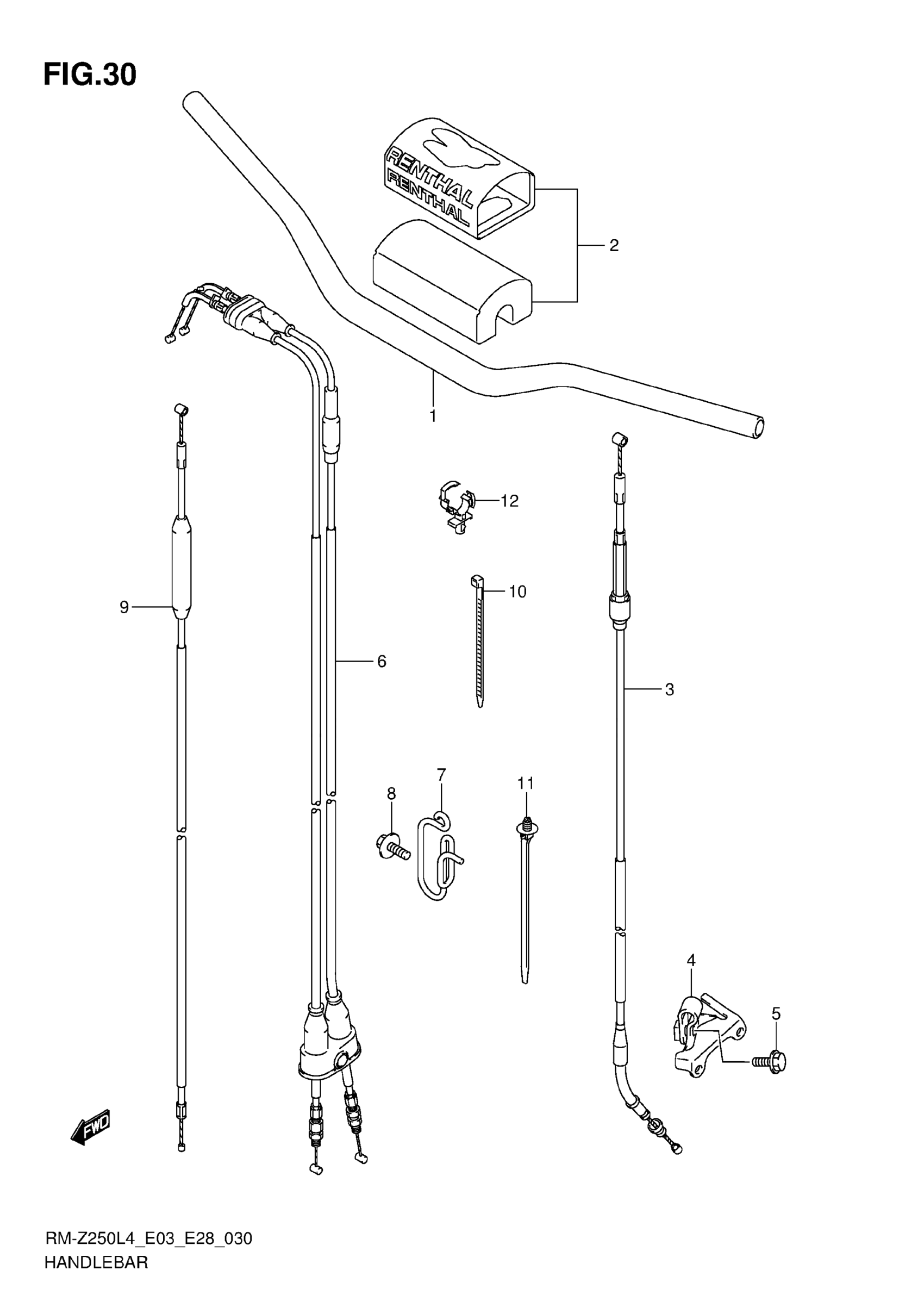

Suzuki RM-Z250L4 (2014) HANDLEBAR Diagram
