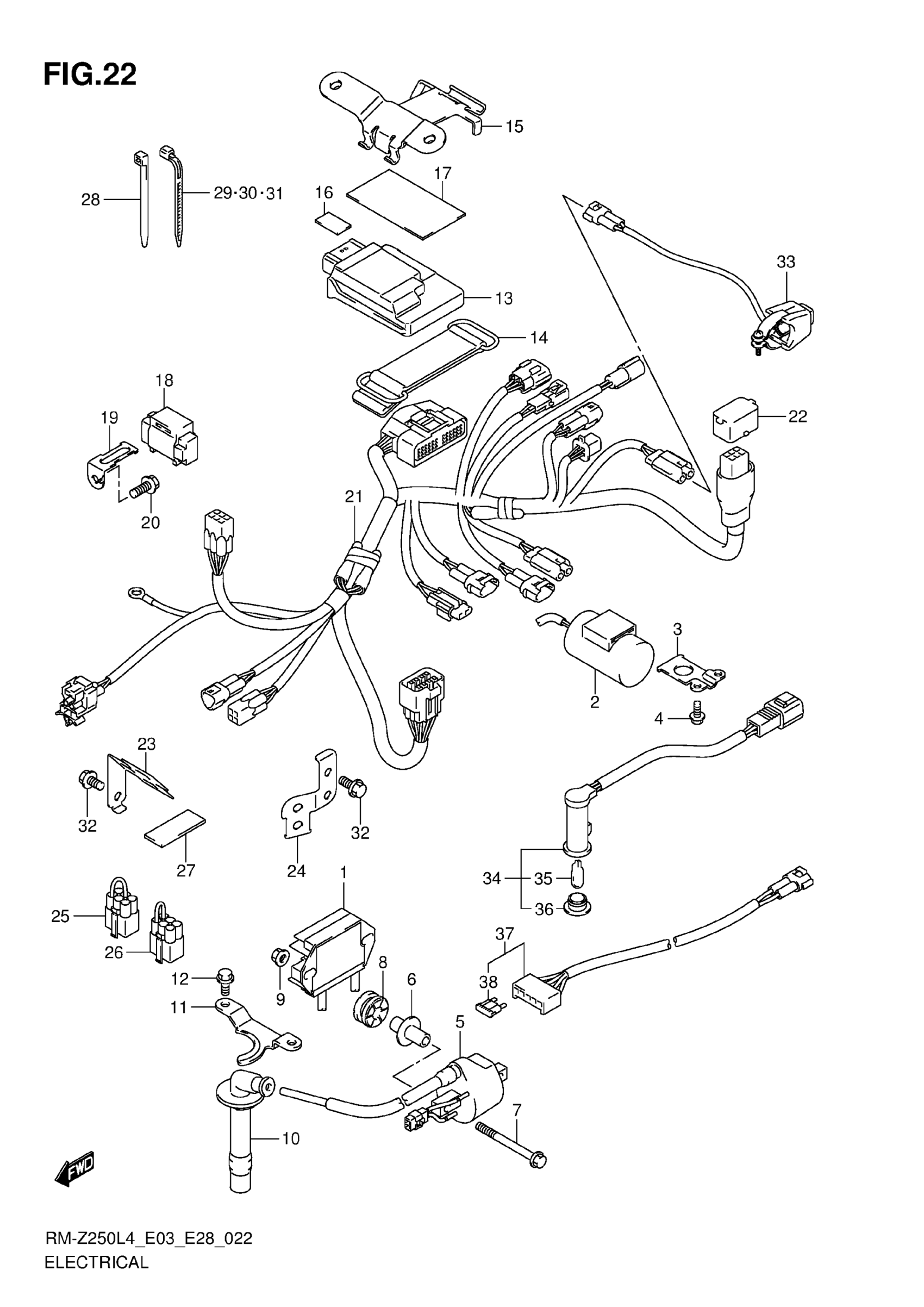

Suzuki RM-Z250L4 (2014) ELECTRICAL Diagram

#

Description
Price

1

RECTIFIER ASSY

32800-28H00

$235.75

2

CONDENSER ASSY

33640-28H00

$157.50

3

BRACKET, CONDENSER

33641-28H00

Unavailable

4

BOLT (6X10)

09103-06188

$2.90

5

COIL ASSY, IGNITION

33410-28H00

$98.96

6

SPACER, IGNITION COIL

33419-49H00

$11.32

7

BOLT (6X60)

09103-06253

$2.89

8

CUSHION

09320-10062

$4.77

9

NUT

08319-3106A

$2.03

10

CAP ASSY, SPARK PLUG

33510-49H00

$56.85

11

RETAINER, SPARK PLUG CAP

33414-49H00

$10.80

12

BOLT

01550-0610B

$2.42

13

CONTROL UNIT, FI This part replaces 32920-49HC0.

32920-49HC1

$650.27

14

BAND, FI CONTROL UNIT

32942-14301

$11.89

15

BRACKET, FI CONTROL UNIT

32931-49H00

$16.65

16

CUSHION

33652-36000

$2.30

17

CUSHION | CUT AS REQUIRED

33652-36000

$2.30

18

SENSOR ASSY,FUEL CUT

33960-06G10

$89.92

19

BRACKET, FUEL CUT SENSOR

33961-49H00

$6.88

20

SCREW This part replaces 02162-0616A.

02162-0616B

$2.03

21

HARNESS, WIRING

36610-49H20

$355.28

22

CAP,TS This part replaces 36654-46H00.

36654-46H01

$12.60

23

BRACKET, COUPLER

36672-49H00

Unavailable

24

BRACKET, COUPLER

36672-49H10

$9.48

25

WIRE,SHORT This part replaces 36852-28H00.

36852-28H01

$13.57

26

WIRE,SHORT This part replaces 36852-49H00.

36852-49H01

$11.48

27

PROTECTOR, WIRING HARNESS

36920-45G00

$3.03

28

CLAMP (L:95)

09407-10403

Unavailable

29

CLAMP (L:95)

09407-11401

$2.63

30

CLAMP (L:125)

09407-14403

$2.26

31

CLAMP (L:165)

09407-18402

$2.19

32

BOLT

01547-0610A

$2.45

33

SWITCH ASSY, ENGINE STOP

37820-49H00

$59.32

34

LAMP ASSY, FI INDICATOR | OPT

36380-28H00

$77.55

35

BULB (12V,3.4W) | OPT

09471-12028

$1.99

36

LENS (RED) | OPT

36321-28H00

$10.58

37

WIRE, BATTERY | OPT

36890-28H00

$47.33

38

FUSE (10A) | OPT

09481-10101

$2.07
