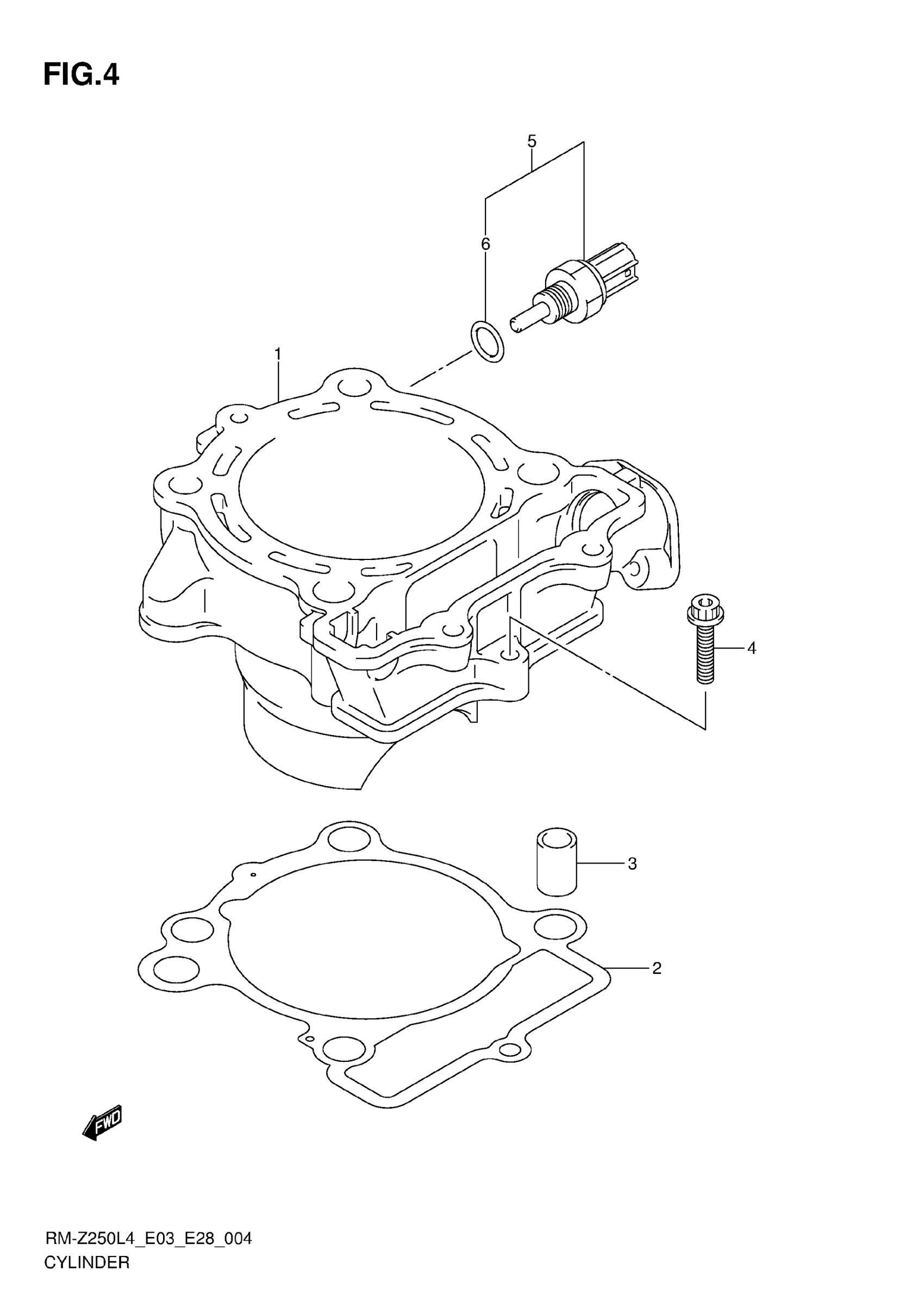

Suzuki RM-Z250L4 (2014) CYLINDER Diagram

#

Description

Price

1

CYLINDER This part replaces 11211-49H10-0F0.

11211-49H12-0F0

$503.03

2

GASKET, CYLINDER

11241-49H20

$11.30

3

PIN

04211-13189

$2.19

4

BOLT

07120-0625A

$2.50

5

SENSOR, WATER TEMPERATURE

13650-14G00

$52.02

6

.O RING

13655-14G00

$9.55
