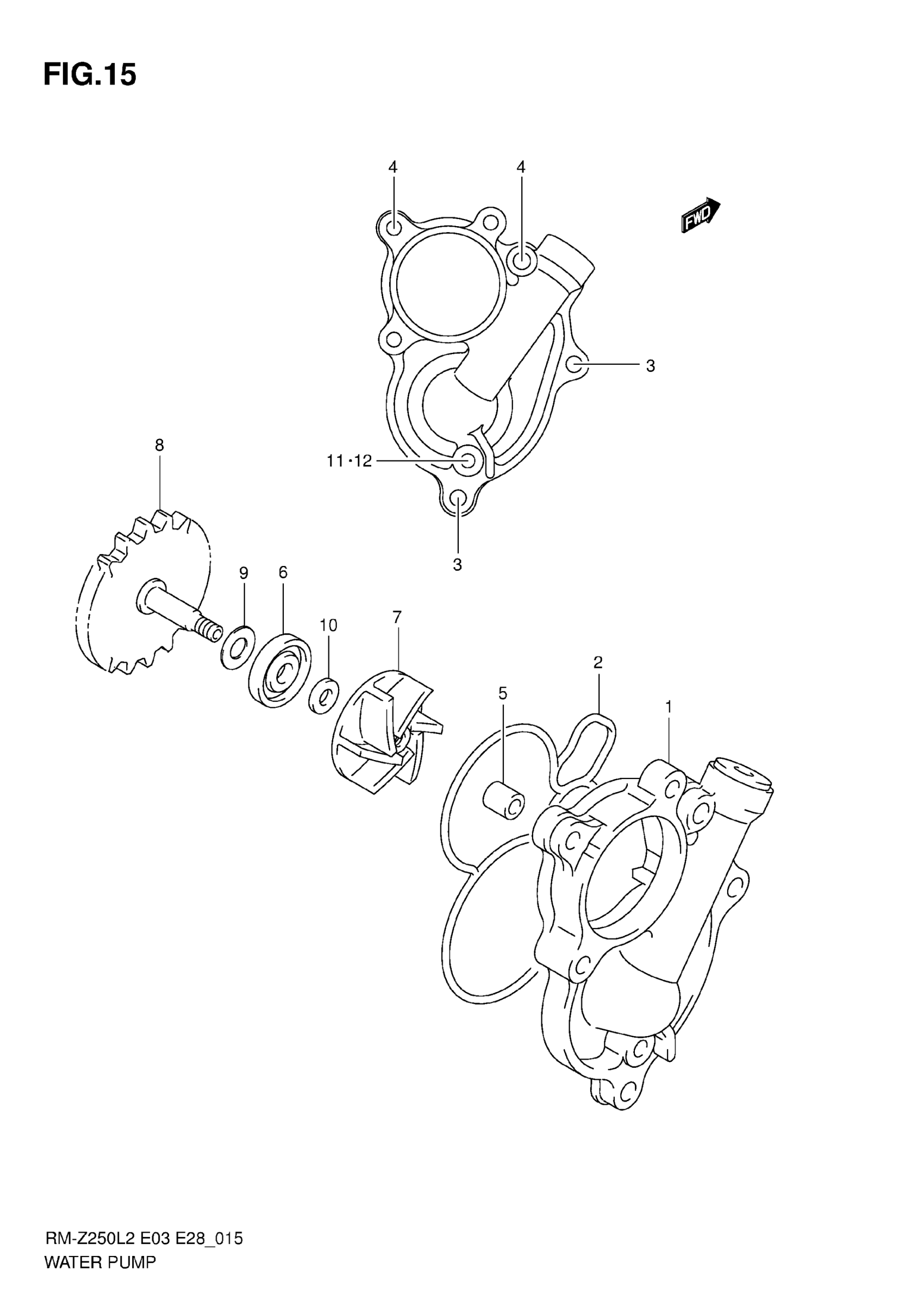

Suzuki RM-Z250L2 (2013) WATER PUMP Diagram

#

Description
Price

1

CASE, WATER PUMP & OIL FILTER

17410-10H00

$96.75

2

O RING, WATER PUMP CASE

17431-10H00

$12.03

3

BOLT (6X60)

01547-0660A

$2.82

4

BOLT

01547-0665A

$2.32

5

PIN

04211-09109

$1.65

6

SEAL, WATER PUMP OIL

17461-37F00

$7.69

7

IMPELLER, WATER PUMP

17491-10H00

$28.27

8

SHAFT, WATER PUMP

17510-10H02

$150.87

9

SHIM (8X18X0.5)

09181-08186

$1.99

10

SHIM (6X14X1)

09181-06003

$2.53

11

.BOLT

07120-0610A

$2.30

12

GASKET (5.8X13X1.2)

09168-06023

$2.35
