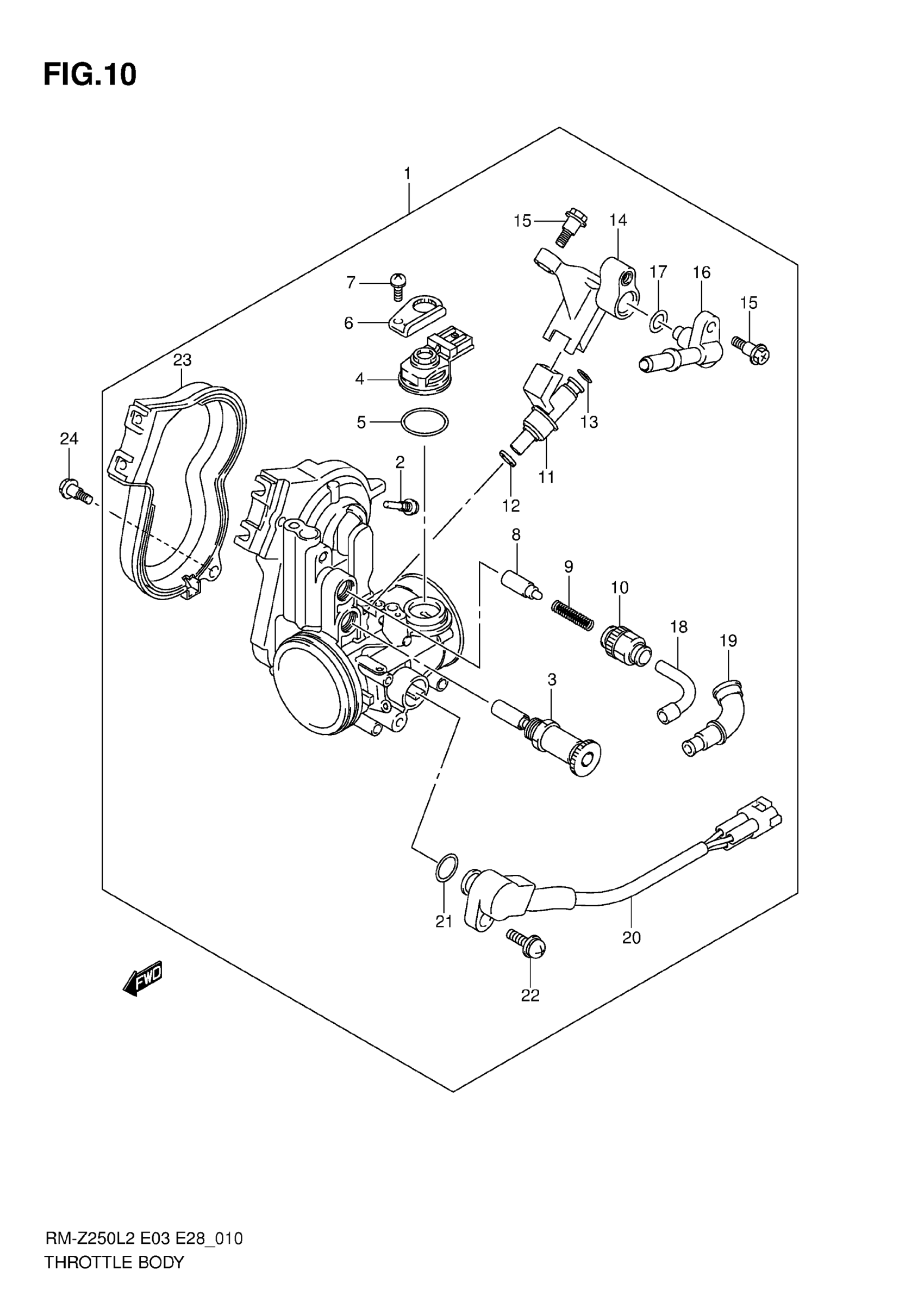

Suzuki RM-Z250L2 (2013) THROTTLE BODY Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 13041-49H01.

13041-49H02

Unavailable

2

SCREW, STOP

13296-10H00

Unavailable

3

STARTER VALVE

13410-28H00

$89.80

4

SENSOR, MAP

15620-05H00

$273.45

5

.O RING This part replaces 15621-05H00.

15621-05H01

$9.05

6

PLATE, STAY

13565-28H00

Unavailable

7

SCREW

13601-15F20

Unavailable

8

STARTER VALVE

13411-28H00

$41.68

9

SPRING

13271-45G00

$6.17

10

HOLDER, CABLE

13581-45G00

$3.62

11

INJECTOR ASSY

15710-49H00

$321.43

12

.RING,SEAL

15722-21H00

$11.25

13

.O-RING

15721-21H00

$9.09

14

FUEL PIPE

13471-49H00

Unavailable

15

SCREW

13452-28H00

$5.86

16

JOINT

13685-28H00

$40.82

17

.O-RING

15721-24F00

$9.09

18

GUIDE, CABLE

13579-28H00

$13.18

19

CAP

13681-45G00

$5.67

20

SENSOR ASSY, THROTTLE

13580-28H01

$246.47

21

O RING

13575-40F00

$4.09

22

SCREW

13605-28H00

Unavailable

23

COVER

13484-49H00

Unavailable

24

BOLT

13601-28H00

$3.78
