Description

Price

1

STEM, STEERING

51410-49H00

Unavailable

2

.BEARING (30X52X16) This part replaces 09265-30014.

09265-30035

$46.72

3

GUIDE, BRAKE HOSE

58621-37F80

$12.16

4

BOLT (6X20.5)

09111-06087

$2.71

5

BOLT

51328-37F80

$7.25

6

BEARING (30X52X16)

09265-30022

$78.03

7

NUT STEERING

51631-28E00

$28.88

8

HEAD, STEERING STEM

51310-10H11

Unavailable

9

BOLT

51328-37F80

$7.25

10

WASHER,STEM HEAD

51356-29E00

$15.29

11

NUT,STEM HEAD

51353-37F70

$40.35

12

HOLDER,HANDLE

56211-10H10

$85.28

13

BOLT, HANDLE HOLDER

51321-37F90

$6.19

14

HOLDER, HANDLE LOWER

56221-10H11

$122.58

15

CUSHION,RUBBER

56241-10H11

$43.88

16

SEAL,STEERING U This part replaces 51643-28H00.

51643-28H01

$23.63

17

BOLT,HANDLE HOLDER

56321-28H00

$13.07

18

SPACER

56243-10H11

$11.85

19

NUT This part replaces 08319-31108.

08319-31107

$2.73

20

WASHER

51632-49H00

Unavailable

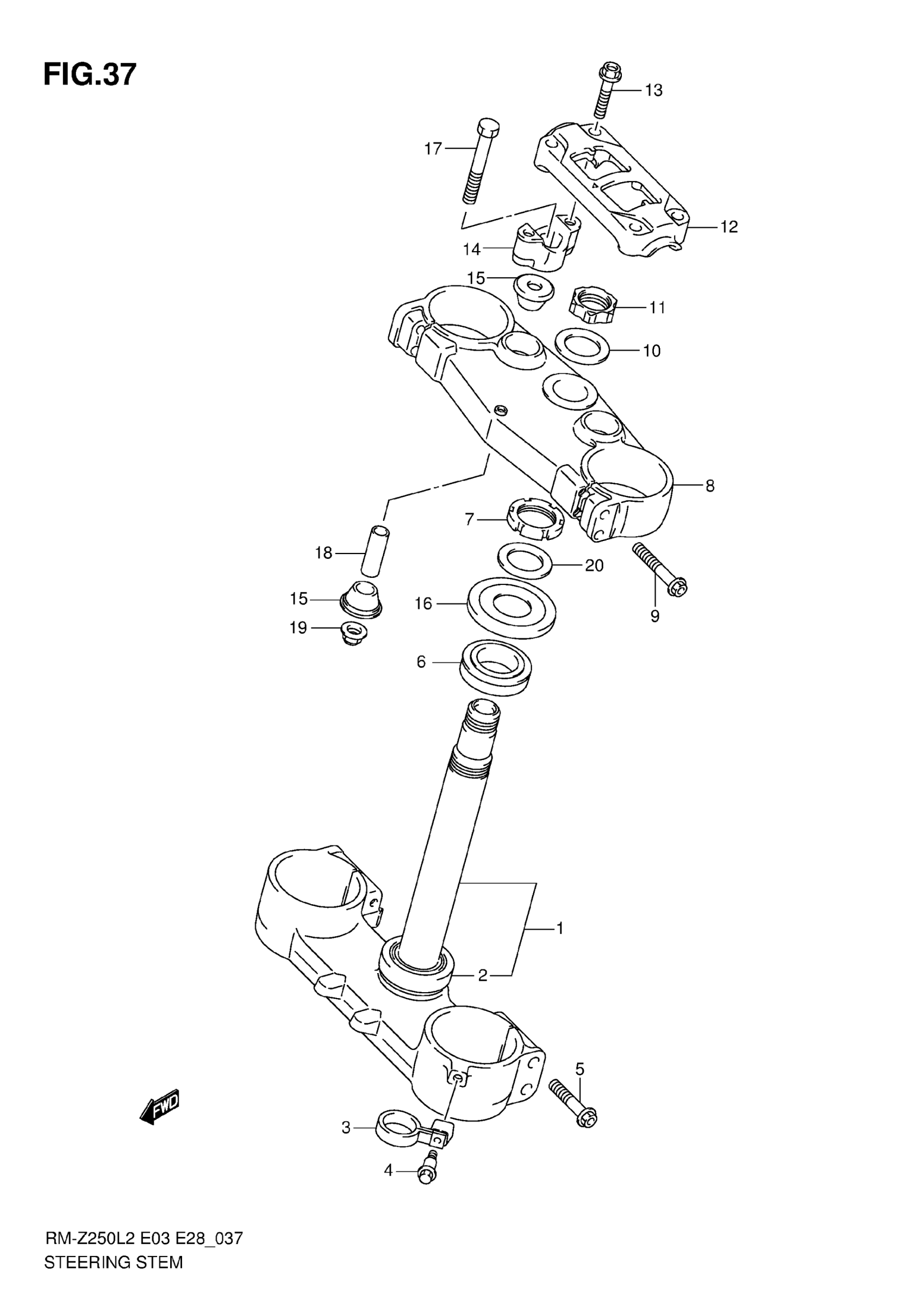

Suzuki RM-Z250L2 (2013) STEERING STEM Diagram

STEM, STEERING

.BEARING (30X52X16) This part replaces 09265-30014.

GUIDE, BRAKE HOSE

BOLT (6X20.5)

BOLT

BEARING (30X52X16)

NUT STEERING

HEAD, STEERING STEM

BOLT

WASHER,STEM HEAD

NUT,STEM HEAD

HOLDER,HANDLE

BOLT, HANDLE HOLDER

HOLDER, HANDLE LOWER

CUSHION,RUBBER

SEAL,STEERING U This part replaces 51643-28H00.

BOLT,HANDLE HOLDER

SPACER

NUT This part replaces 08319-31108.

WASHER
