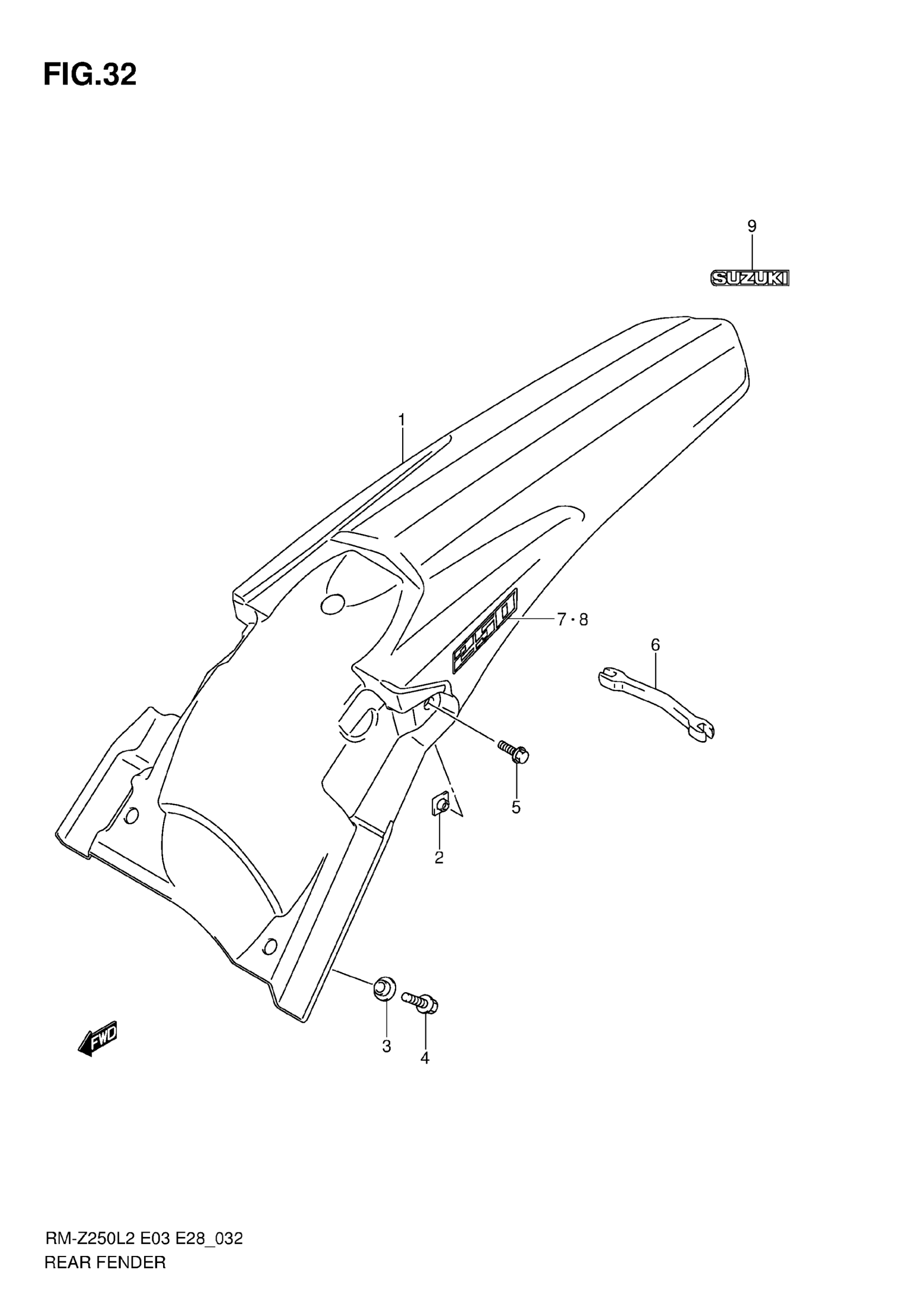

Suzuki RM-Z250L2 (2013) REAR FENDER Diagram

#

Description
Price

1

FENDER, REAR (YELLOW)

63111-49H01-YU1

$64.40

2

NUT, REAR FENDER REAR

63131-02J00

$13.18

3

WASHER, REAR FENDER FRONT

63191-28H00

$10.28

4

BOLT

01547-0620A

$2.03

5

BOLT (6X16)

01547-0616A

$2.03

6

SPANNER (6.4X6.8)

09813-00134

$18.48

7

TAPE, RH

68175-49H00-GY8

$17.37

8

TAPE, LH

68176-49H00-GY8

$17.37

9

EMBLEM,SUZUKI This part replaces 68131-21H00-019.

68131-21H01-019

$9.48
