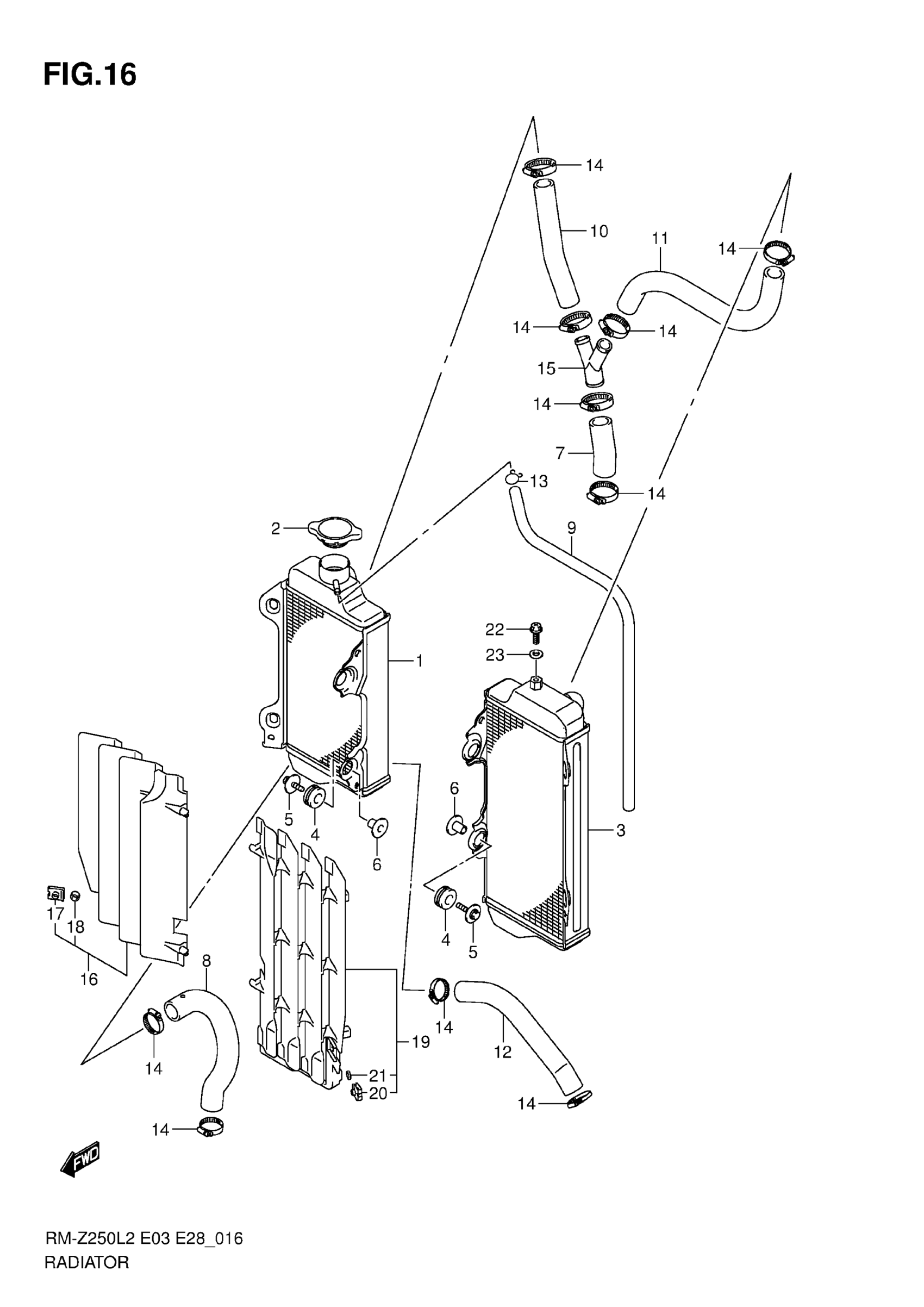

Suzuki RM-Z250L2 (2013) RADIATOR Diagram

#

Description
Price

1

RADIATOR, RH

17710-49H02

$598.50

2

CAP, RADIATOR (1.1)

17730-08J00

$42.50

3

RADIATOR, LH

17720-49H01

Unavailable

4

CUSHION, RADIATOR SUPPORT

17787-19A00

$3.56

5

BOLT (6X25)

09116-06186

$2.61

6

SPACER (6.5X10.5X14.1)

09180-06243

$5.46

7

HOSE, INLET NO.1

17851-49H10

$15.00

8

HOSE, OUTLET

17852-49H00

$20.13

9

HOSE (6X8X700)

09351-60801-700

Unavailable

10

HOSE, INLET NO.2

17853-49H10

$18.80

11

HOSE, INLET NO.3

17854-49H10

Unavailable

12

HOSE, JOINT LOWER

17855-49H00

Unavailable

13

CLIP

09401-07101

Unavailable

14

CLAMP

09402-28513

$6.88

15

JOINT, RADIATOR HOSE

17856-10H00

$8.60

16

LOUVER, RADIATOR, R

17801-49H00

$34.60

17

.NUT

09148-06017

$3.20

18

.SPACER (6.2X10X2.2)

09180-06129

$2.12

19

LOUVER, RADIATOR LH

17802-49H00

$35.25

20

.NUT

09148-06017

$3.20

21

.SPACER (6.2X10X2.2)

09180-06129

$2.12

22

BOLT, AIR RELEASE

17568-50F00

$4.76

23

GASKET (6.4X11.5X0.8)

09168-06026

$3.10
