Description

Price

1

HANDLEBAR This part replaces 56111-35G10.

56111-35G11

$249.60

2

PAD SET, HANDLEBAR

56170-35G20

Unavailable

3

CABLE ASSY,CLUT This part replaces 58210-49H10.

58210-49H11

$48.68

4

BRACKET, CLUTCH CABLE

58212-49H00

$24.52

5

BOLT (6X12)

01547-0612A

$2.03

6

CABLE SET, THROTTLE

58301-28H10

$127.05

7

GUIDE, THROTTLE CABLE

58311-49H00

Unavailable

8

SCREW (6X16)

09139-06139

$3.23

9

CABLE ASSY,HOT This part replaces 58900-28H00.

58900-28H01

$41.63

10

CLAMP (L:125)

09407-14403

$2.26

11

CLAMP (L:154)

09407-17403

$4.91

12

CLAMP

09403-18307

$3.03

13

CLAMP (L:145)

09407-14407

$3.57

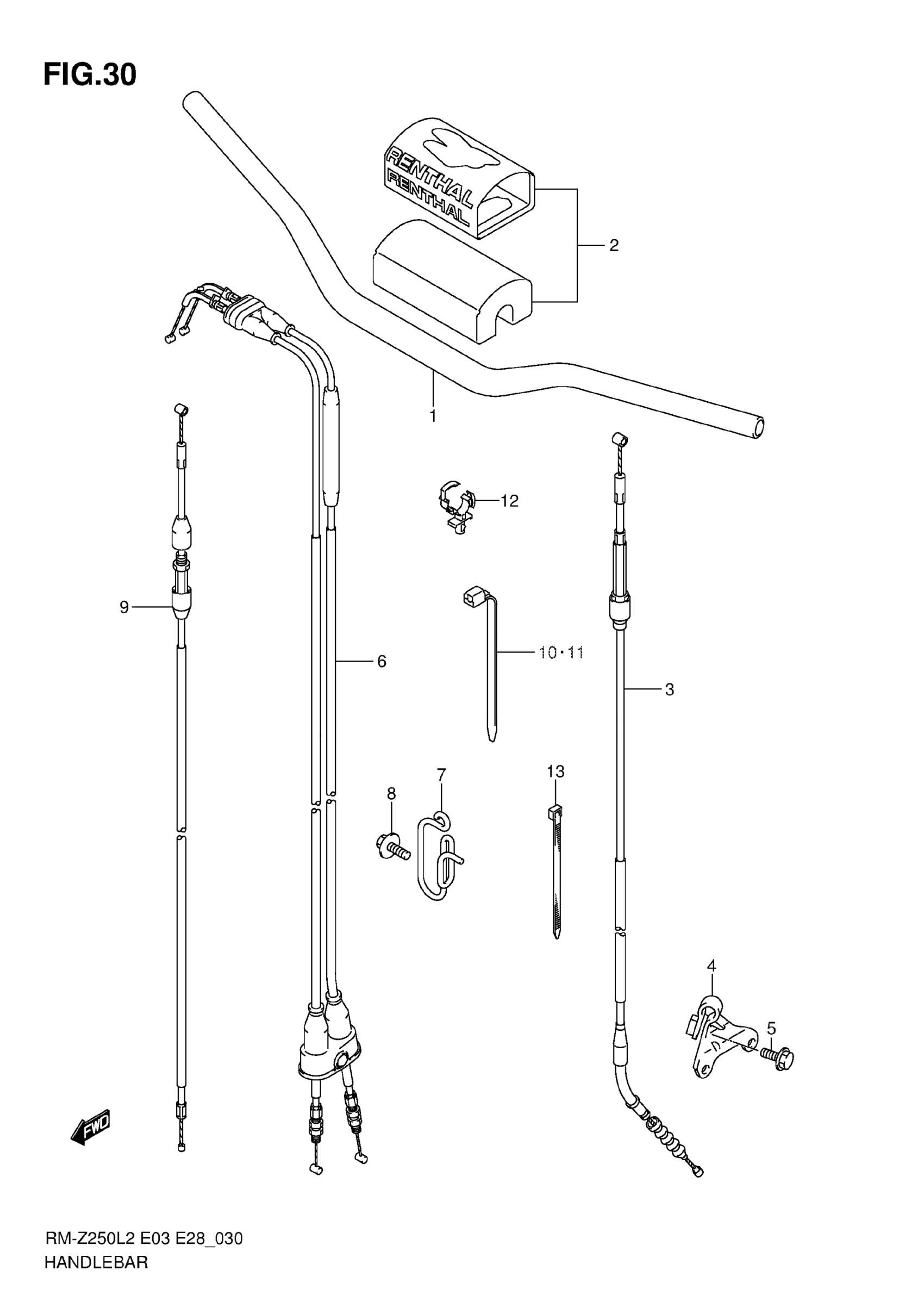

Suzuki RM-Z250L2 (2013) HANDLEBAR Diagram
